ReneWave perspective · Building protection
Hager is a building-electrical specialist. Our Best Value selection includes modular circuit breakers and residual-current devices, with exact references kept separate so that the pole count or current number never hides the actual protection function.
Explore our Hager products
Modular devices with distinct fault functions.
01 / Who they are
Hager began in Germany in 1955 with electrical-installation equipment and grew into a wider building-electrification group. A distinct solar-storage step came with the acquisition of E3/DC in 2017. E3/DC had developed residential storage systems in Germany since 2010, combining PV conversion, batteries and energy management. That group activity is separate from the Hager protection devices we list: a modular breaker or residual-current switch is not a storage system and does not inherit E3/DC battery-warranty terms.
The manufacturer’s corporate origins are not the manufacturing country of every supplied device. Read the exact label and documents.
Hager publishes rounded annual turnover despite being family owned. After expansion through 2023, group turnover returned to roughly its 2024 level in 2025. The figures include acquisitions and all building-electrification activities. Energy-management businesses widened its offer, while the protection devices in our catalog remain one part of that group.
| Year | Revenue |
|---|---|
| 2021 | $3.08 |
| 2022 | $2.95 |
| 2023 | $3.46 |
| 2024 | $3.25 |
| 2025 | $3.39 |
Whole Hager Group turnover, rounded as published, including acquired businesses. This is not the smaller environmental-reporting boundary. Amounts shown in USD billion. EUR and CNY amounts are converted using Federal Reserve annual-average rates; rounding and exchange rates affect comparisons.
The family business is founded in Germany. Distribution and protection precede its later solar-storage activities.
The acquisition adds home power stations combining inverter, battery and energy management. E3/DC’s own storage development dates to 2010.
Advizeo joins the group, adding software and services for commercial-building energy performance. This complements, rather than replaces, electrical protection hardware.
02 / Technology
Selected developments in the brand’s specialty, not a complete history or catalog.
Understand the differences between the relevant families. Broader manufacturer offerings and the products ReneWave lists are kept separate below.
Residual-current devices

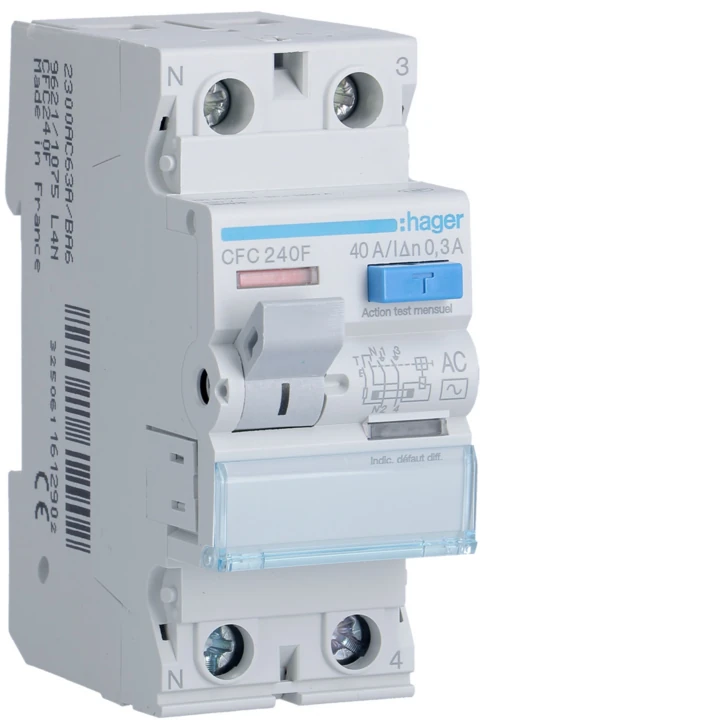

CFC225F, CFC240F, CFC263F, CFC440F and CFC463F in our catalog are 300 mA Type AC references with distinct pole and current ratings. CFC240F is a two-pole 40 A / 300 mA Type AC RCCB. Its 300 mA threshold is ten times a 30 mA threshold; this is not the same additional personal-protection function. An RCCB also needs coordinated overcurrent protection.
Leakage threshold is not the maximum load current.
Separate overcurrent protection remains necessary.
Reference-specific modular protection
These references distinguish pole arrangement and B or C trip behavior. The historical MJ716 reference is not replaced by a similarly named modern model. B and C curves change instantaneous trip behaviour, while the ampere rating concerns continuous current. A B-curve breaker is not exchanged for a C-curve solely because both say 16 A; motor starting and fault-disconnection conditions must be reviewed.
The full reference prevents a silent substitution.
The full model determines the protected poles, trip curve and breaking capacity.
Higher-current modular breakers

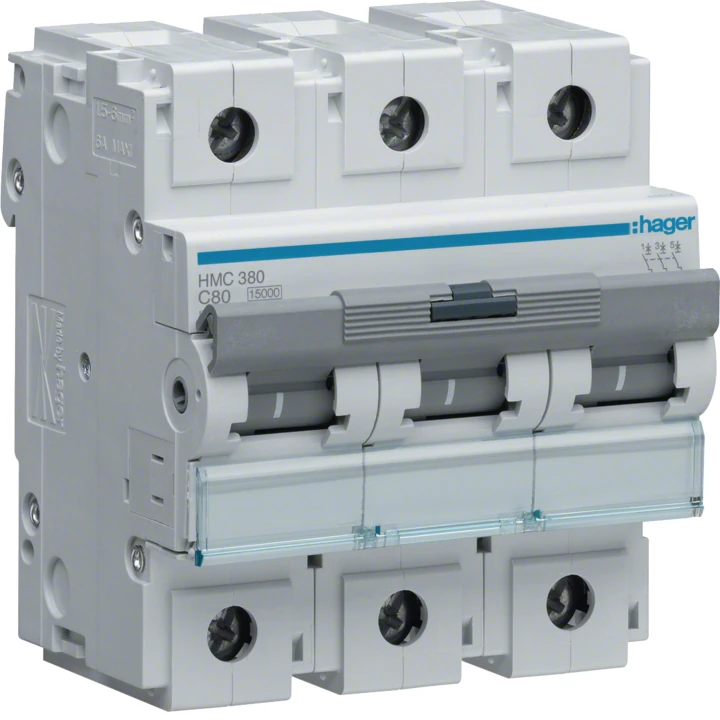

Our HMC380, HMC399 and HMK499 are exact C-curve modular references; pole arrangement and breaking ratings remain model-specific. HMC399 is three-pole, 125 A, C curve, with a 15 kA catalogue classification; HMK499 is a separate four-pole 125 A reference with a 30 kA classification. The applicable voltage and IEC rating must remain attached to that figure; these are modular devices, not automatically molded-case breakers.
The 125 A number describes current, not enclosure technology.
A high current rating alone does not turn a modular breaker into a molded-case breaker.
Short definitions for the names used in this guide.
A current rating alone does not establish function, fault protection or circuit suitability.
03 / What stands behind the brand
Best ValueA focused building-protection selection, not a universal ranking.
Our positioning applies to the selected range. The documented differences above explain the choice.
The company record describes a group built around building electrical systems, with a history dating to 1955.
The published records distinguish residual-current functions from modular circuit-breaker capacities.
The listed 300 mA Type AC RCCBs have a defined leakage role. We keep that threshold distinct from 30 mA additional personal protection and from a breaker’s overload protection, avoiding a misleading comparison based only on the housing.
Published characteristics are useful evidence, not a promise of trouble-free operation or fast local warranty handling. Newer models do not inherit decades of field history from the company’s age.
04 / In our catalog
Exact catalog references, with their own specifications and documents. Prices and availability are confirmed in your written quote.
CFC225F monitors leakage on 1P+N · 2P at 300 mA, Type AC. Its 25 A rating is the carrying current, not an overload-trip setting.
View product
CFC240F monitors leakage on 1P+N · 2P at 300 mA, Type AC. Its 40 A rating is the carrying current, not an overload-trip setting.
View product
CFC263F monitors leakage on 1P+N · 2P at 300 mA, Type AC. Its 63 A rating is the carrying current, not an overload-trip setting.
View product
CFC440F monitors leakage on 3P+N · 4P at 300 mA, Type AC. Its 40 A rating is the carrying current, not an overload-trip setting.
View product
CFC463F monitors leakage on 3P+N · 4P at 300 mA, Type AC. Its 63 A rating is the carrying current, not an overload-trip setting.
View product

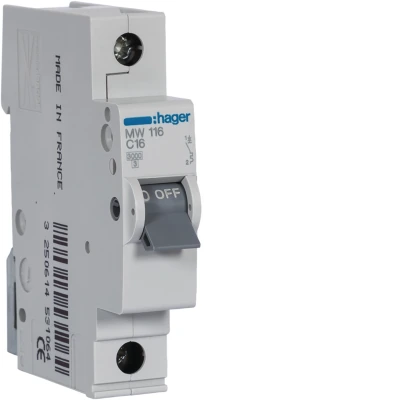

MW116 protects 1 poles against overloads and short circuits, with a C curve and 16 A rating. Match the circuit conductors and starting duty to this exact reference.
View product
MV225 protects 2 poles against overloads and short circuits, with a B curve and 25 A rating. Match the circuit conductors and starting duty to this exact reference.
View product
MV440 protects 4 poles against overloads and short circuits, with a B curve and 40 A rating. Match the circuit conductors and starting duty to this exact reference.
View product05 / Warranty & buyer questions
The exact reference, market and supplied terms govern coverage. A datasheet or compliance certificate is not itself a warranty.
A universal manufacturer warranty duration for the listed references was not verified. Product defects are assessed under the applicable supplied warranty; protection coordination, installation faults and misuse are separate matters.
Manufacturer product cover concerns qualifying defects in the supplied equipment. It does not establish the complete installation’s performance, an energy-yield guarantee or a fixed local claim-response time.
No. Their sensitivity and intended protective role are different. The listed 300 mA devices must not be presented as 30 mA additional personal protection.
These RCCBs need separate overcurrent protection. Do not confuse a conditional rating with an integrated breaker.
No. HMC399 and HMK499 are documented modular breakers.
