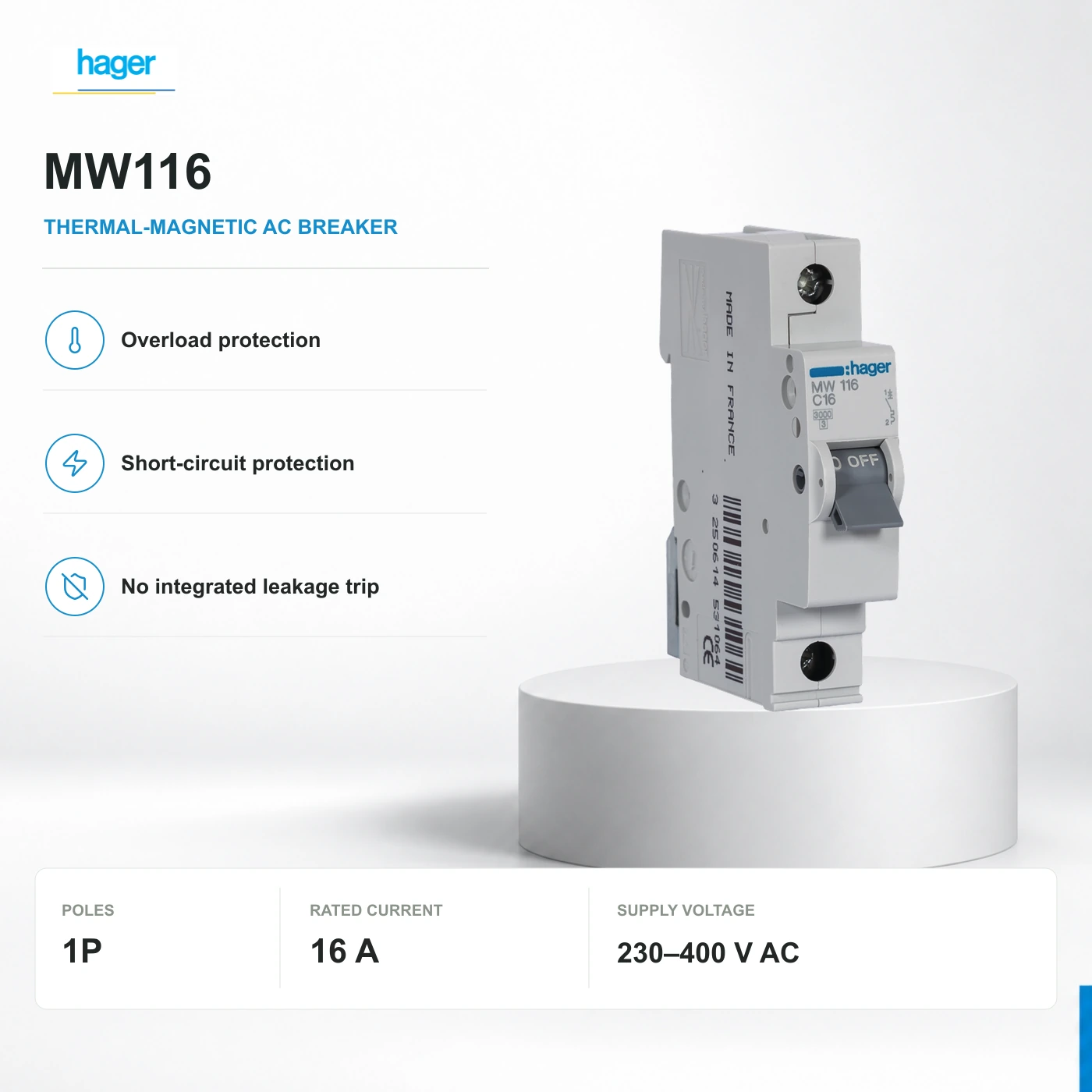

Hager MW116 · 1P · 16 A
Exact reference · MW116
MW116 protects 1 poles against overloads and short circuits, with a C curve and 16 A rating. Match the circuit conductors and starting duty to this exact reference.
- Protection function
- Thermal-magnetic breaker
- Pole arrangement
- 1P
- Rated current
- 16 A
Overload and short-circuit protection, without integrated residual-current protection. Select separate leakage protection where required.
Pricing confirmed by quote
Quote confirms reference and commercial terms; installation selection remains the installer’s responsibility.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
MW116 protects 1 poles against overloads and short circuits, with a C curve and 16 A rating. Match the circuit conductors and starting duty to this exact reference.
Relevant applications
- Selected commercial distribution or equipment circuits, matched to the documented supply and protection function.
Why ReneWave may shortlist it
- MW116 protects 1 poles against overloads and short circuits, with a C curve and 16 A rating. Match the circuit conductors and starting duty to this exact reference.
System position
AC protection: conceptual single-line view.
Overload and short-circuit protection, without integrated residual-current protection. Select separate leakage protection where required.
The closed device supplies L. Downstream branch protection remains separate. PE bypasses every switched pole. N also bypasses this phase-only breaker.
Read the technical explanation
Overload and short-circuit protection, without integrated residual-current protection. Select separate leakage protection where required.
02 · Specifications
Ratings, dimensions and practical consequence.
Device identity
- Hager reference
MW116
- Manufacturer EAN
3250614531163
- Protection function
Thermal-magnetic breaker
- Pole arrangement
1P
- Rated current
16 A
- Rated operational voltage
230–400 V AC
- Trip curve
C
- Neutral
Only the phase is switched and protected; neutral bypasses this one-pole device.
Electrical ratings
- Icn · IEC 60898-1
3 kA · 230 V AC · IEC 60898-1
- Ui
500 V
- Uimp
4 kV
- Frequency
50–60 Hz
- IP
IP20
Mounting and connections
- Modules / width
1 / 17.5 mm
- Dimensions H × W × D
83 × 17.5 × 70 mm
- Terminal torque
2.8 Nm
03 · Selection points
Four practical selection points.
Choose by circuit function, conductors and documented electrical limits.
- 01
Pole arrangement
Only the phase is switched and protected; neutral bypasses this one-pole device.
- 02
Current and protection function
Curve C: match starting currents and conductor protection to the 16 A rating. Ambient temperature affects the available continuous current; use the Hager derating table.
- 03
Voltage and fault capacity
Compare prospective fault current with the listed capacity at its stated voltage and standard. Do not substitute Icn, Icu or Ics for one another.
- 04
Mounting and connections
DIN-rail mounting, 1 modules / 17.5 mm wide. Follow the manufacturer's terminals and installation instructions. Nominal terminal torque: 2.8 Nm.
04 · Documentation
Keep the exact reference traceable.
Published documents for this exact reference support selection and handover.
Hager MV/MW EU declaration of conformityCertificate · International · English / French
05 · Complete the system
Accessories and adjacent equipment, in one request.
Separate equipment is selected for the installation; no automatic companions are added to your request.
No automatic companion selection. Separate protection and accessories are chosen for the installation.
