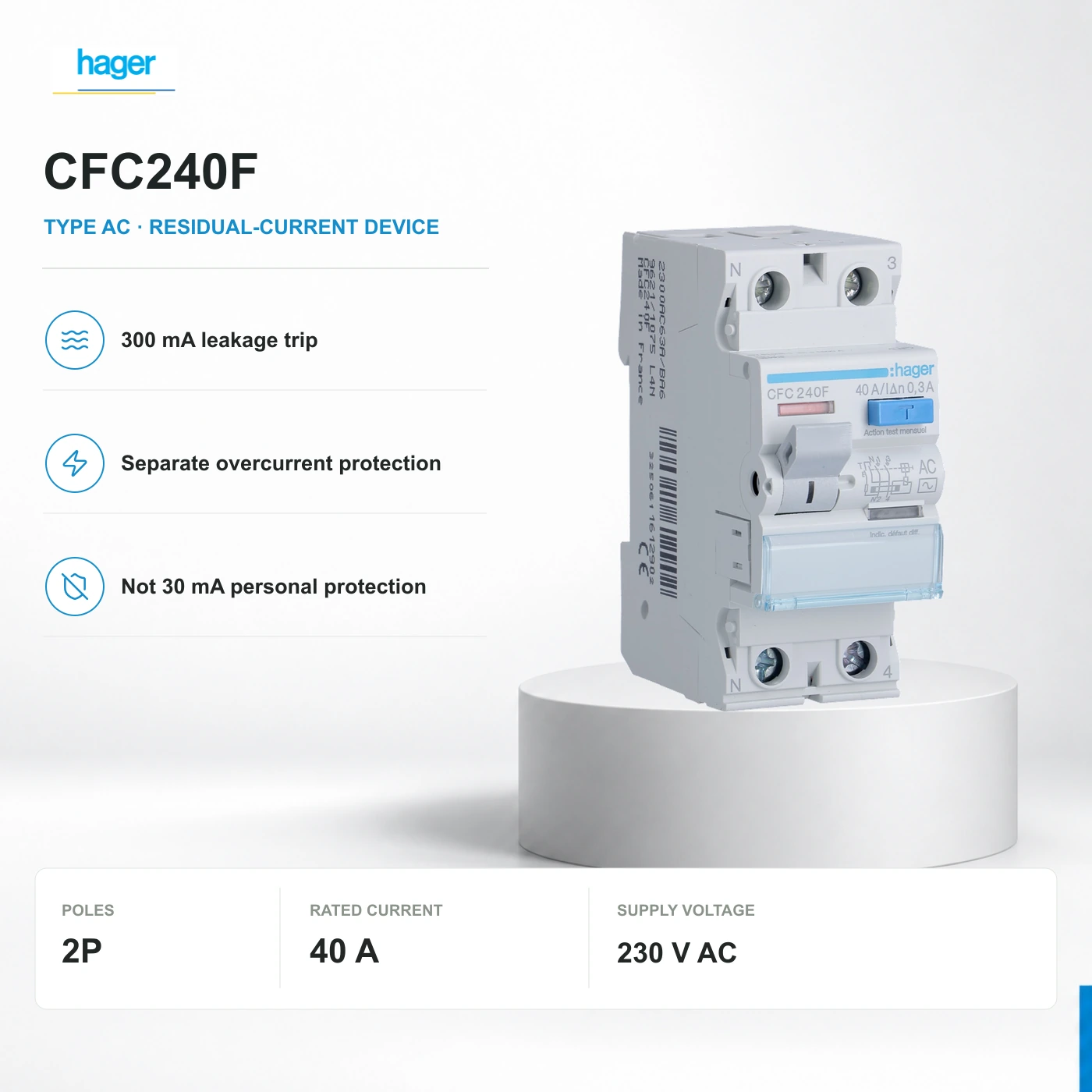

CFC240F: official Hager hardware view, with original manufacturer markings unchanged.
    CFC240F: official Hager hardware view, with original manufacturer markings unchanged.
    HagerBest Value

    Hager CFC240F · 1P+N · 2P · 40 A

    Exact reference · CFC240F

    CFC240F monitors leakage on 1P+N · 2P at 300 mA, Type AC. Its 40 A rating is the carrying current, not an overload-trip setting.

    Protection function
    Type AC RCCB
    Pole arrangement
    1P+N · 2P
    Rated current
    40 A

    Leakage protection only: no overload or short-circuit trip. Separate coordinated overcurrent protection is required. 300 mA is not the 30 mA additional personal protection level; Type AC detects sinusoidal AC residual current, not every electronic-load waveform.

    Pricing confirmed by quote

    Quote confirms reference and commercial terms; installation selection remains the installer’s responsibility.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    CFC240F monitors leakage on 1P+N · 2P at 300 mA, Type AC. Its 40 A rating is the carrying current, not an overload-trip setting.

    Relevant applications

    • Selected commercial distribution or equipment circuits, matched to the documented supply and protection function.

    Why ReneWave may shortlist it

    • CFC240F monitors leakage on 1P+N · 2P at 300 mA, Type AC. Its 40 A rating is the carrying current, not an overload-trip setting.

    System position

    AC protection: conceptual single-line view.

    Leakage protection only: no overload or short-circuit trip. Separate coordinated overcurrent protection is required. 300 mA is not the 30 mA additional personal protection level; Type AC detects sinusoidal AC residual current, not every electronic-load waveform.

    The closed device supplies L / N. A separate upstream device provides overcurrent protection. PE bypasses every switched pole.

    CFC240F monitors leakage on 1P+N · 2P at 300 mA, Type AC. Its 40 A rating is the carrying current, not an overload-trip setting. The closed device supplies L / N. A separate upstream device provides overcurrent protection. PE bypasses every switched pole.AC circuit supplyL / NOvercurrent protectionSeparately coordinatedCFC240F40 A · 300 mA · Type ACCommercial distributionSeparate branch protectionSelected site circuitsLoad / conductors selectedCFC240F monitors leakage on 1P+N · 2P at 300 mA, Type AC. Its 40 A rating is the carrying current, not an overload-trip setting. The closed device supplies L / N. A separate upstream device provides overcurrent protection. PE bypasses every switched pole.AC circuit supplyL / NOvercurrent protectionSeparately coordinatedCFC240F40 A · 300 mA · Type ACCommercial distributionSeparate branch protectionSelected site circuitsLoad / conductors selectedCFC240F monitors leakage on 1P+N · 2P at 300 mA, Type AC. Its 40 A rating is the carrying current, not an overload-trip setting. The closed device supplies L / N. A separate upstream device provides overcurrent protection. PE bypasses every switched pole.AC circuit supplyL / NOvercurrent protectionSeparately coordinatedCFC240F40 A · 300 mA · Type ACCommercial distributionSeparate branch protectionSelected site circuitsLoad / conductors selected

    Electrical powerPE · Always connected, never switchedInactive / conditional

    Conceptual system position, not an installation drawing. Separate equipment and commissioning must be verified.

    Read the technical explanation

    Leakage protection only: no overload or short-circuit trip. Separate coordinated overcurrent protection is required. 300 mA is not the 30 mA additional personal protection level; Type AC detects sinusoidal AC residual current, not every electronic-load waveform.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Device identity

    Hager reference

    CFC240F

    Manufacturer EAN

    3250611612902

    Protection function

    Type AC RCCB

    Pole arrangement

    1P+N · 2P

    Rated current

    40 A

    Rated operational voltage

    230 V AC

    Residual-current sensitivity

    300 mA · Type AC

    Neutral

    Neutral switches with the phase conductors and participates in residual-current measurement. No conductor has integrated overcurrent protection in this RCCB.

    Electrical ratings

    Inc · EN 61008-1

    6 kA · conditional, with coordinated overcurrent protection

    Making / breaking capacity

    1.5 kA

    Ui

    500 V

    Uimp

    4 kV

    Frequency

    50 Hz

    IP

    IP20

    Mounting and connections

    Modules / width

    2 / 35 mm

    Dimensions H × W × D

    83 × 35 × 70 mm

    Terminal torque

    2.8 Nm

    03 · Selection points

    Four practical selection points.

    Choose by circuit function, conductors and documented electrical limits.

    1. 01

      Pole arrangement

      Neutral switches with the phase conductors and participates in residual-current measurement. No conductor has integrated overcurrent protection in this RCCB.

    2. 02

      Current and protection function

      CFC240F monitors leakage on 1P+N · 2P at 300 mA, Type AC. Its 40 A rating is the carrying current, not an overload-trip setting.

    3. 03

      Voltage and fault capacity

      Inc 6 kA is a conditional short-circuit rating under EN 61008-1 with coordinated upstream protection, not an independent Icn breaker rating. The datasheet does not give a separate voltage for Inc.

    4. 04

      Mounting and connections

      DIN-rail mounting, 2 modules / 35 mm wide. Follow the manufacturer's terminals and installation instructions. Nominal terminal torque: 2.8 Nm.

    04 · Documentation

    Keep the exact reference traceable.

    Published documents for this exact reference support selection and handover.

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Separate equipment is selected for the installation; no automatic companions are added to your request.

    No automatic companion selection. Separate protection and accessories are chosen for the installation.
