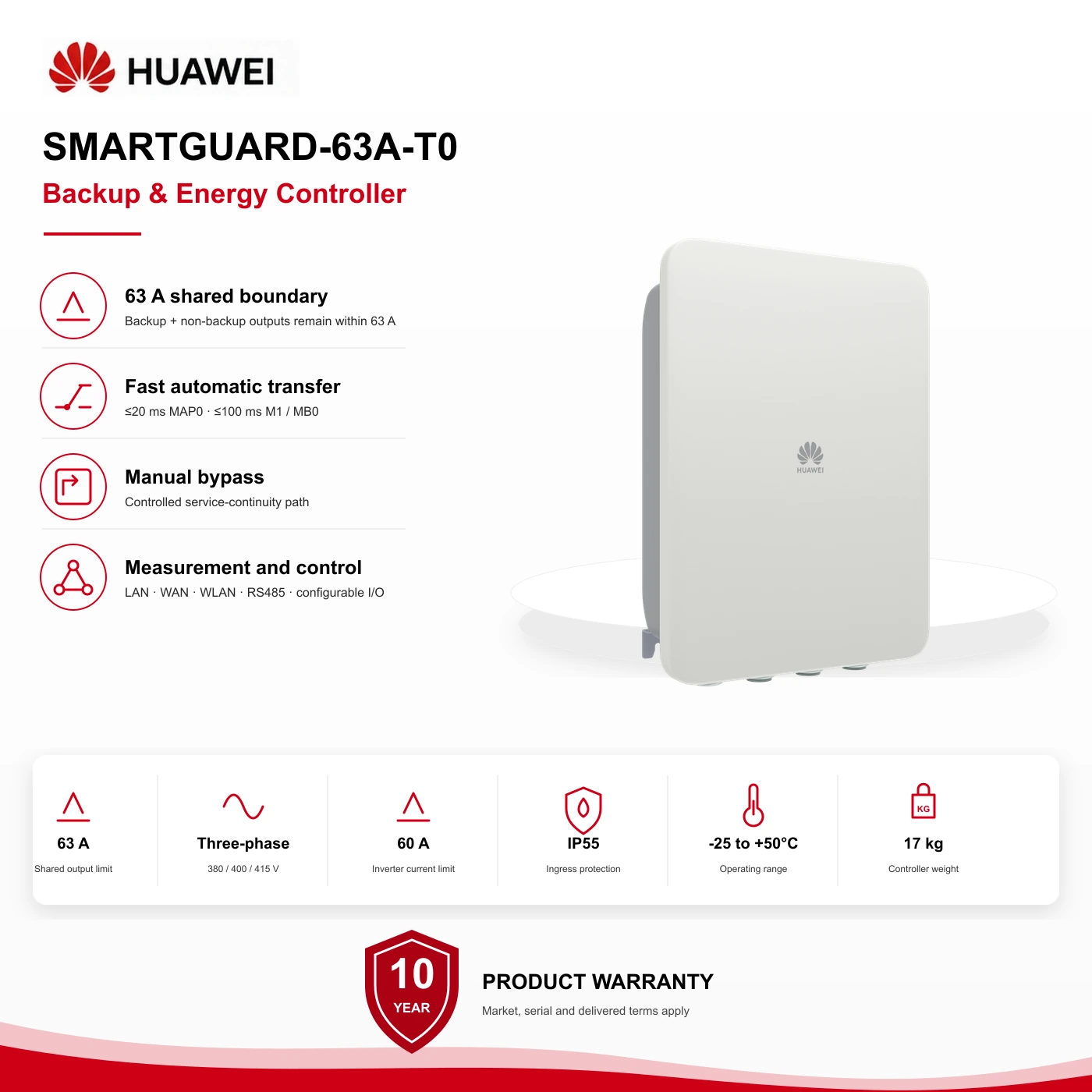

Huawei SmartGuard-63A-T0 front presentation
    Front view · exact door proportions, lower cable entries and the small centered Huawei mark are preserved from the verified official HD hardware pack.
    Huawei FusionSolarPremium

    Huawei SmartGuard 63 A Three-Phase Backup & Energy Controller

    Exact reference · SMARTGUARD-63A-T0

    The switching, measurement and energy-control layer between the utility, compatible Huawei inverter, selected backup circuits and ordinary non-backup distribution.

    Managed current boundary
    63 A

    Backup and non-backup output currents together must remain within 63 A.

    Inverter current boundary
    60 A maximum

    The connected compatible inverter and conductors must stay within the documented input limit.

    Automatic transfer
    ≤20 ms MAP0 · ≤100 ms M1 / MB0

    The exact inverter, firmware, settings and architecture determine the applicable condition.

    Service architecture
    380 / 400 / 415 V · L1/L2/L3/N+PE

    Phase availability during backup still depends on the inverter and switching-device combination.

    Measurement and control
    LAN · WAN · WLAN · RS485 · I/O

    Commissioning ownership and project records remain part of handover.

    Do not select SmartGuard from 63 A alone. Confirm inverter and firmware support, service and load allocation, storage architecture, phase-specific backup behavior and commissioning records.

    Pricing confirmed by quote

    The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    SmartGuard routes and measures power between the utility, a compatible Huawei inverter and separated site circuits. It detects outages and isolates the utility before supported backup operation. It is not an inverter, battery, charger or unrestricted whole-site backup device.

    Relevant applications

    • Compatible Huawei MAP0 backup systems
    • Compatible Huawei M1 or MB0 backup systems
    • Sites requiring measured separation of backup and non-backup circuits

    Why ReneWave may shortlist it

    • Combines automatic switching, manual bypass and energy measurement.
    • Maintains distinct backup and non-backup outputs.
    • Supports FusionSolar-connected commissioning and monitoring.

    Built-in capabilities

    Four functions, read before the headline specifications.

    Switches the supported supply path

    Detects utility loss and isolates the grid before supported backup operation.

    Transfer performance depends on the exact compatible inverter, firmware and settings.

    Measures site energy flow

    Integrated measurement supports compatible Huawei energy management.

    Huawei publishes ±1% energy-measurement accuracy under stated conditions.

    Separates protected circuits

    Backup and non-backup outputs remain distinct inside one controlled distribution boundary.

    Their combined output current remains limited to 63 A.

    Provides manual bypass

    A manual path supports controlled service continuity.

    Bypass use and isolation follow the approved wiring and service procedure.

    System position

    Selected backup circuits, separately controlled.

    Backup phase availability and capacity are established by the exact inverter and SmartGuard combination. MB0 retains its selected single-phase backup limitation.

    Utility power enters SmartGuard and serves both the selected backup distribution and ordinary non-backup loads within the shared 63 A boundary.

    SmartGuard switches and measures power between utility, a compatible Huawei inverter, selected backup distribution and ordinary non-backup loads. Generator support appears only through a separate approved ATS. The diagram shows no grid export and no power conversion inside SmartGuard. Utility power enters SmartGuard and serves both the selected backup distribution and ordinary non-backup loads within the shared 63 A boundary.Utility supplydirect controlled inputSmartGuard 63A-T0switching · measurement · controlSelected backup distributionsupported circuits onlyBackup loadsphase limits applyCompatible Huawei inverterpower conversion separateCompatible storageseparate equipmentGeneratorseparate equipmentApproved ATSseparate source selectionNon-backup loadsordinary distributionNon-backup distributionSeparate ordinary circuitsSmartGuard switches and measures power between utility, a compatible Huawei inverter, selected backup distribution and ordinary non-backup loads. Generator support appears only through a separate approved ATS. The diagram shows no grid export and no power conversion inside SmartGuard. Utility power enters SmartGuard and serves both the selected backup distribution and ordinary non-backup loads within the shared 63 A boundary.Utility supplydirect controlled inputSmartGuard 63A-T0switching · measurement · controlSelected backup distributionsupported circuits onlyBackup loadsphase limits applyCompatible Huawei inverterpower conversion separateCompatible storageseparate equipmentGeneratorseparate equipmentApproved ATSseparate source selectionNon-backup loadsordinary distributionNon-backup distributionSeparate ordinary circuitsSmartGuard switches and measures power between utility, a compatible Huawei inverter, selected backup distribution and ordinary non-backup loads. Generator support appears only through a separate approved ATS. The diagram shows no grid export and no power conversion inside SmartGuard. Utility power enters SmartGuard and serves both the selected backup distribution and ordinary non-backup loads within the shared 63 A boundary.Utility supplycontrolled inputSmartGuard-63A-T0switching + measurementSelected backup distributionsupported circuits onlyBackup loadsphase limits applyCompatible Huawei inverterconversion separateCompatible storageseparate equipmentGeneratorseparate equipmentApproved ATSseparate equipmentNon-backup loadsordinary distributionNon-backup distributionSeparate ordinary circuits

    Electrical powerInactive / conditional

    Conceptual system position, not an installation drawing. Separate equipment and commissioning must be verified.

    Read the technical explanation

    The switching, measurement and energy-control layer for a reviewed Huawei backup architecture.

    SmartGuard separates selected backup circuits from ordinary non-backup distribution, detects utility loss and isolates the grid before supported backup operation. It performs no power conversion.

    System selection

    The exact inverter, firmware, storage, phase-specific backup behavior, protection, load allocation and any generator ATS are confirmed together before quotation.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Electrical boundaries

    System

    Three-phase L1/L2/L3/N+PE

    Nominal voltage

    380 / 400 / 415 V

    Maximum grid current

    63 A

    Maximum inverter current

    60 A

    Maximum backup output

    63 A

    Combined output boundary

    Backup + non-backup ≤63 A

    Switching and control

    MAP0 transfer condition

    ≤20 ms with compatible equipment

    M1 / MB0 transfer condition

    ≤100 ms with compatible equipment

    Bypass

    Manual bypass

    Measurement

    Integrated · published ±1% accuracy

    Communications

    LAN / WAN / WLAN / RS485 / configurable I/O

    Enclosure

    Dimensions

    490 × 600 × 170 mm

    Weight

    17 kg without mounting plate

    Ingress protection

    IP55

    Cooling

    Natural convection

    Operating temperature

    -25°C to +50°C · derating applies

    03 · Confirm before quotation

    Four checks before this reference is quoted.

    ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.

    1. 01

      Inverter and firmware

      Confirm the exact MAP0, M1 or MB0 reference, firmware, parallel limits and applicable transfer condition.

    2. 02

      Service and load allocation

      Confirm 380/400/415 V service, selected circuits, phase availability and the combined 63 A output boundary.

    3. 03

      Storage and backup architecture

      Confirm storage support, phase-specific backup capacity, protection and any separate approved generator ATS.

    4. 04

      Installation and records

      Confirm enclosure location, derating, bypass procedure, wiring, FusionSolar ownership, firmware and delivered warranty record.

    04 · Documents & warranty

    Keep the exact reference traceable.

    Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.

    Manufacturer warranty reference

    10 years

    • Manufacturer product warranty subject to Huawei policy eligibility, market, serial number, sale date and delivered terms.
    • ReneWave Customer Care manages the retained documents and case route.
    Customer Care

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.

    No additional equipment is published for this reference. Required accessories are confirmed during quotation.
