Manages cluster connections
Connects the STACK100 battery cluster to a compatible high-voltage inverter interface.
Operating range: 134.4–864 V.
DynessBest Value

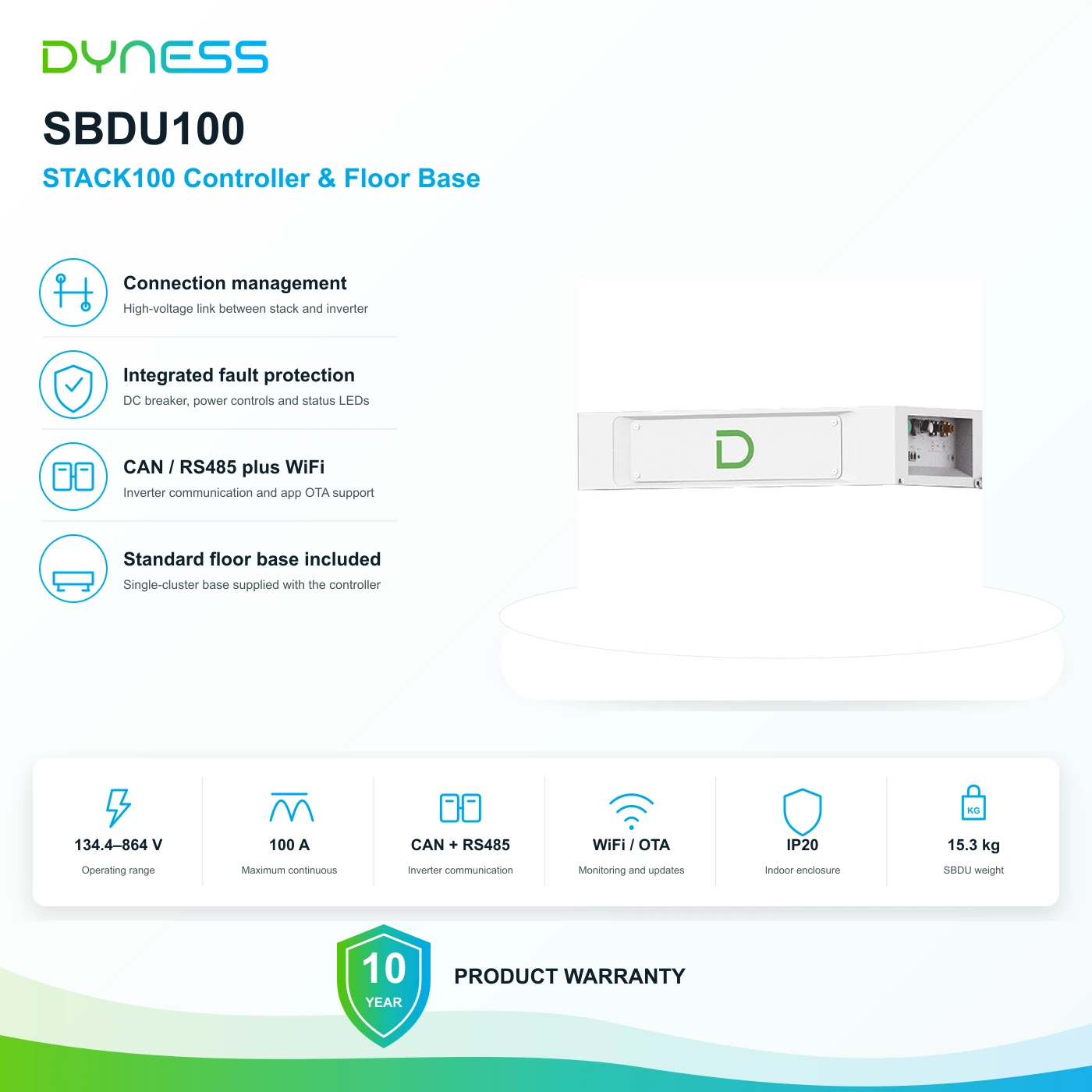

Dyness SBDU100 STACK100 High-Voltage Battery Controller & Floor Base
Exact reference · SBDU100
The protection, communication and high-voltage connection layer for a Dyness STACK100 cluster, supplied with one standard floor base.
- Product role
- Battery distribution / control unit
The SBDU100 contains no cells and contributes no energy capacity.
- Operating range
- 134.4–864 V
The actual cluster voltage depends on the selected 3–15-module stack and inverter window.
- Continuous current
- 100 A maximum
The recommended complete-stack operating current is 50 A; conductors and protection must suit the commissioned design.
- Included package
- SBDU100 + standard floor base
No S51100 battery module is included.
- Installation boundary
- IP20 · indoor
Use a suitable indoor location with documented support, restraint, clearances and environmental conditions.
Do not select this controller from voltage range or STACK100 branding alone. Confirm module count, inverter protocol, firmware, cluster voltage, current, standard-versus-expansion base, indoor installation and commissioning records.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
The SBDU100 sits above three to fifteen separately ordered S51100 modules and provides the cluster high-voltage connection, integrated DC breaker, status indication and inverter communications. The supplied standard floor base is physical mounting and circuit-connection equipment for one cluster; it is not a battery module.
Relevant applications
- Indoor commercial high-voltage storage systems
- Single STACK100 clusters using 3–15 S51100 modules
- Multi-cluster projects using the documented expansion-base and communication architecture
Why ReneWave may shortlist it
- Provides the STACK100 cluster DC breaker, power controls and status indicators.
- Communicates with a separately validated inverter through CAN or RS485.
- Includes the standard floor base required for a single-cluster installation.
Built-in capabilities
Four functions, read before the headline specifications.
Provides fault protection
Includes the documented DC breaker, power controls and status indicators.
The SBDU maximum continuous-current boundary is 100 A.
Coordinates communications
Provides CAN and RS485 inverter links with WiFi and app OTA support.
Protocol, firmware, cable and pinout remain inverter-specific.
Coordinates 3–15 modules
One SBDU100 manages a documented S51100 module stack.
Multi-cluster expansion requires separate expansion-base equipment and commissioning.
System position
Where this controller sits in a STACK100 storage system.
The SBDU100 connects separate S51100 modules to a compatible high-voltage inverter. It contains no cells, performs no AC conversion and cannot supply loads by itself. Physical package: one standard STACK100 floor base is included. It supports a single cluster and is not an electrical-flow node.
PV supplies protected site loads through the compatible inverter. The STACK100 cluster remains idle.
Read the technical explanation
The protection, communication and high-voltage connection layer for a Dyness STACK100 cluster.
The supplied package contains one SBDU100 battery distribution/control unit and one standard STACK100 floor base. It contains no battery cells or energy capacity. A working cluster requires three to fifteen separately ordered S51100 modules and a validated high-voltage inverter/charger.
Base and expansion boundary
The standard base supports one cluster. Multi-cluster expansion requires the documented expansion-base conversion, communication and commissioning architecture; it is not an arbitrary parallel connection.
02 · Specifications
Ratings, dimensions and practical consequence.
SBDU100 controller
- Operating range
134.4–864 V
- Maximum continuous current
100 A
- Communication
CAN / RS485 · WiFi / app OTA
- Integrated equipment
DC breaker · power controls · status indicators
- Dimensions
590 × 390 × 133 mm
- Weight
15.3 kg
- Enclosure
IP20 · indoor
Included standard base
- Package
1 × standard STACK100 floor base
- Dimensions
590 × 390 × 100 mm
- Weight
6.7 kg
- Boundary
Single-cluster base; expansion uses the documented expansion-base arrangement
Complete STACK100 dependency
- Separate modules required
3–15 × S51100
- Nominal energy
15.36–76.8 kWh
- Usable energy
14.592–72.96 kWh
- Current
50 A recommended · 100 A continuous · 125 A for 2 minutes at 25°C
- Cluster expansion
Up to 12 clusters with documented expansion equipment and commissioning
03 · Confirm before quotation
Four checks before this reference is quoted.
ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.
- 01
Stack composition
Confirm one SBDU100, 3–15 S51100 modules and the correct standard or documented expansion-base arrangement.
- 02
Inverter and BMS communication
Confirm exact inverter model, high-voltage window, supported Dyness protocol, firmware, cable and pinout.
- 03
Current and cluster design
Confirm 50 A recommended, 100 A continuous and 125 A two-minute limits, plus conductors, breaker and multi-cluster architecture.
- 04
Installation and records
Confirm IP20 indoor conditions, floor support, wall restraint, clearances, grounding, WiFi, serials and commissioning records.
04 · Documents & warranty
Keep the exact reference traceable.
Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.
Dyness STACK100 Datasheetdatasheet · Global technical record · English2026-05-20 · product family
Dyness STACK100 User Manualmanual · Global · EnglishV2.9 · 2025-07 · product family
Dyness STACK100 Inverter Compatibility Listcompatibility · Global · English2026-08-25 · product family
Dyness STACK100 Component Warrantywarranty · Worldwide manufacturer terms · English202410 · published 2025-02 · exact reference
Manufacturer warranty reference
10 years
- The retained component warranty explicitly lists SBDU100 and Stack100 Base
- Exact serial, communication state, installation and delivered warranty terms control
