Stores 5.12 kWh nominal energy
One S51100 contributes 4.864 kWh usable energy under Dyness test conditions.
A complete STACK100 cluster requires three to fifteen modules.
DynessBest Value

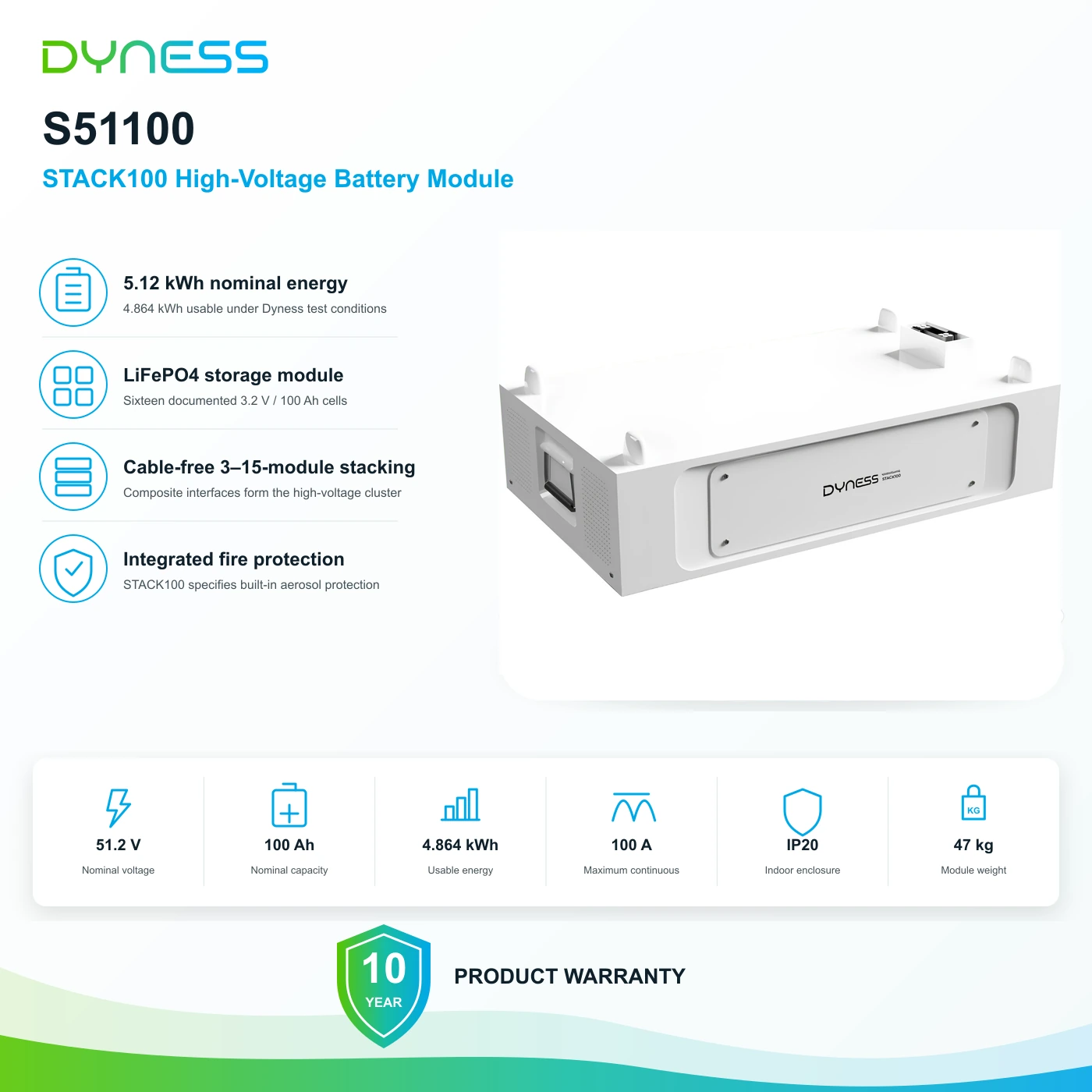

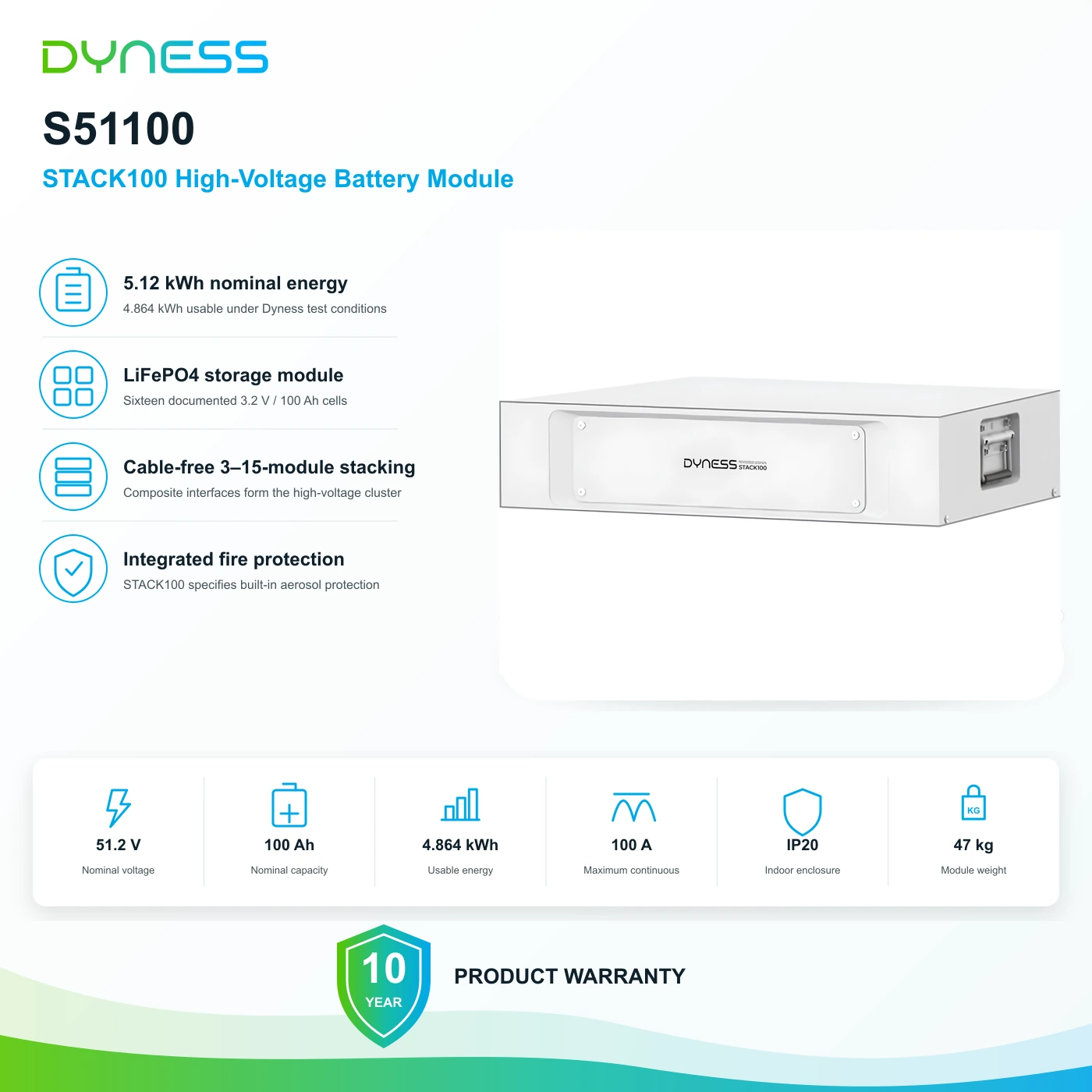

Dyness S51100 STACK100 5.12 kWh High-Voltage Battery Module
Exact reference · S51100
Five kilowatt-hours of modular LiFePO4 storage for a controlled Dyness STACK100 high-voltage cluster.
- Module energy
- 5.12 kWh nominal · 4.864 kWh usable
Complete cluster energy depends on using three to fifteen modules under Dyness test conditions.
- Module electrical rating
- 51.2 V · 100 Ah
This is one series module inside a high-voltage stack, not a standalone 48 V battery.
- Current limits
- 50 A recommended · 100 A continuous
The published 125 A peak applies for two minutes at 25°C.
- Required architecture
- 3–15 S51100 + SBDU100
The module cannot operate or connect to an inverter independently.
- Installation boundary
- IP20 · indoor
Use a clean, supported and environmentally suitable indoor location.
Do not select this module from 5.12 kWh, 51.2 V or STACK100 branding alone. Confirm the 3–15-module series stack, SBDU100, base architecture, inverter protocol and firmware, current limits, indoor environment and commissioning records.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
The S51100 is the cell-containing storage module in a Dyness STACK100 cluster. Three to fifteen modules connect in series through their documented composite interfaces and operate behind the mandatory SBDU100 controller and a separately validated high-voltage inverter.
Relevant applications
- Indoor commercial high-voltage storage systems
- STACK100 clusters requiring 3–15 S51100 modules
- Projects retaining exact inverter, module, controller and commissioning records
Why ReneWave may shortlist it
- Adds 5.12 kWh nominal energy per documented STACK100 module.
- Uses LiFePO4 cells and a cable-free stacking interface.
- Supports a controlled 15.36–76.8 kWh cluster behind SBDU100.
Built-in capabilities
Four functions, read before the headline specifications.
Contains LiFePO4 cells
Sixteen 3.2 V / 100 Ah cells form the documented 51.2 V module.

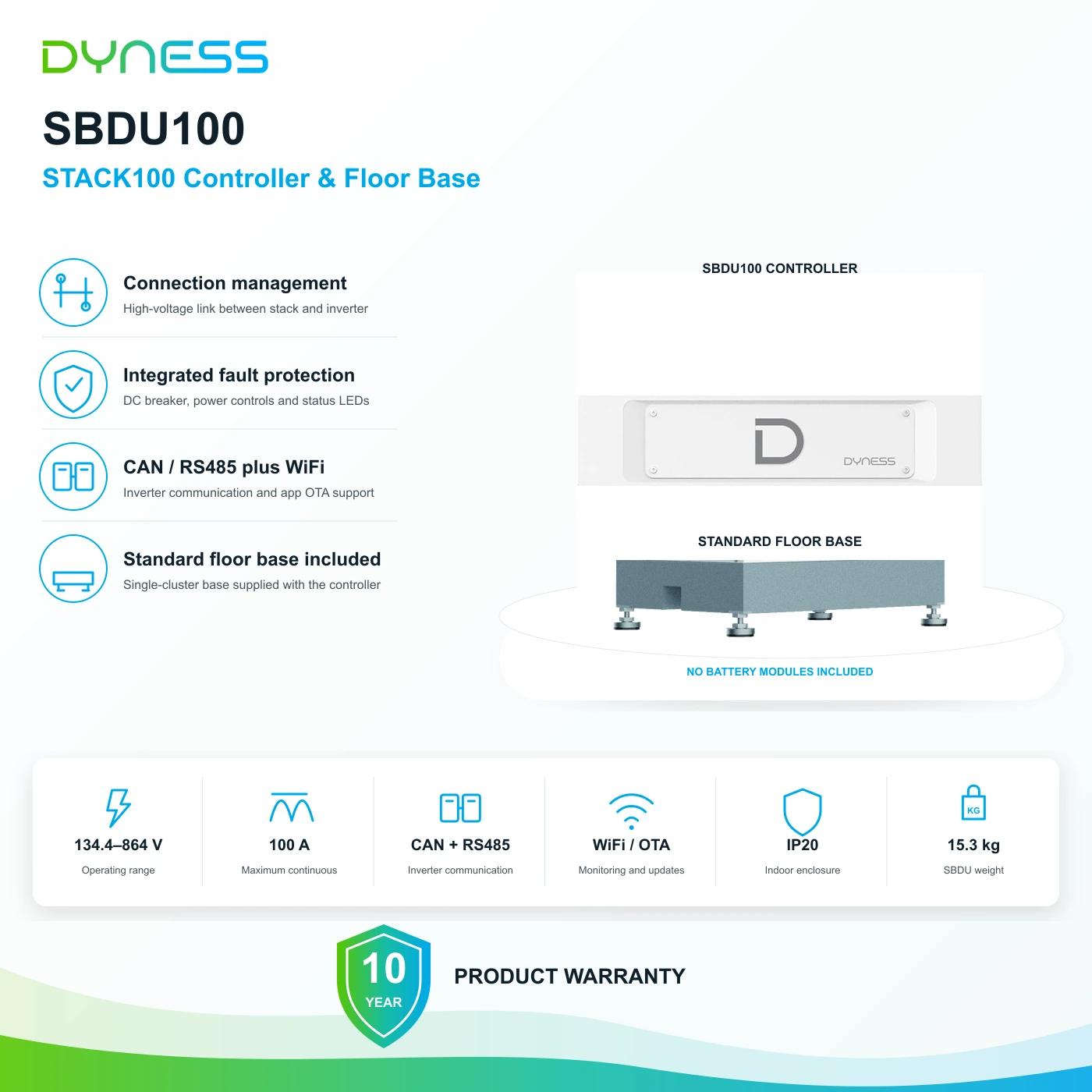

The SBDU100, not this module, provides cluster control and inverter communication.
Uses cable-free series stacking
Male and female composite interfaces connect modules within the reviewed stack.
Base arrangement and locating features must follow the installation manual.
Adds integrated fire protection
The current STACK100 record specifies a built-in aerosol fire extinguisher.
Room-level fire protection and installation requirements remain separate.

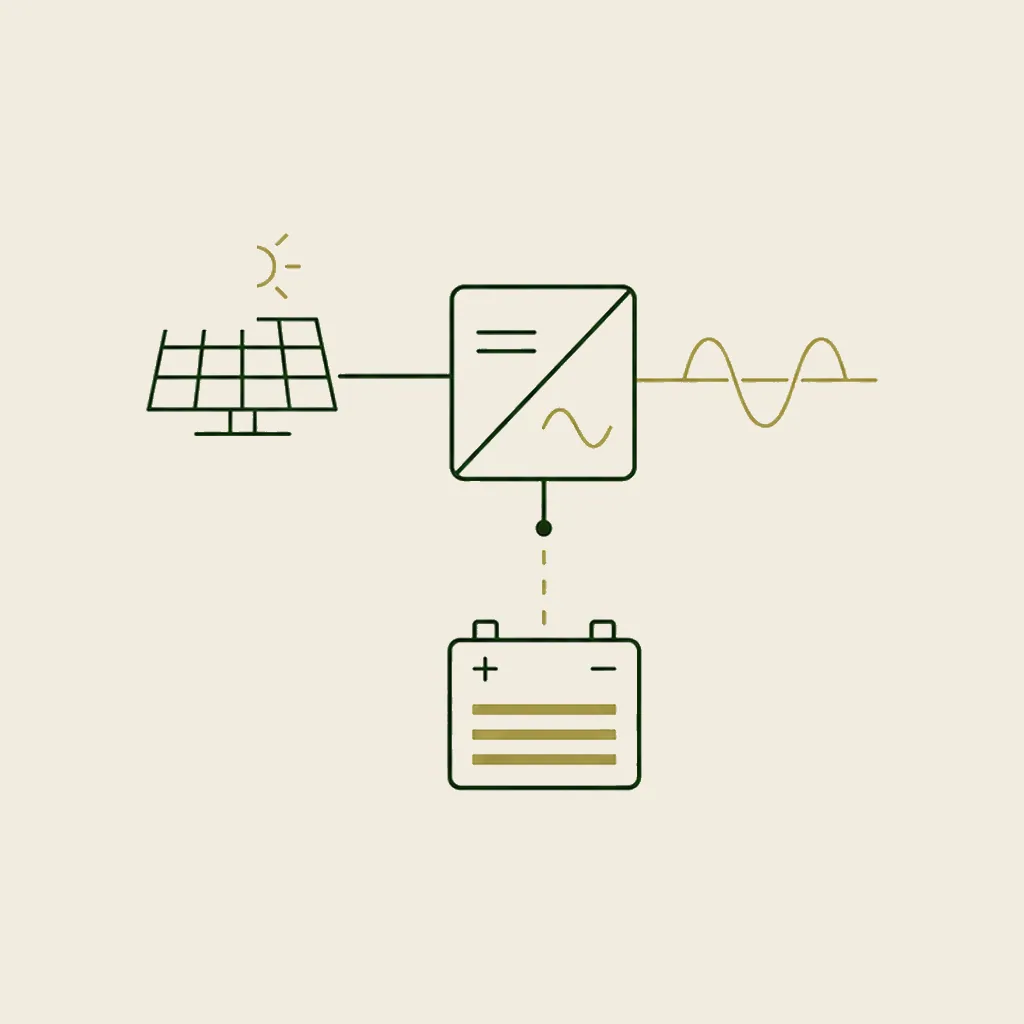

System position
Where this battery module sits in a STACK100 storage system.
Three to fifteen S51100 modules store energy behind the required SBDU100 and a compatible high-voltage inverter. One module cannot connect to AC loads or operate independently. Physical equipment: the required standard or documented expansion base is separate from an S51100 module and does not act as an electrical-flow node.
PV supplies protected site loads through the compatible inverter while the STACK100 cluster remains idle.
Read the technical explanation
Five kilowatt-hours of modular LiFePO4 storage for a controlled Dyness STACK100 high-voltage cluster.
The S51100 contains the battery cells and contributes 5.12 kWh nominal and 4.864 kWh usable energy. It is not a standalone low-voltage battery. Three to fifteen modules form a series stack behind one required SBDU100 and a separately validated high-voltage inverter.
System boundary
The correct base architecture, inverter voltage window, communication protocol, firmware, current limits, indoor installation and commissioning record are confirmed before quotation.
02 · Specifications
Ratings, dimensions and practical consequence.
S51100 battery module
- Cell technology
LiFePO4 · 16 × 3.2 V / 100 Ah cells
- Nominal energy
5.12 kWh
- Usable energy
4.864 kWh
- Nominal voltage
51.2 V
- Nominal capacity
100 Ah
- Dimensions
590 × 390 × 133.5 mm
- Weight
47 kg
- Enclosure
IP20 · indoor
Current and power boundaries
- Recommended current
50 A · 0.5C
- Maximum continuous current
100 A · 1C
- Peak discharge
125 A for 2 minutes at 25°C
- Recommended power
2.56 kW charge / discharge
- Maximum power
5.12 kW charge / discharge
Complete STACK100 dependency
- Module count
3–15 × S51100
- Required controller
1 × SBDU100
- Nominal cluster energy
15.36–76.8 kWh
- Usable cluster energy
14.592–72.96 kWh
- Cycle record
≥8,000 under Dyness test conditions
03 · Confirm before quotation
Four checks before this reference is quoted.
ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.
- 01
Stack composition
Confirm 3–15 S51100 modules, one SBDU100 and the correct standard or documented expansion-base arrangement.
- 02
Inverter and communication
Confirm exact inverter voltage window, Dyness protocol, firmware, cable and pinout.
- 03
Current and installation
Confirm 50 A recommended, 100 A continuous and 125 A two-minute limits, plus support, protection, conductors and IP20 indoor conditions.
- 04
Traceability and commissioning
Record every module and controller serial, firmware, stack configuration, communication state and delivered warranty pack.
04 · Documents & warranty
Keep the exact reference traceable.
Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.
Dyness STACK100 Datasheetdatasheet · Global technical record · English2026-05-20 · product family
Dyness STACK100 User Manualmanual · Global · EnglishV2.9 · 2025-07 · product family
Dyness STACK100 Inverter Compatibility Listcompatibility · Global · English2026-08-25 · product family
Dyness STACK100 Component Warrantywarranty · Worldwide manufacturer terms · English202410 · published 2025-02 · exact reference
Manufacturer warranty reference
10 years
- The retained component warranty explicitly lists S51100
- Exact serial, communication state, installation and delivered warranty terms control
