Ingelec perforated plate for 700 × 500 mm Metalbox
Exact reference · PP0705

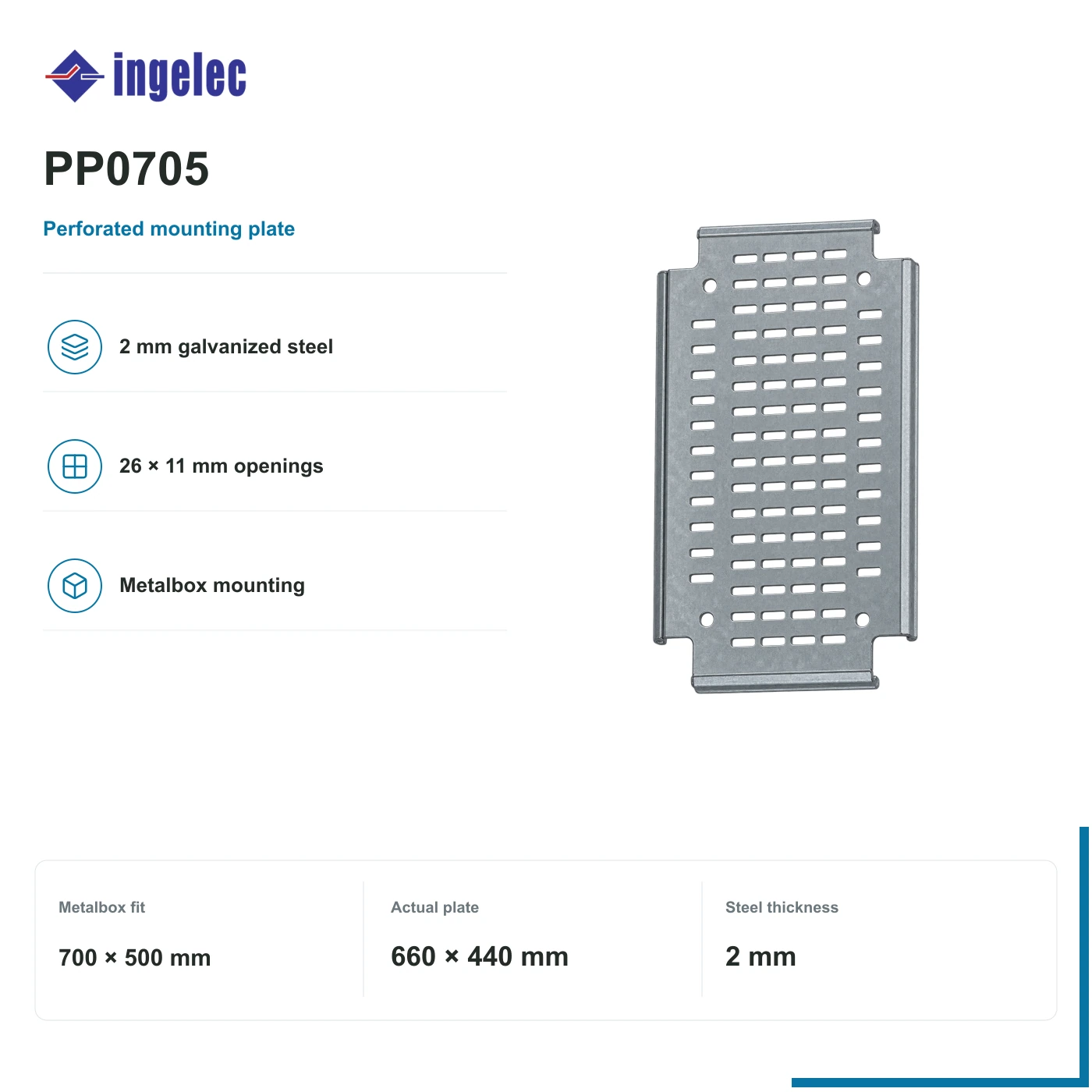

Perforated 2 mm galvanized steel mounting plate. Fits a 700 × 500 mm Metalbox; the plate itself measures 660 × 440 mm.
- Fits Metalbox · H × W
- 700 × 500 mm
- Actual plate · H × W
- 660 × 440 mm
- Material
- Galvanized steel
- Steel thickness
- 2 mm
This accessory does not set the electrical protection rating of a complete installation. The equipment, wiring and assembly are selected for the project.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
The perforated plate creates an internal mounting surface for a matching Metalbox. Its folded galvanized steel and 26 × 11 mm rectangular openings support positioning with suitable clip nuts. It is a mounting part, not electrical protection.
Relevant applications
- Internal mechanical mounting in the corresponding Metalbox size.
Why ReneWave may shortlist it
- 2 mm galvanized steel mounting surface.
- Perforations allow equipment positioning without treating enclosure size as plate size.
Where it fits in the installation
Perforated mounting platePP0705
Solar installation example
Solar panels
PV array
Solar inverter
DC to AC conversion
AC protection & control
Equipment selected for the project
Selected item here · PP0705
Cable route
Conductors between equipment
Site equipment
Equipment supplied by the installation
Example AC-side placement; protection and wiring are selected for the project.
Arrows show the connection order of the example equipment. The highlighted accessory houses, mounts or supports it; it does not conduct the working current.
How the item is used
The plate is fixed inside the enclosure and supports separately selected equipment. Electrical connections go to that equipment, not through the plate.
Perforated mounting plate
Metalbox enclosure · separate · Equipment selected separately
Selected item
Perforated mounting plate
Read the technical explanation
Perforated 2 mm galvanized steel mounting plate. Fits a 700 × 500 mm Metalbox; the plate itself measures 660 × 440 mm.
02 · Specifications
Ratings, dimensions and practical consequence.
Construction and mechanical fit
- Manufacturer reference
PP0705
- Fits Metalbox · H × W
700 × 500 mm
- Actual plate · H × W
660 × 440 mm
- Material
Galvanized steel
- Steel thickness
2 mm
- Perforations
26 × 11 mm
- Mounting
Folded plate · clip-nut openings
03 · Confirm before quotation
Four checks before this reference is quoted.
Confirm physical dimensions, cable routing, installation conditions and the exact supplied parts before quotation.
- 01
Dimensions and mounting
Match the stated Metalbox height and width. The actual plate dimensions are smaller and are listed separately.
- 02
Cable route
Check equipment fixing centres, clip nuts, fasteners and clearance behind the plate.
- 03
Installation environment
Assess equipment mass, ventilation clearance and bonding requirements for the completed assembly.
- 04
Exact reference and supply
The enclosure, equipment and fixing hardware are separate. Confirm the exact supplied accessories.
04 · Documentation
Keep the exact reference traceable.
Published documents for this exact reference support selection and handover.
Industry catalogueguide · Morocco · French2022 catalogue · product family
05 · Complete the system
Accessories and adjacent equipment, in one request.
Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.
Recommended companions
Ingelec · CM7502635

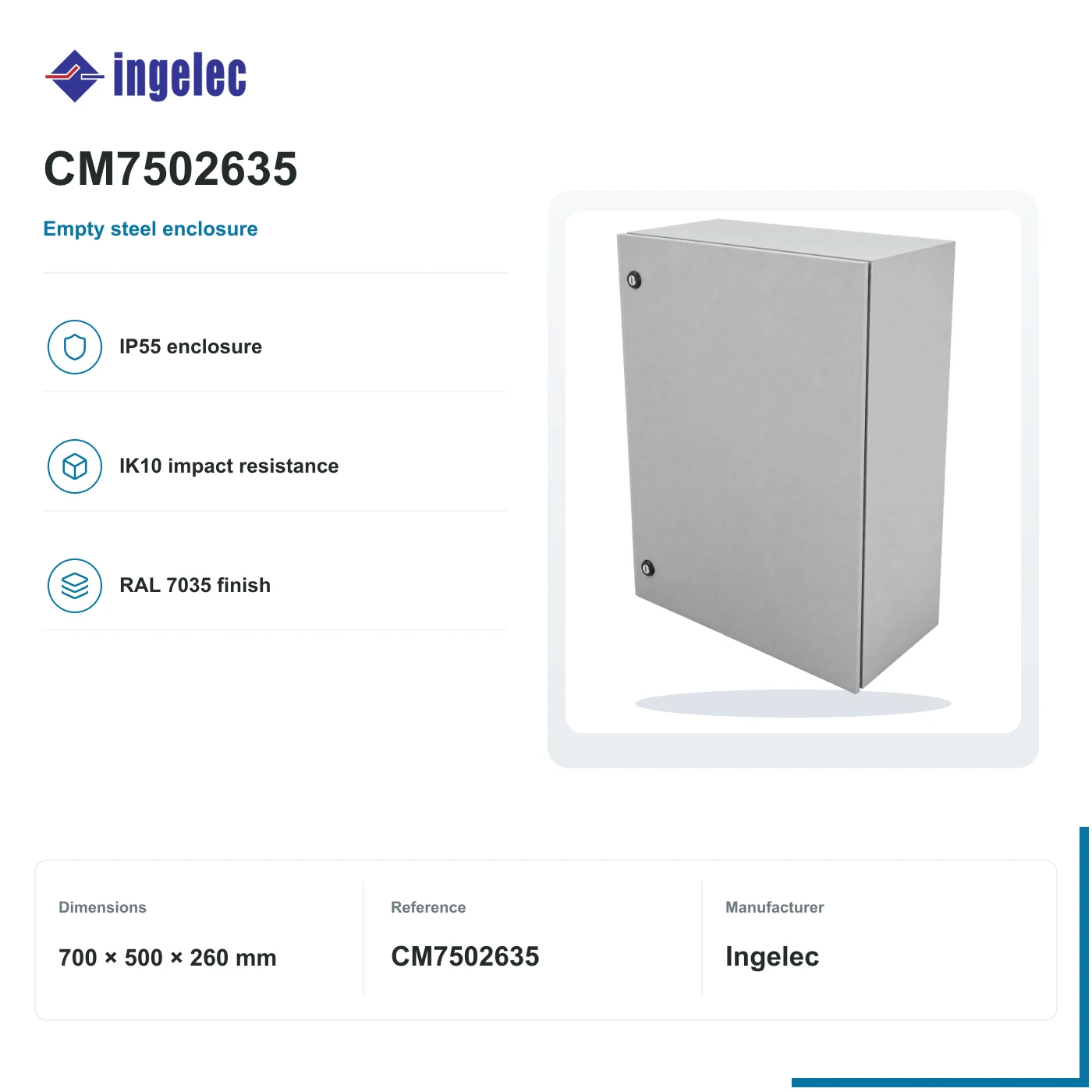

Ingelec Metalbox empty IP55 enclosure · 700 × 500 × 260 mmMatched Metalbox enclosure and perforated plate; ordered separately. The enclosure, equipment and fixing hardware are separate. Confirm the exact supplied accessories.
