Controls S0 charge and discharge
Coordinates energy flow between a compatible Huawei inverter and the battery modules.
Huawei rates the C0 controller at 5 kW while complete-stack output varies with module count.
Huawei FusionSolarPremium

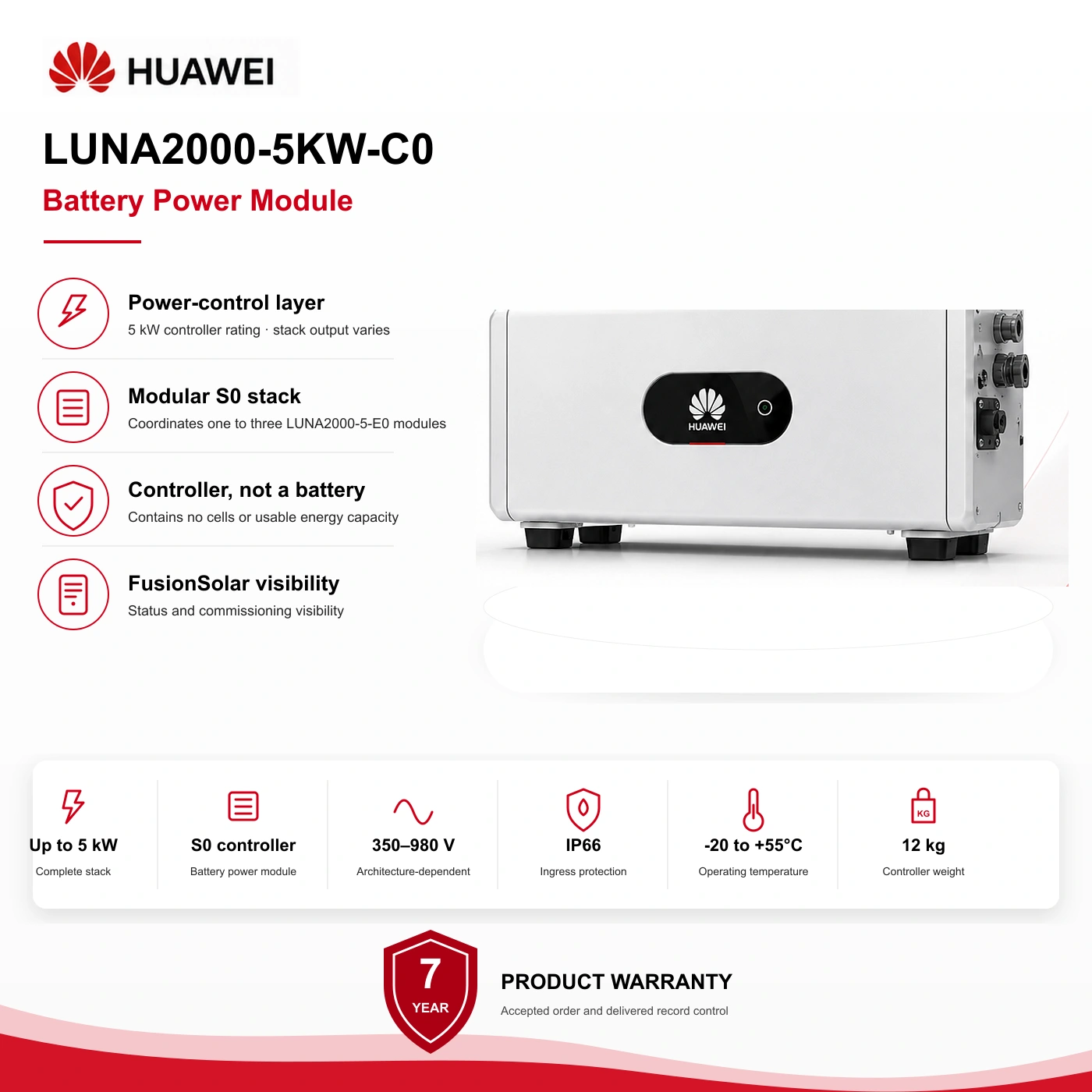

Huawei LUNA2000 5 kW Battery Power Module
Exact reference · LUNA2000-5KW-C0
The control and power-conversion layer for a modular Huawei LUNA2000-S0 battery stack. It operates with one to three separately ordered LUNA2000-5-E0 battery modules.
- Product role
- S0 battery power-control module
It contains no battery cells and provides no usable capacity by itself.
- Stack composition
- 1 C0 + 1–3 LUNA2000-5-E0 modules
The separate E0 count determines usable capacity and maximum stack output.
- Usable system capacity
- 5 / 10 / 15 kWh
These are complete-stack values, not capacity inside this C0.
- Maximum system output
- 2.5 / 5 / 5 kW
A one-module 5 kWh stack is limited to 2.5 kW.
- Voltage architecture
- 350–560 V single phase · 600–980 V three phase
The valid range depends on the compatible inverter and stack architecture.
Do not select this module from “5 kW” alone. Confirm stack size, required output, inverter model, firmware, operating voltage, installation method and warranty conditions.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
The LUNA2000-5KW-C0 sits between a compatible Huawei inverter and one to three LUNA2000-5-E0 battery modules. It coordinates controlled charge and discharge; it is not a standalone battery, charger or backup supply.
Relevant applications
- Compatible Huawei residential solar and storage systems
- Modular 5, 10 or 15 kWh S0 stacks
- Projects requiring monitored charge and discharge control
Why ReneWave may shortlist it
- Coordinates one to three S0 battery modules.
- Supports applicable single-phase and three-phase Huawei storage architectures.
- Keeps controller status and commissioning visible in the compatible FusionSolar system.
Built-in capabilities
Four functions, read before the headline specifications.
Coordinates one to three E0 modules
One C0 supports a modular 5, 10 or 15 kWh S0 stack.
S1 modules are not interchangeable with the S0 E0 modules.
Works across reviewed Huawei architectures
Applicable single-phase and three-phase systems use different operating-voltage ranges.
The exact inverter, firmware and market combination must be confirmed.
Status remains visible
The compatible commissioned system exposes status through FusionSolar.
Ownership, firmware and commissioning records form part of the handover.
System position
Where this power module sits in the storage system.
The C0 controls energy between a compatible Huawei inverter and separate E0 battery modules. It does not contain battery cells.
PV supplies protected site loads through the compatible Huawei inverter. The S0 stack remains idle.
Read the technical explanation
The control and power-conversion layer for a modular Huawei LUNA2000-S0 battery stack.
The C0 coordinates one to three separately ordered E0 battery modules. It contains no cells and no usable energy capacity. Complete-stack output depends on module count: a one-module 5 kWh stack is limited to 2.5 kW, while two- and three-module stacks publish 5 kW maximum output.
System selection
The compatible inverter, firmware, operating voltage, protection, cabling, installation conditions and any backup equipment are confirmed as one architecture before quotation.
02 · Specifications
Ratings, dimensions and practical consequence.
Controller
- Product type
LUNA2000-S0 battery power module
- Controller rating
5 kW charge / discharge control
- Dimensions
670 × 150 × 240 mm
- Weight
12 kg
- Enclosure and cooling
IP66 · natural convection
- Operating temperature
-20°C to +55°C
Complete S0 stack
- Battery modules
1 / 2 / 3 × LUNA2000-5-E0
- Usable capacity
5 / 10 / 15 kWh
- Maximum output
2.5 / 5 / 5 kW
- 10-second peak output
3.5 / 7 / 7 kW

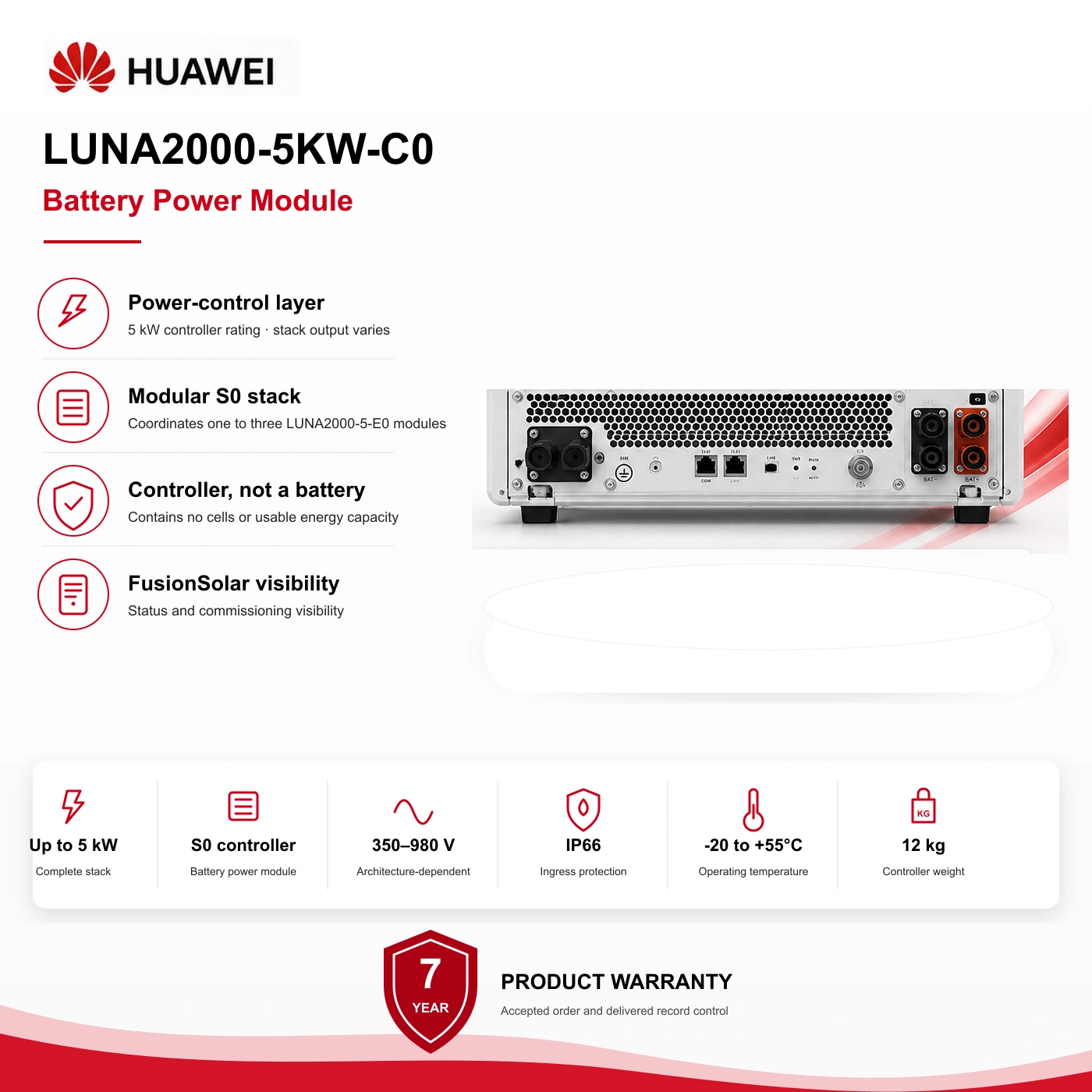

Architecture-dependent interface
- Single-phase range
350–560 V · 450 V nominal
- Three-phase range
600–980 V · 600 V nominal
- Communications
RS485 / CAN where documented for the selected architecture
03 · Confirm before quotation
Four checks before this reference is quoted.
ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.
- 01
Stack composition
Confirm exactly one C0 with one to three compatible LUNA2000-5-E0 modules; do not mix S0 and S1 equipment.
- 02
Inverter and firmware
Confirm the exact Huawei inverter, battery port, firmware, market and supported operating range.
- 03
Installation conditions
Confirm mounting, clearances, temperature, cabling, protection and indoor or outdoor conditions.
- 04
Commissioning and records
Record FusionSolar ownership, serials, firmware, stack configuration and the delivered warranty pack.
04 · Documents & warranty
Keep the exact reference traceable.
Published documents for this exact reference support selection and handover.
LUNA2000-(5-15)-S0 Datasheetdatasheet · Global / EMEA · EnglishVersion 01 · 2024-11 · product family
LUNA2000-(5-30)-S0 User Manualmanual · Global · EnglishIssue 25 · 2026-03-30 · product family
LUNA2000-5KW-C0 / LUNA2000-5-E0 Safety Certificatecertificate · Europe / EMEA · EnglishCertificate N8A 099147 0030 · exact reference
Manufacturer warranty reference
7 years · supplied offer term
- Coverage is subject to the exact serial, accepted order, installation conditions and delivered warranty record
- ReneWave Customer Care manages document and warranty assistance
05 · Complete the system
Accessories and adjacent equipment, in one request.
Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.
Required interfaces and add-ons
Huawei FusionSolar · LUNA2000-5-E0

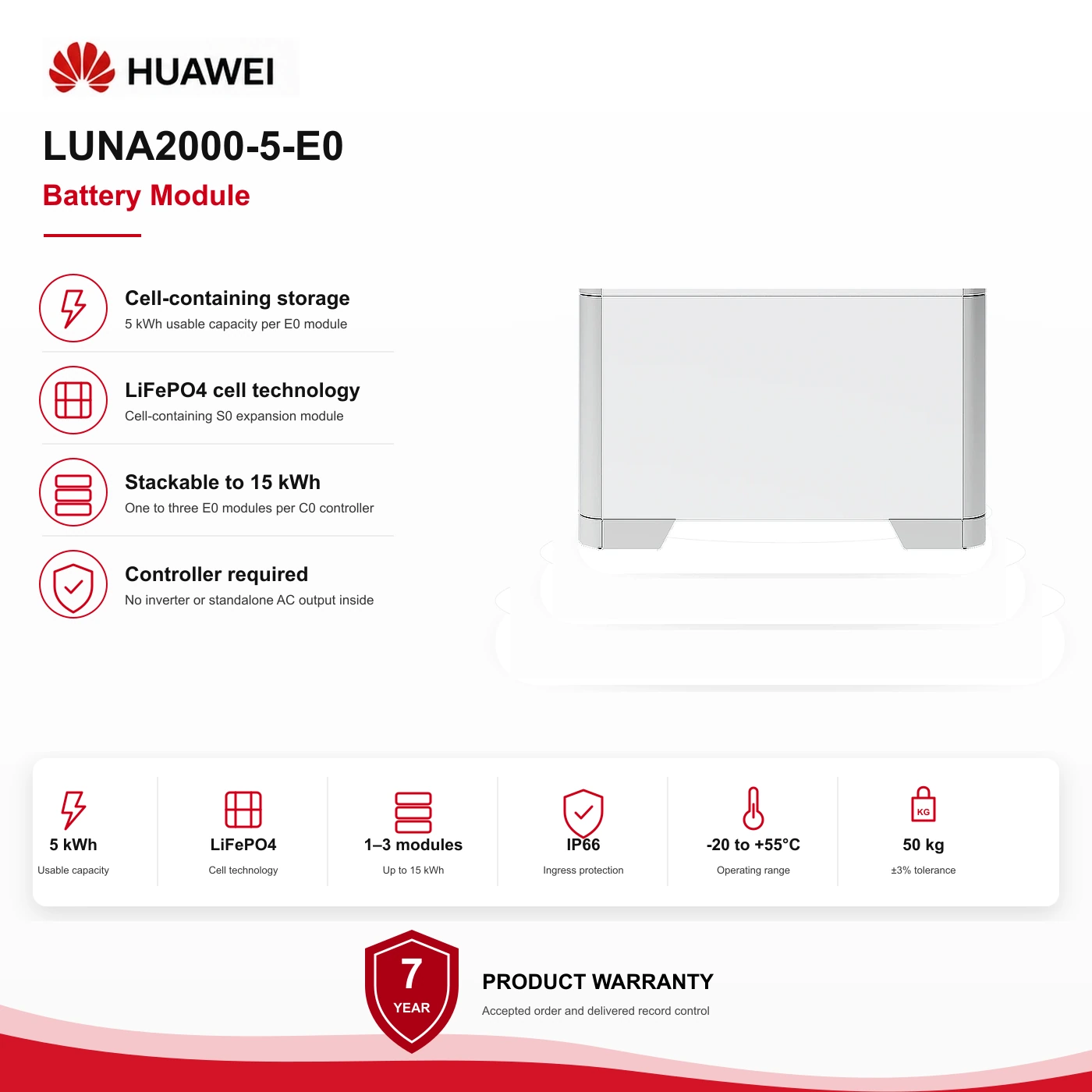

Huawei LUNA2000 5 kWh Battery Module1
