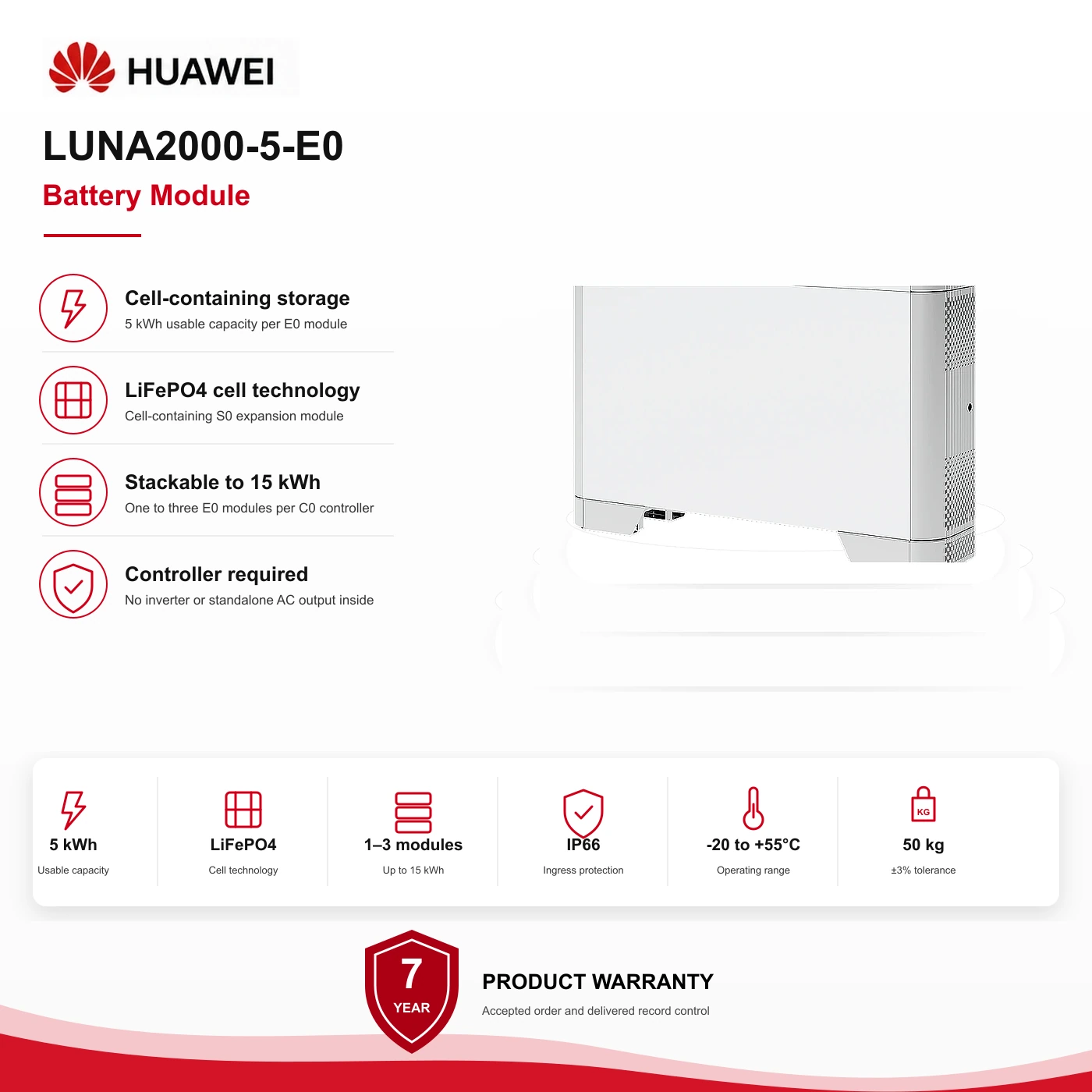

Huawei LUNA2000-5-E0 battery expansion module front presentation
    Battery module · a genuine E0 segment isolated from Huawei’s official S0 family hardware pack and checked against the current manual.
    Huawei FusionSolarPremium

    Huawei LUNA2000 5 kWh Battery Module

    Exact reference · LUNA2000-5-E0

    Cell-containing storage module with five kilowatt-hours of modular S0 capacity, controlled through the separate Huawei C0 power module.

    Usable capacity
    5 kWh

    This is the E0 module capacity under Huawei’s stated beginning-of-life test conditions.

    Cell technology
    LiFePO4

    The E0 contains the battery cells; the separate C0 contains the power-control layer.

    Stack composition
    1 C0 + 1–3 E0 modules

    One, two or three E0 modules provide 5, 10 or 15 kWh usable capacity.

    Maximum stack output
    2.5 / 5 / 5 kW

    A one-module stack is limited to 2.5 kW despite containing 5 kWh.

    Module mass
    50 kg ±3%

    Handling, base or wall support and installation access must be planned.

    Do not select this module from 5 kWh alone. Confirm the C0 controller, module count, inverter and firmware support, required stack output, installation conditions and delivered warranty.

    Pricing confirmed by quote

    The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    The LUNA2000-5-E0 is the cell-containing expansion module in Huawei’s S0 battery. It stores DC energy behind the mandatory C0 controller and a compatible Huawei inverter; it is not a complete battery system or standalone AC battery.

    Relevant applications

    • Compatible Huawei residential solar and storage systems
    • S0 stacks requiring 5, 10 or 15 kWh usable capacity
    • Projects retaining exact battery serial, firmware and warranty records

    Why ReneWave may shortlist it

    • Adds verified S0 storage capacity in 5 kWh increments.
    • Uses LiFePO4 cell technology.
    • Supports indoor or outdoor installation when Huawei installation requirements are met.

    Built-in capabilities

    Four functions, read before the headline specifications.

    Stores 5 kWh of usable energy

    One E0 contributes one 5 kWh increment to a reviewed S0 stack.

    Huawei states usable energy under defined beginning-of-life test conditions.

    Contains the LiFePO4 cells

    The E0 is the energy-storage module, distinct from the C0 controller.

    The E0 has no inverter, MPPT or AC charger.

    Builds a modular S0 stack

    One C0 coordinates one to three E0 modules.

    S0 E0 and S1 modules are not interchangeable.

    Operates inside a commissioned system

    Status and configuration are managed through the compatible inverter and FusionSolar architecture.

    Exact inverter and firmware support must be confirmed.

    System position

    Where this battery module sits in the storage system.

    The E0 stores energy behind a mandatory C0 controller and compatible Huawei inverter. It has no standalone AC output.

    PV supplies protected site loads through the compatible Huawei inverter. The E0 module remains idle.

    PV supplies a compatible Huawei inverter and protected site distribution. One to three LUNA2000-5-E0 battery modules connect through the required separate LUNA2000-5KW-C0 controller. Conditional utility charging passes through the inverter and C0. No direct PV-to-E0, E0-to-AC-load, standalone backup or grid-export path is shown. PV supplies protected site loads through the compatible Huawei inverter. The E0 module remains idle.PV arrayseparate equipmentCompatible Huawei inverterexact model + firmwareProtected AC distributionmeter + protection separateProtected site loadsserved through inverterRequired C0 controllerseparate power moduleLUNA2000-5-E0 battery module(s)5 kWh each · 1–3 modulesUtility supplydirect AC connectionPV supplies a compatible Huawei inverter and protected site distribution. One to three LUNA2000-5-E0 battery modules connect through the required separate LUNA2000-5KW-C0 controller. Conditional utility charging passes through the inverter and C0. No direct PV-to-E0, E0-to-AC-load, standalone backup or grid-export path is shown. PV supplies protected site loads through the compatible Huawei inverter. The E0 module remains idle.PV arrayseparate equipmentCompatible Huawei inverterexact model + firmwareProtected AC distributionmeter + protection separateProtected site loadsserved through inverterRequired C0 controllerseparate power moduleLUNA2000-5-E0 battery module(s)5 kWh each · 1–3 modulesUtility supplydirect AC connectionPV supplies a compatible Huawei inverter and protected site distribution. One to three LUNA2000-5-E0 battery modules connect through the required separate LUNA2000-5KW-C0 controller. Conditional utility charging passes through the inverter and C0. No direct PV-to-E0, E0-to-AC-load, standalone backup or grid-export path is shown. PV supplies protected site loads through the compatible Huawei inverter. The E0 module remains idle.PV arrayseparate equipmentCompatible Huawei inverterexact model + firmwareProtected AC distributionmeter + protection separateProtected site loadsserved through inverterRequired C0 controllerseparate power moduleLUNA2000-5-E0 module(s)5 kWh each · 1–3 modulesUtility supplydirect AC connection

    Electrical powerInactive / conditional

    Conceptual system position, not an installation drawing. Separate equipment and commissioning must be verified.

    Read the technical explanation

    Five kilowatt-hours of modular S0 storage, controlled through the separate Huawei C0 power module.

    The E0 contains the LiFePO4 cells and contributes one 5 kWh usable-capacity increment. One C0 coordinates one to three E0 modules. Complete-stack maximum output is 2.5 kW with one module and 5 kW with two or three modules.

    System selection

    The C0 controller, compatible inverter, firmware, stack size, protection, mounting, cabling, environment and any backup equipment are confirmed as one architecture before quotation.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Battery module

    Product type

    LUNA2000-S0 battery expansion module

    Usable capacity

    5 kWh

    Cell technology

    LiFePO4

    Dimensions

    670 × 150 × 360 mm

    Weight

    50 kg ±3%

    Enclosure and cooling

    IP66 · natural convection

    Operating temperature

    -20°C to +55°C

    Complete S0 stack

    Required controller

    1 × LUNA2000-5KW-C0

    Battery modules

    1 / 2 / 3 × LUNA2000-5-E0

    Usable capacity

    5 / 10 / 15 kWh

    Maximum output

    2.5 / 5 / 5 kW

    10-second peak output

    3.5 / 7 / 7 kW

    Installation boundary

    Installation

    Indoor or outdoor subject to Huawei requirements

    Power conversion

    Separate C0 controller and compatible Huawei inverter required

    Backup

    Defined by separate inverter and switching architecture

    03 · Confirm before quotation

    Four checks before this reference is quoted.

    ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.

    1. 01

      Stack composition

      Confirm exactly one C0 with one to three LUNA2000-5-E0 modules; do not mix S0 and S1 equipment.

    2. 02

      Inverter and firmware

      Confirm the exact Huawei inverter, battery port, firmware, market and required stack output.

    3. 03

      Installation conditions

      Confirm mounting, support, clearances, temperature, cabling, protection and indoor or outdoor conditions.

    4. 04

      Commissioning and records

      Record FusionSolar ownership, controller/module serials, firmware, stack configuration and delivered warranty pack.

    04 · Documents & warranty

    Keep the exact reference traceable.

    Published documents for this exact reference support selection and handover.

    Manufacturer warranty reference

    7 years · supplied offer term

    • Coverage is subject to the exact serial, accepted order, installation conditions and delivered warranty record
    • ReneWave Customer Care manages document and warranty assistance
    Customer Care

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.
