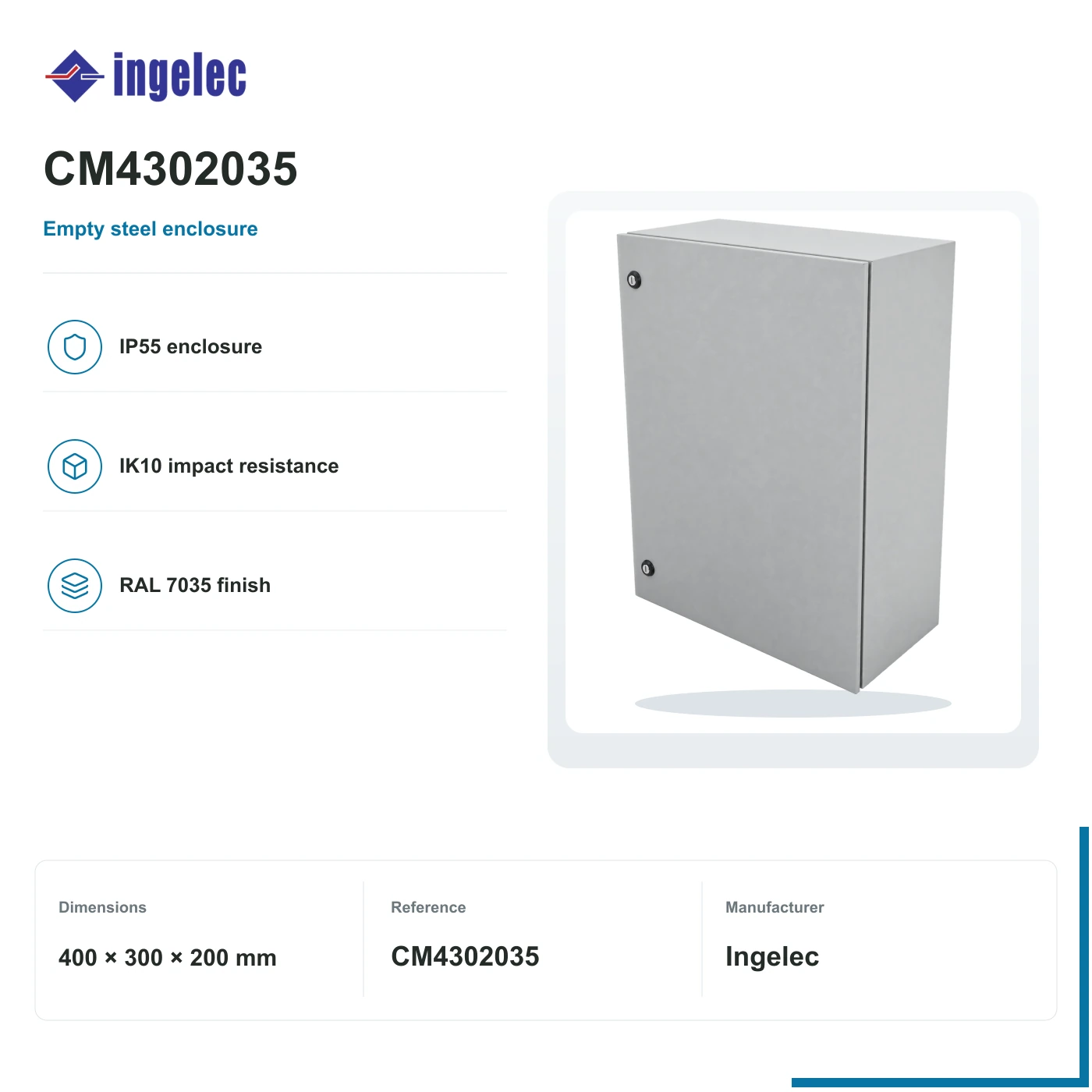

Ingelec Metalbox empty IP55 enclosure · 400 × 300 × 200 mm
Exact reference · CM4302035
Empty steel cabinet, 400 × 300 × 200 mm (height × width × depth), IP55 and IK10. Select the mounting plate and protection equipment separately.
- Enclosure dimensions · H × W × D
- 400 × 300 × 200 mm
- Enclosure protection
- IP55 · EN 60529 / IK10 · EN 62262
- Material
- Folded and welded steel
- Finish
- Epoxy-polyester powder · RAL 7035
Empty enclosure. No breakers, fuses, surge protectors, busbars or wired solar assembly are specified with this reference.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
Metalbox provides the mechanical enclosure around a separately designed electrical assembly. Its steel body, door seal and quarter-turn closure protect the enclosure; they do not constitute an assembled AC or DC protection box.
Relevant applications
- Housing separately selected control, distribution or protection equipment.
Why ReneWave may shortlist it
- IP55 enclosure with IK10 impact resistance.
- Reversible door and standard light-grey RAL 7035 finish.
Where it fits in the installation
Empty Metalbox enclosureCM4302035
Solar installation example
Solar panels
PV array
Solar inverter
DC to AC conversion
AC protection & control
Equipment selected for the project
Selected item here · CM4302035
Cable route
Conductors between equipment
Site equipment
Equipment supplied by the installation
Example AC-side placement; protection and wiring are selected for the project.
Arrows show the connection order of the example equipment. The highlighted accessory houses, mounts or supports it; it does not conduct the working current.
How the item is used
The enclosure houses separately selected protection and control equipment. The conductors connect to that equipment, not through the metal enclosure.
Empty Metalbox enclosure
Mounting plate · separate · Equipment selected separately
Selected item
Empty Metalbox enclosure
Read the technical explanation
Empty steel cabinet, 400 × 300 × 200 mm (height × width × depth), IP55 and IK10. Select the mounting plate and protection equipment separately.
02 · Specifications
Ratings, dimensions and practical consequence.
Construction and mechanical fit
- Manufacturer reference
CM4302035
- Enclosure dimensions · H × W × D
400 × 300 × 200 mm
- Enclosure protection
IP55 · EN 60529 / IK10 · EN 62262
- Material
Folded and welded steel
- Finish
Epoxy-polyester powder · RAL 7035
- Mounting
4 fixing holes; bottom cable entry
- Door and closure
Reversible door · quarter-turn DIN 3 mm lock
03 · Confirm before quotation
Four checks before this reference is quoted.
Confirm physical dimensions, cable routing, installation conditions and the exact supplied parts before quotation.
- 01
Dimensions and mounting
Check external dimensions, wall space, door opening and the correct plate for the enclosure height and width.
- 02
Cable route
Allow space for cable entries, bend radii, terminals and heat dissipation from the selected equipment.
- 03
Installation environment
IP55 applies to the enclosure as specified. Drilling, cable entries and added ventilation must preserve the required finished-assembly protection.
- 04
Exact reference and supply
Confirm mounting plate, wall fixings, entry fittings and the complete supplied package in the quotation.
04 · Documentation
Keep the exact reference traceable.
Published documents for this exact reference support selection and handover.
