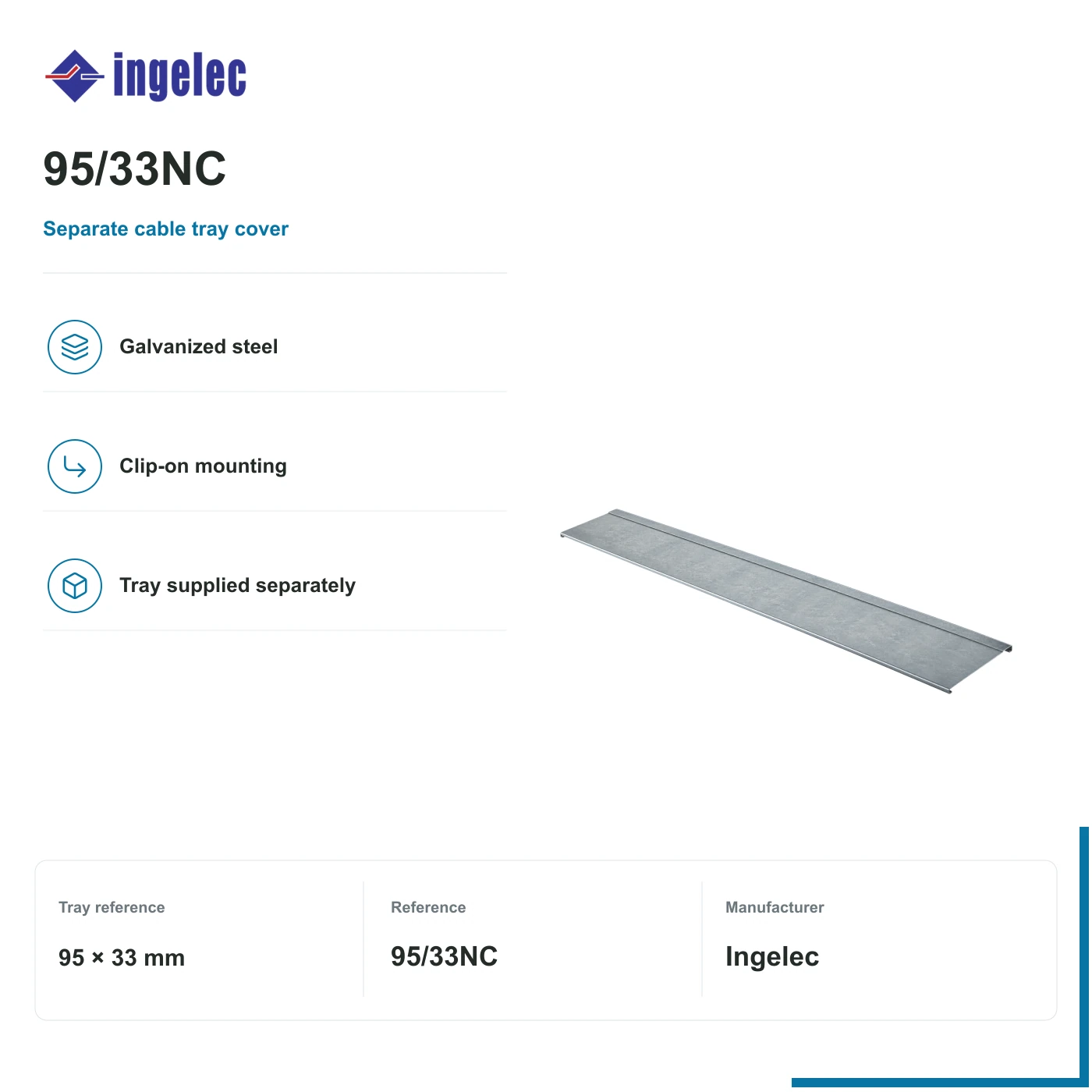

Ingelec cable tray cover · 95 × 33 mm
Exact reference · 95/33NC
Galvanized steel clip-on cover for the 95 × 33 mm cable-tray reference. Confirm the exact tray and delivered length before ordering.
- Tray reference size
- 95 × 33 mm
- Material
- Galvanized steel
- Mounting
- Clip-on
- Length per item
- Confirm in the quotation
This accessory does not set the electrical protection rating of a complete installation. The equipment, wiring and assembly are selected for the project.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
This galvanized cover closes the top of a separately selected cable tray using the manufacturer clip-on arrangement. It is supplied as a cover reference, not as a tray-and-cover assembly.
Relevant applications
- Closing a manufacturer-matched metal cable tray.
Why ReneWave may shortlist it
- Galvanized steel cover with clip-on assembly.
- Separate cover SKU keeps the requested tray and cover traceable.
Where it fits in the installation
Separate tray cover95/33NC
Solar installation example
Solar panels
PV array
Solar inverter
DC to AC conversion
AC protection & control
Equipment selected for the project
Cable route
Conductors between equipment
Selected item here · 95/33NC
Site equipment
Equipment supplied by the installation
Example AC-side placement; protection and wiring are selected for the project.
Arrows show the connection order of the example equipment. The highlighted accessory houses, mounts or supports it; it does not conduct the working current.
How the item is used
The cover clips onto a compatible tray over the cable run. The tray and cables are separate parts; cover width and fit must be checked.
Separate tray cover
Tray · separate, fit to confirm
Selected item
Separate tray cover
Read the technical explanation
Galvanized steel clip-on cover for the 95 × 33 mm cable-tray reference. Confirm the exact tray and delivered length before ordering.
02 · Specifications
Ratings, dimensions and practical consequence.
Construction and mechanical fit
- Manufacturer reference
95/33NC
- Tray reference size
95 × 33 mm
- Material
Galvanized steel
- Mounting
Clip-on
- Length per item
Confirm in the quotation
03 · Confirm before quotation
Four checks before this reference is quoted.
Confirm physical dimensions, cable routing, installation conditions and the exact supplied parts before quotation.
- 01
Dimensions and mounting
Confirm the exact tray/cover pair and its clipping profile. Matching width alone is insufficient evidence for a different side height.
- 02
Cable route
Check access needs, cable fill and any effect of a cover on ventilation or cable derating.
- 03
Installation environment
A cover does not establish a complete weatherproof or sealed enclosure. Assess the finished route and exposure.
- 04
Exact reference and supply
Confirm delivered length and fixing arrangement. Tray, supports and accessories are separate.
04 · Documentation
Keep the exact reference traceable.
Published documents for this exact reference support selection and handover.
Industry catalogueguide · Morocco · French2022 catalogue · product family
05 · Complete the system
Accessories and adjacent equipment, in one request.
Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.
No additional equipment is published for this reference. Required accessories are confirmed during quotation.
