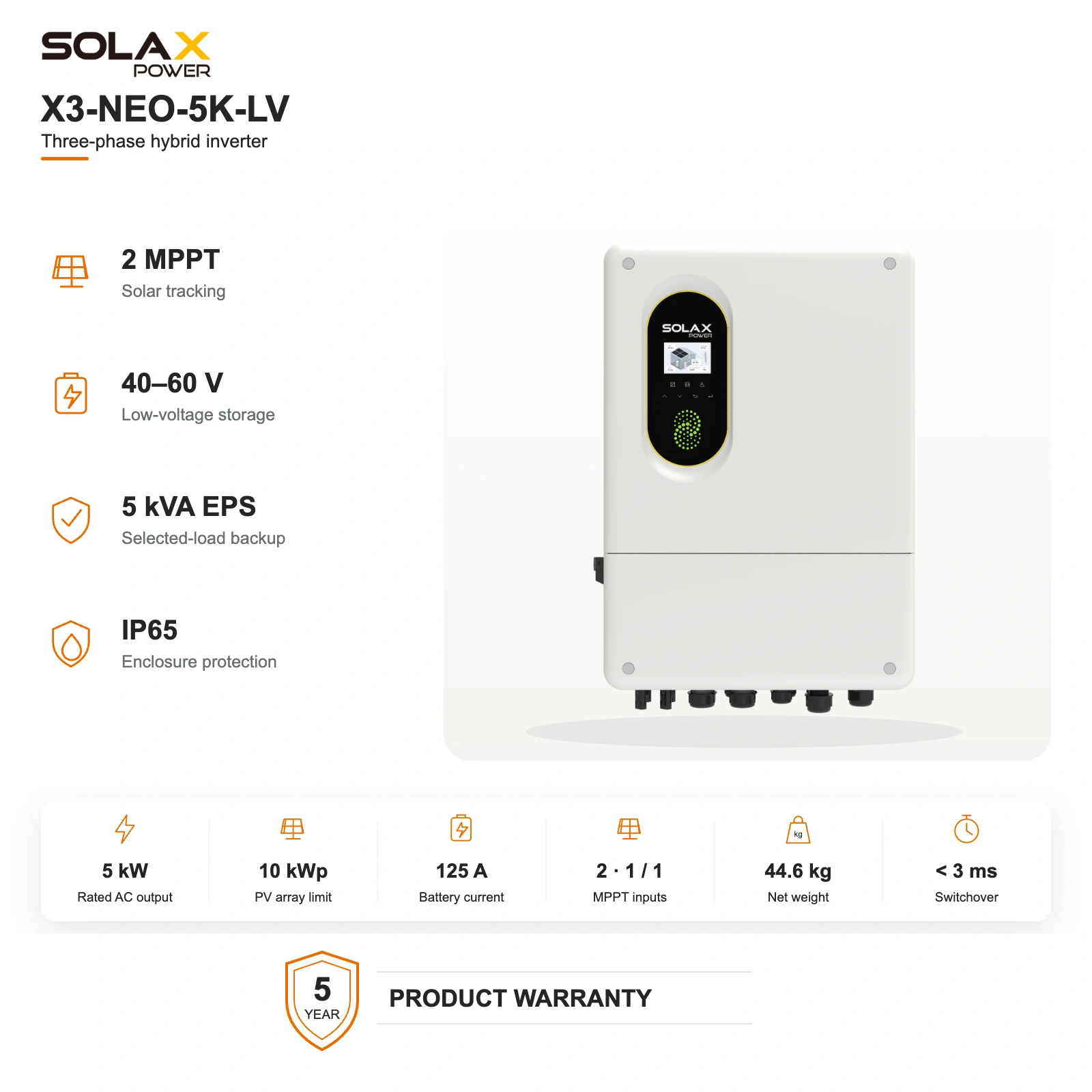

SolaX X3-NEO-5K-LV front product presentation
    Front family view with exact-model ratings.
    SolaXBest Value

    SolaX 5 kW Three-Phase Hybrid Inverter

    Exact reference · X3-NEO-5K-LV

    5 kW three-phase conversion with two PV trackers and a separate 40–60 V battery. The EPS circuit provides a defined backup boundary; the inverter is not a battery.

    AC architecture
    5 kW · three-phase

    Choose the inverter for the actual utility phase arrangement.

    Battery interface
    40–60 V

    125 A maximum charge / discharge

    Backup output
    5 kVA rated EPS

    Backup supplies separately protected selected circuits. Battery capacity, BMS limits, load balance and commissioned settings determine the available output.

    Solar design
    2 MPPTs · 10 kWp array

    1000 V maximum Voc; current and string allocation remain model-specific.

    Pricing confirmed by quote

    The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    5 kW three-phase solar and storage conversion. Backup supplies separately protected selected circuits. Battery capacity, BMS limits, load balance and commissioned settings determine the available output.

    Relevant applications

    • Solar self-consumption
    • Low-voltage battery storage
    • Selected-circuit backup

    Why ReneWave may shortlist it

    • Two MPPTs allow independently designed PV string groups.
    • The battery interface supports controlled charging and discharge.
    • A dedicated EPS connection separates selected backup circuits.

    Built-in capabilities

    Four functions, read before the headline specifications.

    Solar conversion

    Converts designed PV strings into usable AC.

    5 kW · three-phase

    Two independent solar trackers

    Supports separately calculated string groups.

    160–950 V MPPT window · 18 / 18 A maximum per tracker.

    Bidirectional battery conversion

    Coordinates solar or scheduled utility charging and battery discharge.

    40–60 V · 125 A maximum charge / discharge. Exact BMS support is required.

    Selected-circuit backup

    Supplies dedicated EPS circuits when the grid is unavailable.

    5 kVA rated · < 3 ms published switchover. Backup supplies separately protected selected circuits. Battery capacity, BMS limits, load balance and commissioned settings determine the available output.

    Inside the energy system

    One inverter. Different energy paths.

    Solar conversion inside the inverter. Storage, external protection and configured load circuits remain separate.

    PV power passes through the integrated MPPTs and inverter to the selected load circuit.

    Backup supplies separately protected selected circuits. Battery capacity, BMS limits, load balance and commissioned settings determine the available output.

    X3-NEO-5K-LV coordinates two PV trackers, a separate compatible low-voltage battery and selected protected loads. Utility charging and the dedicated generator input are separate commissioned modes. During an outage the grid is isolated from the EPS output. PV power passes through the integrated MPPTs and inverter to the selected load circuit.Designed PV strings10 kWp array limit1000 V maximum Voc2 integrated MPPTs160–950 V18 / 18 A per MPPTX3-NEO-5K-LV5 kW · three-phaseProtected EPS circuits230 / 400 V · three phaseExternal protectionSelected loads5 kVA EPS ratedDemand + surge verifiedCompatible battery40–60 V · separate125 A maximumUtility supplyThree-phase connectionCommissioned settingsOptional generatorDedicated GEN terminalControl + settings verifiedX3-NEO-5K-LV coordinates two PV trackers, a separate compatible low-voltage battery and selected protected loads. Utility charging and the dedicated generator input are separate commissioned modes. During an outage the grid is isolated from the EPS output. PV power passes through the integrated MPPTs and inverter to the selected load circuit.Designed PV strings10 kWp array limit1000 V maximum Voc2 integrated MPPTs160–950 V18 / 18 A per MPPTX3-NEO-5K-LV5 kW · three-phaseProtected EPS circuits230 / 400 V · three phaseExternal protectionSelected loads5 kVA EPS ratedDemand + surge verifiedCompatible battery40–60 V · separate125 A maximumUtility supplyThree-phase connectionCommissioned settingsOptional generatorDedicated GEN terminalControl + settings verifiedX3-NEO-5K-LV coordinates two PV trackers, a separate compatible low-voltage battery and selected protected loads. Utility charging and the dedicated generator input are separate commissioned modes. During an outage the grid is isolated from the EPS output. PV power passes through the integrated MPPTs and inverter to the selected load circuit.Designed PV strings10 kWp array limit1000 V maximum Voc2 integrated MPPTs160–950 V18 / 18 A per MPPTX3-NEO-5K-LV5 kW · three-phaseProtected EPS circuits230 / 400 V · three phaseExternal protectionSelected loads5 kVA EPS ratedDemand + surge verifiedCompatible battery40–60 V · separate125 A maximumUtility supplyThree-phase connectionCommissioned settingsOptional generatorDedicated GEN terminalControl + settings verified

    Active power path Inactive path

    Conceptual operation, not a wiring plan. Separate equipment, protection, firmware and commissioning must be verified.

    Read the technical explanation

    A 5 kW three-phase hybrid inverter combining solar conversion, 40–60 V battery charging and selected-circuit backup.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    PV input

    Maximum recommended PV array

    10 kWp

    MPPTs / strings per tracker

    2 / (1 / 1)

    MPPT operating range

    160–950 V

    Maximum PV voltage

    1000 V

    PV start-up voltage

    150 V

    Maximum PV current per MPPT

    18 / 18 A

    Maximum PV short-circuit current per MPPT

    25 / 25 A

    AC, storage and EPS

    Rated AC output

    5 kW · three-phase

    Battery voltage range

    40–60 V

    Maximum battery charge / discharge current

    125 A

    Rated EPS output

    5 kVA

    Peak EPS output

    10 kVA · 10 seconds

    Switchover time

    < 3 ms

    Maximum / European efficiency

    97.6% / 97.0%

    Enclosure and installation

    Ingress protection

    IP65

    Operating temperature

    −25 to +60°C · derating above +45°C

    Dimensions (W × H × D)

    520 × 705 × 258 mm

    Net weight

    44.6 kg

    Cooling

    Natural cooling

    Unbalanced output per phase

    Up to 2.5 kW per phase · total output limit applies

    03 · Confirm before quotation

    Four checks before this reference is quoted.

    ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.

    1. 01

      PV and phase arrangement

      Check three-phase service, cold Voc, MPPT currents and strings.

    2. 02

      Battery and load fit

      Verify the full 40–60 V range, BMS protocol, 125 A current path and backup demand.

    3. 03

      Installation and protection

      Design isolators, conductors, protective devices, earthing and cooling clearances.

    4. 04

      Control and commissioning

      Verify meter/CT placement, firmware, battery settings and any generator or parallel architecture.

    04 · Documents & warranty

    Keep the exact reference traceable.

    Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.

    Manufacturer warranty reference

    5 years

    • Manufacturer product warranty under the retained global terms
    Customer Care

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.

    No additional equipment is published for this reference. Required accessories are confirmed during quotation.
