Solar conversion
Converts designed PV strings into usable AC.
15 kW · three-phase
SolaXBest Value

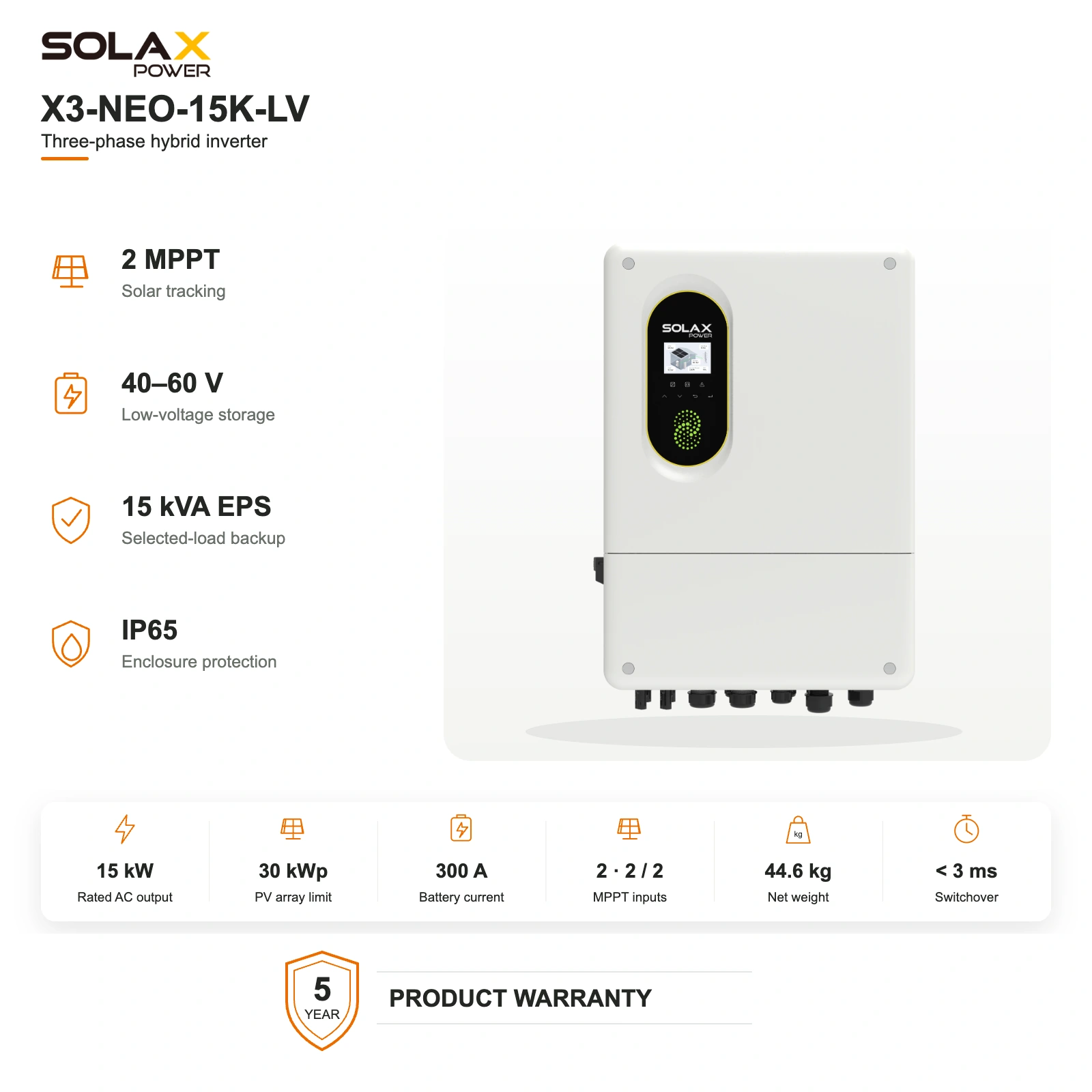

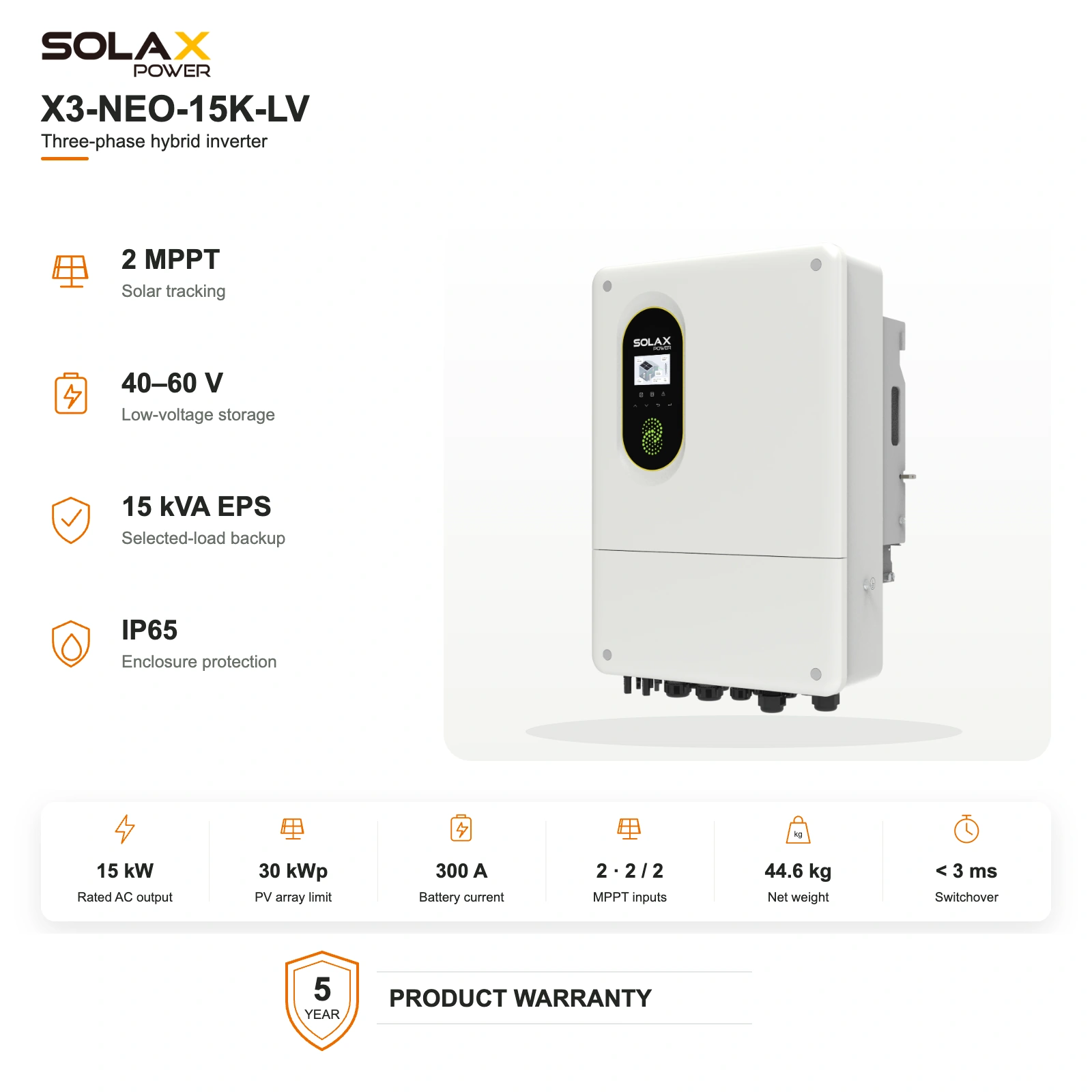

SolaX 15 kW Three-Phase Hybrid Inverter
Exact reference · X3-NEO-15K-LV
15 kW three-phase conversion with two PV trackers and a separate 40–60 V battery. The EPS circuit provides a defined backup boundary; the inverter is not a battery.
- AC architecture
- 15 kW · three-phase
Choose the inverter for the actual utility phase arrangement.
- Battery interface
- 40–60 V
300 A maximum charge / discharge
- Backup output
- 15 kVA rated EPS
Backup supplies separately protected selected circuits. Battery capacity, BMS limits, load balance and commissioned settings determine the available output.
- Solar design
- 2 MPPTs · 30 kWp array
1000 V maximum Voc; current and string allocation remain model-specific.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
15 kW three-phase solar and storage conversion. Backup supplies separately protected selected circuits. Battery capacity, BMS limits, load balance and commissioned settings determine the available output.
Relevant applications
- Solar self-consumption
- Low-voltage battery storage
- Selected-circuit backup
Why ReneWave may shortlist it
- Two MPPTs allow independently designed PV string groups.
- The battery interface supports controlled charging and discharge.
- A dedicated EPS connection separates selected backup circuits.
Built-in capabilities
Four functions, read before the headline specifications.
Two independent solar trackers
Supports separately calculated string groups.
160–950 V MPPT window · 36 / 36 A maximum per tracker.
Bidirectional battery conversion
Coordinates solar or scheduled utility charging and battery discharge.
40–60 V · 300 A maximum charge / discharge. Exact BMS support is required.
Selected-circuit backup
Supplies dedicated EPS circuits when the grid is unavailable.
15 kVA rated · < 3 ms published switchover. Backup supplies separately protected selected circuits. Battery capacity, BMS limits, load balance and commissioned settings determine the available output.
Inside the energy system
One inverter. Different energy paths.
Solar conversion inside the inverter. Storage, external protection and configured load circuits remain separate.
PV power passes through the integrated MPPTs and inverter to the selected load circuit.
Backup supplies separately protected selected circuits. Battery capacity, BMS limits, load balance and commissioned settings determine the available output.
Read the technical explanation
A 15 kW three-phase hybrid inverter combining solar conversion, 40–60 V battery charging and selected-circuit backup.
02 · Specifications
Ratings, dimensions and practical consequence.
PV input
- Maximum recommended PV array
30 kWp
- MPPTs / strings per tracker
2 / (2 / 2)
- MPPT operating range
160–950 V
- Maximum PV voltage
1000 V
- PV start-up voltage
150 V
- Maximum PV current per MPPT
36 / 36 A
- Maximum PV short-circuit current per MPPT
50 / 50 A
AC, storage and EPS
- Rated AC output
15 kW · three-phase
- Battery voltage range
40–60 V
- Maximum battery charge / discharge current
300 A
- Rated EPS output
15 kVA
- Peak EPS output
30 kVA · 10 seconds
- Switchover time
< 3 ms
- Maximum / European efficiency
97.6% / 97.0%
Enclosure and installation
- Ingress protection
IP65
- Operating temperature
−25 to +60°C · derating above +45°C
- Dimensions (W × H × D)
520 × 705 × 258 mm
- Net weight
44.6 kg
- Cooling
Smart air cooling
- Unbalanced output per phase
Up to 7.5 kW per phase · total output limit applies
03 · Confirm before quotation
Four checks before this reference is quoted.
ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.
- 01
PV and phase arrangement
Check three-phase service, cold Voc, MPPT currents and strings.
- 02
Battery and load fit
Verify the full 40–60 V range, BMS protocol, 300 A current path and backup demand.
- 03
Installation and protection
Design isolators, conductors, protective devices, earthing and cooling clearances.
- 04
Control and commissioning
Verify meter/CT placement, firmware, battery settings and any generator or parallel architecture.
04 · Documents & warranty
Keep the exact reference traceable.
Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.
SolaX X3-NEO-LV Datasheetdatasheet · Global technical record · EnglishV1.9 · product family
SolaX X3-NEO-LV Installation Guideinstallation · Global technical record · English / French sectionsV4.0 · product family
SolaX X3-NEO-LV User Manualmanual · Global technical record · EnglishV4.0 · product family
SolaX Global Manufacturer Warranty Termswarranty · Global · applicable Morocco terms · EnglishV1.7 · 2026-09 · product family
Manufacturer warranty reference
5 years
- Manufacturer product warranty under the retained global terms
05 · Complete the system
Accessories and adjacent equipment, in one request.
Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.
No additional equipment is published for this reference. Required accessories are confirmed during quotation.
