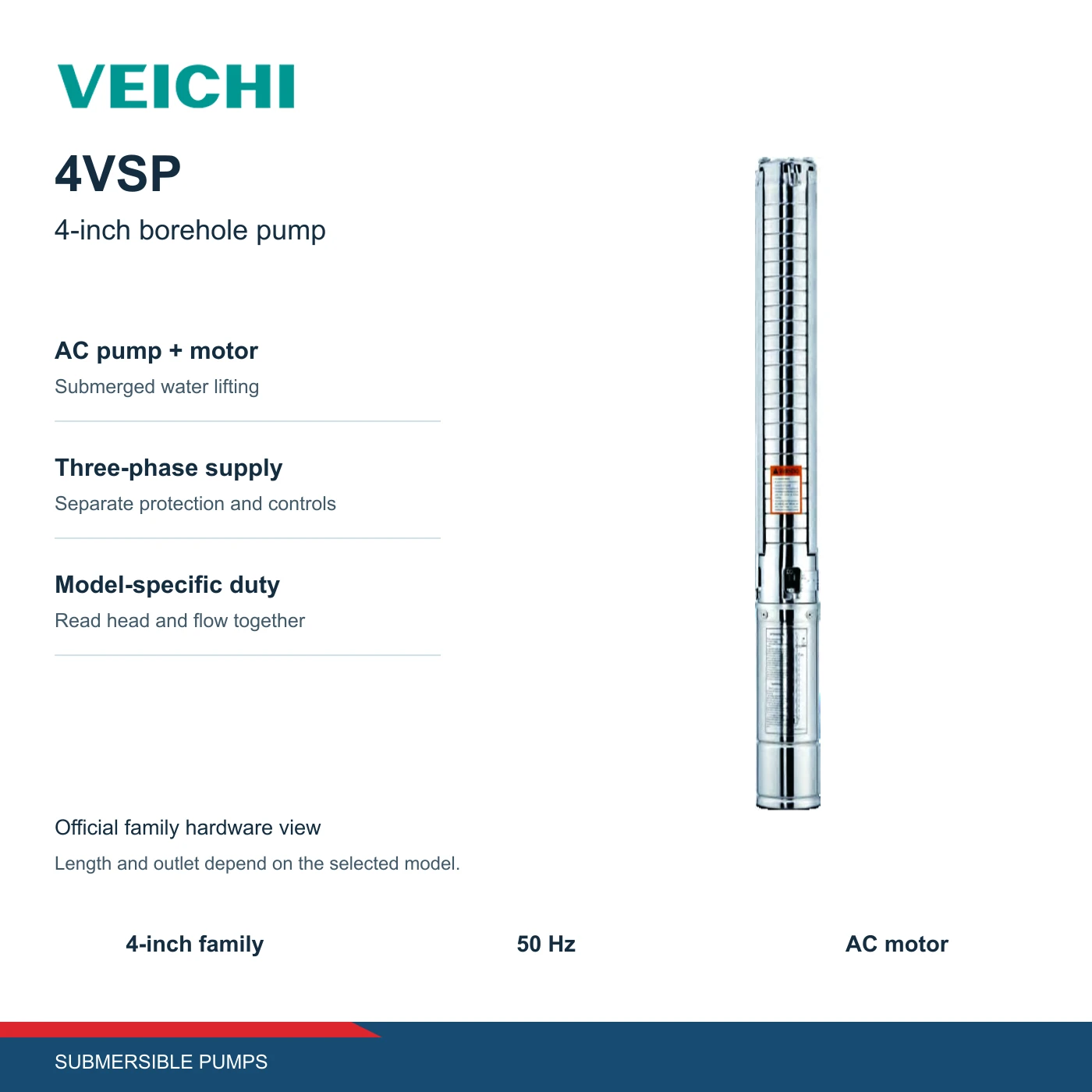

Official 4VSP family hardware presentation; selected stage count and motor determine supplied proportions
    4VSP manufacturer family view, not an exact-stage packshot. Supplied length, outlet and motor follow the selected reference.
    VEICHIBest Value

    VEICHI 4VSP 4-inch Submersible Borehole Pump

    Exact reference · 4VSP

    Match the pump to the borehole and hydraulic duty, then confirm its motor supply.

    Equipment
    AC submersible pump and motor
    Borehole family
    4 inch
    Selection
    Exact hydraulic model required

    Do not select a pump from kW, borehole diameter or maximum head alone. Confirm required flow at total dynamic head, drawdown, pipe friction, water quality, submergence, motor supply, protection and the delivered assembly.

    Quantity means complete pump and motor assemblies. Hydraulic group is not a guaranteed delivery flow.

    Pricing confirmed by quote

    The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    The submerged motor drives the pump stages to lift water through a delivery pipe. Solar operation requires a separately matched solar pump drive; this AC pump does not connect directly to PV modules.

    Relevant applications

    • Borehole water supply
    • Reviewed irrigation systems

    Why ReneWave may shortlist it

    • Exact model selection within a shared family
    • Manufacturer head-versus-flow tables
    • Complete pump and motor ordering identity

    System position

    From electrical supply to water delivery.

    Water delivery depends on the selected head/flow duty and well conditions. Only the pump and motor assembly is the product shown.

    PV feeds a separate compatible drive, never the AC motor directly.

    Electrical supply passes through separate protection and a compatible drive to the motor. Water moves from the well through the pump and delivery pipe to a tank. The pump is not connected directly to solar DC. PV feeds a separate compatible drive, never the AC motor directly.PV arraySeparate solar DC sourceProtection and driveSeparate compatible solar pump drive4VSPThree-phase AC motor · Groundwater enters pumpDelivery pipe and tankSeparate water systemElectrical supply passes through separate protection and a compatible drive to the motor. Water moves from the well through the pump and delivery pipe to a tank. The pump is not connected directly to solar DC. PV feeds a separate compatible drive, never the AC motor directly.PV arraySeparate solar DC sourceProtection and driveSeparate compatible solar pump drive4VSPThree-phase AC motor · Groundwater enters pumpDelivery pipe and tankSeparate water systemElectrical supply passes through separate protection and a compatible drive to the motor. Water moves from the well through the pump and delivery pipe to a tank. The pump is not connected directly to solar DC. PV feeds a separate compatible drive, never the AC motor directly.PV arraySeparate solar DC sourceProtection and driveSeparate compatible solar pump drive4VSPThree-phase AC motor · Groundwater enters pumpDelivery pipe and tankSeparate water system

    Electrical powerWater deliveryInactive / conditional

    Conceptual system position, not an installation drawing. Separate equipment and commissioning must be verified.

    Read the technical explanation

    A complete AC pump and motor assembly selected for the flow and total dynamic head of your borehole.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Family operating conditions

    Supply architecture

    Three-phase AC; solar requires a separate compatible drive

    Minimum well diameter

    4 inch

    Confirm actual borehole and installation clearance.

    Maximum fluid temperature

    +35°C

    Maximum sand content

    0.25%

    Confirm the manufacturer measurement basis and actual water conditions.

    03 · Confirm before quotation

    Four checks before this reference is quoted.

    ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.

    1. 01

      Hydraulic duty

      Compare required flow at total dynamic head, including drawdown and pipe losses. Shut-off head is not delivery performance.

    2. 02

      Motor and drive

      Confirm motor nameplate, three-phase voltage, current, frequency and compatible drive configuration.

    3. 03

      Well and protection

      Confirm borehole clearance, cooling flow, submergence, water conditions, conductors and dry-run protection.

    4. 04

      Delivered reference

      Confirm exact stages, outlet, motor revision and commissioning record. No drive or accessory combination is pre-approved.

    04 · Documentation

    Keep the exact reference traceable.

    Published documents for this exact reference support selection and handover.

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.

    No additional equipment is published for this reference. Required accessories are confirmed during quotation.
