Two PV operating points
Two MPPTs can track two separately calculated string groups.
Each tracker accepts one string input with a published 13.5 A maximum operating current and 19.5 A short-circuit-current limit.
Huawei FusionSolarPremium

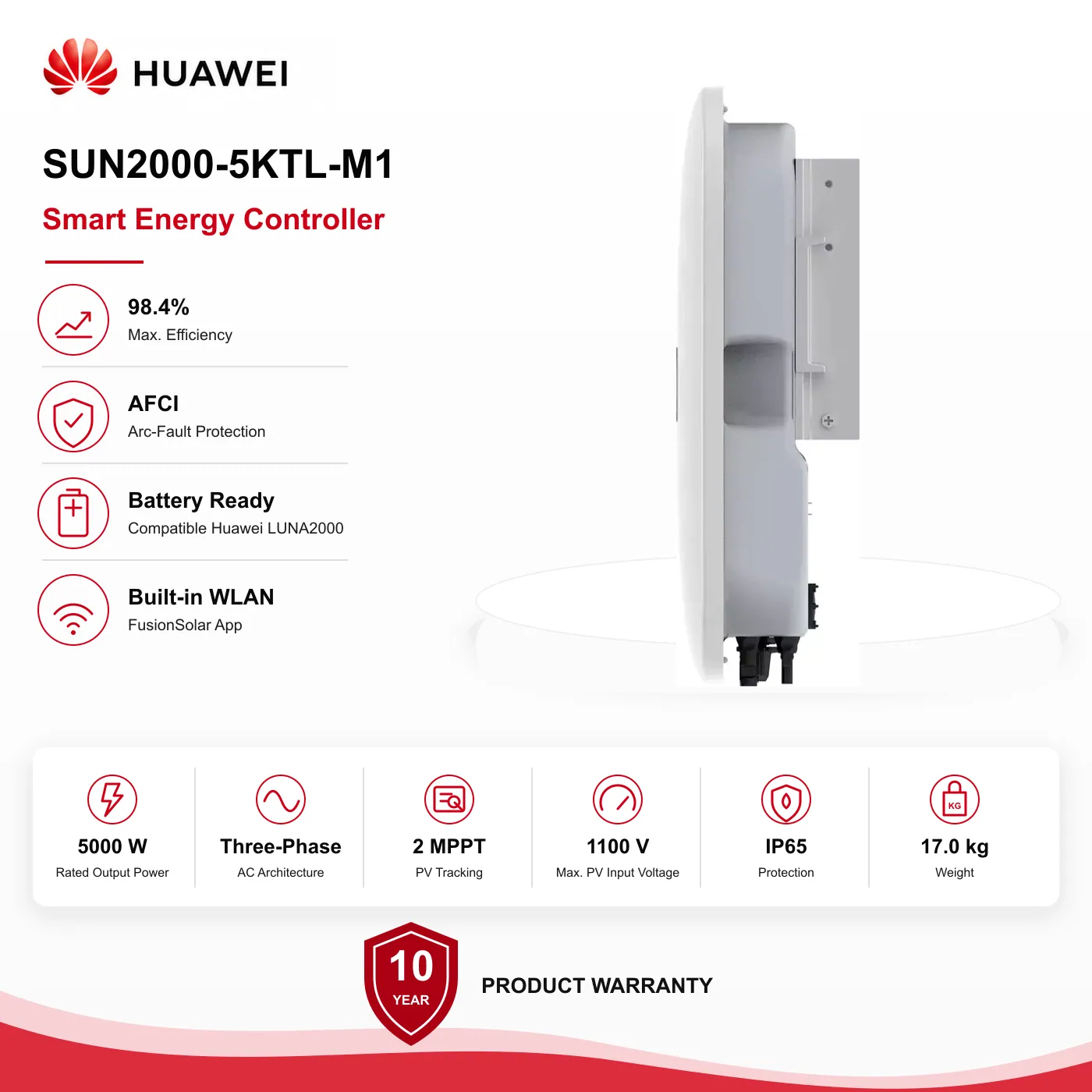

Huawei SUN2000 5 kW Three-Phase Solar Inverter
Exact reference · SUN2000-5KTL-M1
A 5 kW three-phase solar inverter with two MPPTs, a bidirectional Huawei high-voltage storage interface and FusionSolar monitoring. The complete PV, AC, metering, storage and selected-load backup architecture is confirmed before quotation.
- Three-phase output
- 5,000 W · 3W/N+PE
Defines the AC output class; it does not approve the site service or PV array.
- PV design allowance
- 7,500 Wp recommended maximum
String voltage and current calculations still control the permitted array.
- PV tracking
- 2 MPPTs · 1 input each
Two suitable string groups can be tracked independently.
- MPPT window
- 140–980 V
Each string must remain in the usable window across expected temperatures.
- Input current
- 13.5 A per MPPT · 19.5 A Isc
High-current modules are not automatically compatible.
Do not select a 5 kW inverter from nominal power alone. Confirm the three-phase service, PV current, string voltage, battery architecture and backup expectations.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
The SUN2000-5KTL-M1 receives DC power from two designed photovoltaic string inputs and converts it into grid-synchronised three-phase AC for the site. Its bidirectional battery interface can work with supported Huawei high-voltage storage, but the battery, meter, backup switching, protection and communications accessories remain separate equipment.
Relevant applications
- Residential three-phase photovoltaic systems
- Small professional sites with a verified 220/380 V or 230/400 V three-phase service
- Projects where a supported Huawei high-voltage ESS may be added after exact-model and firmware review
Why ReneWave may shortlist it
- Two MPPTs can manage two separately calculated PV operating points.
- Three-phase output can align with a verified three-phase site architecture.
- The battery interface supports a documented Huawei storage path without making the battery part of the inverter.
- FusionSolar supports commissioning, monitoring and alarm follow-up.
Built-in capabilities
Four functions, read before the headline specifications.
Solar DC becomes three-phase AC
The inverter converts photovoltaic DC into synchronised three-phase AC for protected site distribution.
Rated output is 5,000 W at 220/380 V or 230/400 V, 3W/N+PE.
High-voltage storage can be added
A supported Huawei Smart String ESS can connect through the battery interface after exact-system validation.
Battery model, firmware, charge/discharge limits, metering and backup switching remain separate confirmation items.
Commissioning stays visible
WLAN and RS485 support FusionSolar commissioning, monitoring and alarm follow-up.
Ethernet and cellular communications require an optional compatible Smart Dongle.
Inside the energy system
One inverter. Different energy paths.
Solar conversion inside the inverter. Storage, external protection and configured load circuits remain separate.
PV strings pass through both MPPT stages and the inverter to serve protected three-phase site loads. The utility remains the direct AC reference.
Read the technical explanation
Three-phase solar conversion with a reviewed path to Huawei storage.
The SUN2000-5KTL-M1 combines two photovoltaic trackers, grid-synchronised three-phase conversion and a bidirectional Huawei battery interface. It does not include the battery, meter, backup switch, external protection or optional communications dongles.
Current and string design matter
The recommended 7.5 kWp photovoltaic allowance is not a universal array approval. Each string must remain inside the voltage window and the 13.5 A operating-current limit of its assigned MPPT. The high-current modules currently visible in the Store are therefore not automatically compatible.
Backup is a selected-load path
With a validated Huawei ESS and Backup Box-B1, selected single-phase loads can receive backup power up to the documented 3.3 kVA and 15 A limit. This is not unrestricted three-phase whole-site backup.
02 · Specifications
Ratings, dimensions and practical consequence.
PV input
- Recommended maximum PV power
7,500 Wp
- Maximum input voltage
1,100 V
- Start voltage
200 V
- MPPT operating range
140–980 V
- MPPT inputs
2 trackers · 1 input each
- Current limits
13.5 A maximum per MPPT · 19.5 A maximum Isc
AC output
- Rated output
5,000 W three phase
- Maximum apparent power
5,500 VA
- Maximum output current
8.5 A
- Nominal voltage and frequency
220/380 V or 230/400 V · 3W/N+PE · 50/60 Hz
- Efficiency
98.4% maximum · 97.5% European weighted
Battery interface
- Compatible storage class
Huawei Smart String ESS · 5–30 kWh
- Battery operating range
600–980 V
- Maximum battery current
16.7 A
- Maximum charge power
10 kW
- Maximum discharge power
5.5 kW
Installation and communications
- Enclosure and cooling
IP65 · natural convection
- Dimensions
525 × 470 × 166 mm including bracket
- Weight
17 kg including bracket
- Communications
WLAN · RS485 · optional WLAN-FE or 4G Smart Dongle
03 · Confirm before quotation
Four checks before this reference is quoted.
ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.
- 01
PV strings
Confirm cold Voc, operating voltage, current, module count, shading and allocation across both MPPTs. High-current modules are not automatically compatible.
- 02
Three-phase AC
Confirm 220/380 V or 230/400 V service, 3W/N+PE arrangement, 50 Hz grid code, anti-islanding, protection and export-control requirements.
- 03
Battery and backup
Confirm the exact Huawei ESS, firmware, battery current limits, metering and Backup Box-B1 selected single-phase load capacity.
- 04
Installation and monitoring
Confirm temperature derating, clearances, external AC/DC protection, earthing, FusionSolar ownership and optional dongles.
04 · Documents & warranty
Keep the exact reference traceable.
Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.
SUN2000-(3KTL-12KTL)-M1 High-Current Datasheetdatasheet · EMEA high-current family · FrenchCurrent verified edition · product family
SUN2000-(3KTL-10KTL)-M1 User Manualmanual · Global · EnglishIssue 28 · 2026-03-30 · product family
Huawei Residential Smart PV Warranty Policy V2.1warranty · Global policy · order-specific terms apply · EnglishIssue 04 · 2025-11-30 · product family
Manufacturer warranty reference
10 years · current 2026 non-European Smart PV policy
- Manufacturer commercial warranty subject to the current policy and supplied product record
- ReneWave Customer Care manages document and warranty assistance
05 · Complete the system
Accessories and adjacent equipment, in one request.
Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.
Recommended companions
Huawei FusionSolar · SMARTLOGGER3000A
Huawei SmartLogger3000A PV Plant Communications ControllerAdds plant-level communications, commissioning and supported control coordination. Use only after the exact SmartLogger suffix, RS485 topology, inverter firmware and FusionSolar ownership are confirmed.
CHINT · DTSU666-H-100A
CHINT DTSU666-H 100 A Three-Phase Smart Power SensorAdds three-phase current, voltage, power and energy measurement for a compatible Huawei control architecture. Confirm service current, CT direction and location, phase sequence, RS485 address and inverter firmware before commissioning.
