7 independent operating points
7 MPPTs track 7 deliberately designed PV zones.
Huawei publishes 21 inputs, 48 A per MPPT, 23 A per input and 66 A maximum short-circuit current per MPPT.
Huawei FusionSolarPremium

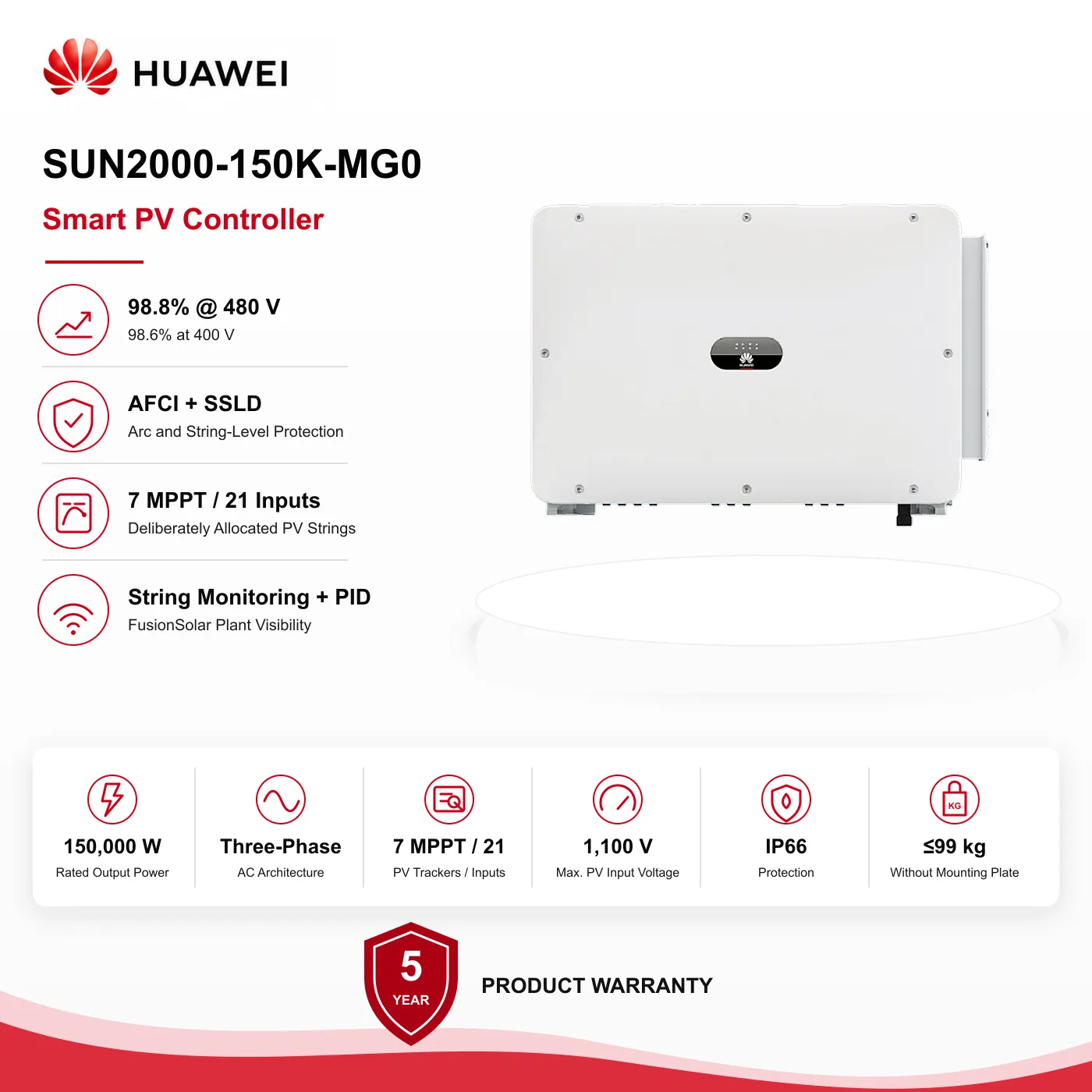

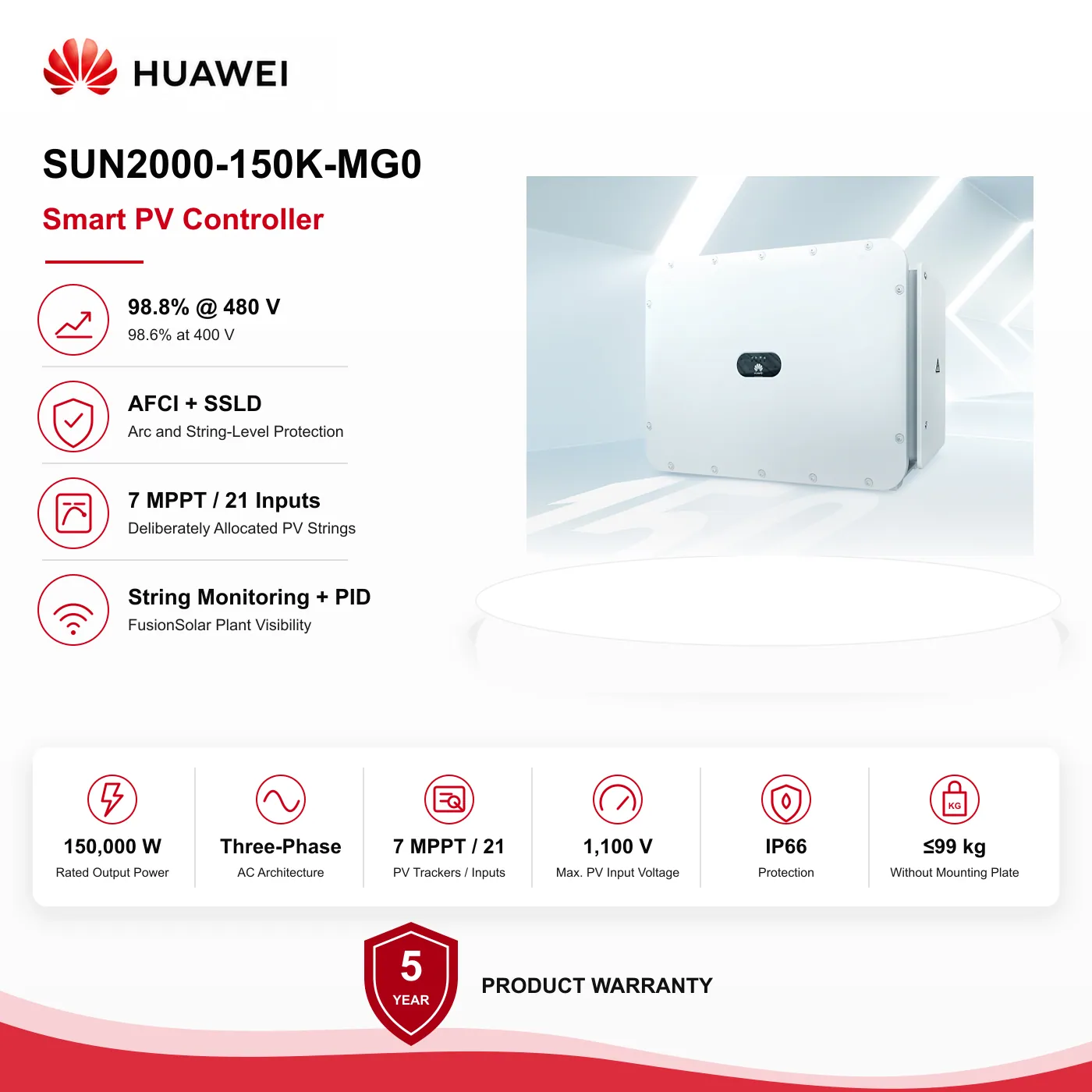

Huawei SUN2000 150 kW Three-Phase String Inverter
Exact reference · SUN2000-150K-MG0
A 150 kW grid-following inverter with 7 independent MPPTs and 21 physical PV inputs. It has no battery interface, backup output, transfer switch or off-grid mode.
- Three-phase output
- 150,000 W · 165,000 VA maximum
Defines inverter capacity, not the approved array or site service.
- PV tracking
- 7 MPPTs · 21 inputs
up to three per MPPT remain governed by per-input and combined-tracker limits.
- PV operating window
- 200–1,000 V · 1,100 V maximum
Every string must remain inside the valid range across temperature.
- Input current limits
- 48 A per MPPT · 23 A per input · 66 A Isc
High-current modules and parallel strings require explicit validation.
- Grid-following boundary
- No storage or backup operation
A valid AC reference is required; this inverter does not form an islanded grid.
Do not select the 150 kW reference from nominal power alone. Confirm every string, MPPT allocation, 380/400/480 V service, AC current, protection, conductors, cooling clearances and plant-control architecture.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
The SUN2000-150K-MG0 converts DC power from up to 21 deliberately allocated PV string inputs into grid-synchronised three-phase AC. 7 MPPTs track 7 suitable operating points. Utility and protected distribution remain directly connected on the AC side.
Relevant applications
- Large commercial three-phase PV arrays
- Projects with several deliberately separated string zones
- Plants requiring string-fault monitoring and FusionSolar commissioning
Why ReneWave may shortlist it
- 7 MPPTs can separate suitably designed operating points.
- 21 inputs allow up to three per MPPT without making them arbitrary or independent.
- AFCI, Smart String Level Disconnector, string-fault monitoring and PID recovery support plant protection and fault follow-up.
Built-in capabilities
Four functions, read before the headline specifications.
PV DC becomes three-phase AC
The inverter converts available PV power into synchronised commercial AC.
Rated output is 150,000 W with 165,000 VA maximum apparent power.
String faults remain visible
String monitoring supports commissioning and operational diagnosis.
RS485 and optional communications equipment connect the reviewed monitoring architecture.
Commercial protection functions
AFCI · Smart String Level Disconnector · string-fault monitoring · PID recovery are documented functions.
External project protection, conductors and earthing remain design work.
Inside the energy system
One inverter. Different energy paths.
Solar conversion follows the utility AC reference. No battery or backup path is shown.
21 designed inputs pass through 7 MPPTs and the inverter to serve protected site loads.
Read the technical explanation
Seven trackers and twenty-one inputs for a deliberately structured commercial array.
The SUN2000-150K-MG0 is a grid-following commercial string inverter. It does not accept batteries or provide backup power. 21 physical inputs are grouped behind 7 MPPTs and must be calculated accordingly.
02 · Specifications
Ratings, dimensions and practical consequence.
PV input
- Maximum input voltage
1,100 V
- MPPT range
200–1,000 V
- PV inputs
7 MPPTs · 21 inputs total
- Current limits
48 A per MPPT · 23 A per input · 66 A maximum Isc per MPPT
Three-phase AC output
- Rated / maximum apparent power
150,000 W · 165,000 VA
- Output service
380/400/480 V three phase · 227.9/253.2 A at 380 V · 216.5/240.5 A at 400 V · 180.4/200.5 A at 480 V nominal/maximum
- Maximum / European efficiency
98.6% at 400 V · 98.8% at 480 V · 98.4%
Enclosure and supervision
- Integrated functions
AFCI · Smart String Level Disconnector · string-fault monitoring · PID recovery
- Enclosure and cooling
IP66 · smart-air cooling
- Dimensions
1,000 × 710 × 395 mm
- Weight
≤99 kg without mounting plate
03 · Confirm before quotation
Four checks before this reference is quoted.
ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.
- 01
PV strings and MPPTs
Confirm cold Voc, voltage, current and allocation for all 21 inputs and 7 trackers.
- 02
Three-phase AC service
Confirm 380/400/480 V service, grid code, full-load range and AC current.
- 03
Protection and cooling
Confirm isolation, conductors, surge coordination, earthing, mounting and smart-air clearances.
- 04
Plant monitoring and control
Confirm RS485, metering, SmartLogger, FusionSolar ownership and commissioned settings.
04 · Documents & warranty
Keep the exact reference traceable.
Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.
SUN2000-150K-MG0 Final Datasheetdatasheet · Global exact-model record · EnglishFinal current edition · ≤99 kg without mounting plate · exact reference
SUN2000-(50K, 75K, 80K, 150K)-MG Series User Manualmanual · Global · EnglishIssue 18 · 2026-06-30 · product family
SUN2000-(50K, 75K, 80K, 150K)-MG Series Quick Guideinstallation · Global · English / multilingualIssue 04 · current verified edition · product family
Huawei C&I Inverter PV Warranty Policy · Oversea V2.0warranty · Oversea C&I · order-specific terms apply · EnglishIssue 03 · 2024-11-30 · product family
Manufacturer warranty reference
5 years · applicable non-European C&I policy
- Manufacturer commercial warranty subject to the locally retained policy and exact supplied product record
- ReneWave Customer Care manages the case and retained documentation
05 · Complete the system
Accessories and adjacent equipment, in one request.
Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.
