10 independent operating points
10 MPPTs track 10 deliberately designed PV zones.
Huawei publishes 20 inputs, 30 A per MPPT, 20 A per input and 40 A maximum short-circuit current per MPPT.
Huawei FusionSolarPremium

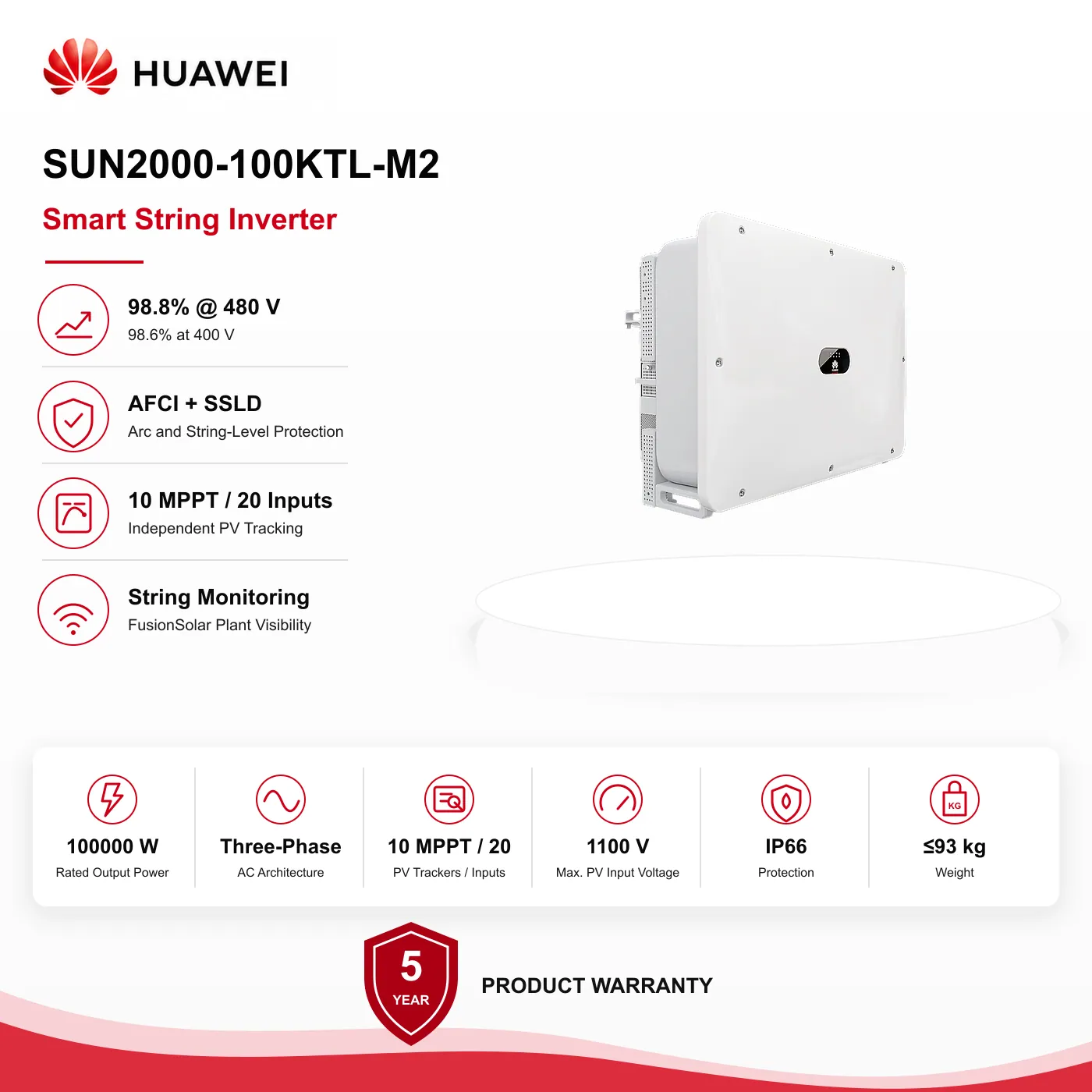

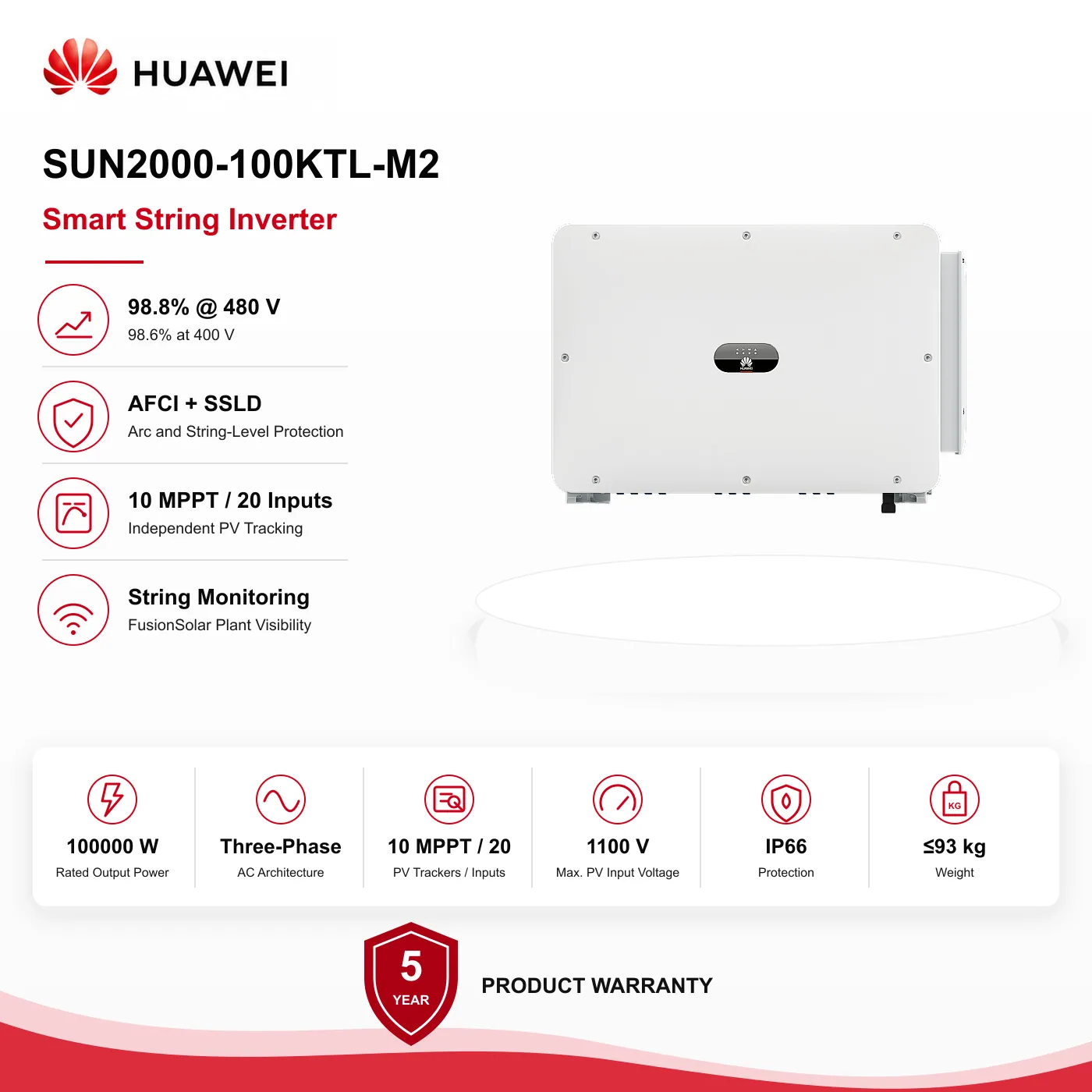

Huawei SUN2000 100 kW Three-Phase String Inverter
Exact reference · SUN2000-100KTL-M2
A 100 kW grid-following inverter with 10 independent MPPTs and 20 physical PV inputs. It has no battery interface, backup output, transfer switch or off-grid mode.
- Three-phase output
- 100,000 W · 110,000 VA maximum
Defines inverter capacity, not the approved array or site service.
- PV tracking
- 10 MPPTs · 20 inputs
two per MPPT remain governed by per-input and combined-tracker limits.
- PV operating window
- 200–1,000 V · 1,100 V maximum
Every string must remain inside the valid range across temperature.
- Input current limits
- 30 A per MPPT · 20 A per input · 40 A Isc
High-current modules and parallel strings require explicit validation.
- Grid-following boundary
- No storage or backup operation
A valid AC reference is required; this inverter does not form an islanded grid.
Do not select the 100 kW reference from nominal power alone. Confirm every string, MPPT allocation, 380/400/480 V service, AC current, protection, conductors, cooling clearances and plant-control architecture.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
The SUN2000-100KTL-M2 converts DC power from up to 20 deliberately allocated PV string inputs into grid-synchronised three-phase AC. 10 MPPTs track 10 suitable operating points. Utility and protected distribution remain directly connected on the AC side.
Relevant applications
- Large commercial three-phase PV arrays
- Projects with several deliberately separated string zones
- Plants requiring string-fault monitoring and FusionSolar commissioning
Why ReneWave may shortlist it
- 10 MPPTs can separate suitably designed operating points.
- 20 inputs allow two per MPPT without making them arbitrary or independent.
- AFCI, string monitoring and the Smart String Level Disconnector support plant protection and fault follow-up.
Built-in capabilities
Four functions, read before the headline specifications.
PV DC becomes three-phase AC
The inverter converts available PV power into synchronised commercial AC.
Rated output is 100,000 W with 110,000 VA maximum apparent power.
String faults remain visible
String monitoring supports commissioning and operational diagnosis.
RS485 and optional communications equipment connect the reviewed monitoring architecture.
Commercial protection functions
AFCI · Smart String Level Disconnector · string-fault monitoring are documented functions.
External project protection, conductors and earthing remain design work.
Inside the energy system
One inverter. Different energy paths.
Solar conversion follows the utility AC reference. No battery or backup path is shown.
20 designed inputs pass through 10 MPPTs and the inverter to serve protected site loads.
Read the technical explanation
More commercial output within Huawei’s 10-tracker M2 architecture.
The SUN2000-100KTL-M2 is a grid-following commercial string inverter. It does not accept batteries or provide backup power. 20 physical inputs are grouped behind 10 MPPTs and must be calculated accordingly.
02 · Specifications
Ratings, dimensions and practical consequence.
PV input
- Maximum input voltage
1,100 V
- MPPT range
200–1,000 V
- PV inputs
10 MPPTs · 20 inputs total
- Current limits
30 A per MPPT · 20 A per input · 40 A maximum Isc per MPPT
Three-phase AC output
- Rated / maximum apparent power
100,000 W · 110,000 VA
- Output service
380/400/480 V three phase · exact current follows the selected service voltage
- Maximum / European efficiency
98.6% at 400 V · 98.8% at 480 V · 98.4% at 400 V · 98.6% at 480 V
Enclosure and supervision
- Integrated functions
AFCI · Smart String Level Disconnector · string-fault monitoring
- Enclosure and cooling
IP66 · smart-air cooling
- Dimensions
1,035 × 700 × 365 mm
- Weight
≤93 kg
03 · Confirm before quotation
Four checks before this reference is quoted.
ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.
- 01
PV strings and MPPTs
Confirm cold Voc, voltage, current and allocation for all 20 inputs and 10 trackers.
- 02
Three-phase AC service
Confirm 380/400/480 V service, grid code, full-load range and AC current.
- 03
Protection and cooling
Confirm isolation, conductors, surge coordination, earthing, mounting and smart-air clearances.
- 04
Plant monitoring and control
Confirm RS485, metering, SmartLogger, FusionSolar ownership and commissioned settings.
04 · Documents & warranty
Keep the exact reference traceable.
Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.
SUN2000-100KTL-M2 Datasheetdatasheet · Global exact-model record · EnglishCurrent official edition · verified 2026-08 · exact reference
SUN2000-(75KTL-M1, 100KTL-M2, 110KTL-M2, 115KTL-M2) User Manualmanual · Global · EnglishIssue 28 · 2026-06-30 · product family
Huawei Smart PV Warranty Policy · Non-European V1.2warranty · Non-European C&I · order-specific terms apply · EnglishV1.2 · 2026-04-13 · product family
Manufacturer warranty reference
5 years · applicable non-European C&I policy
- Manufacturer commercial warranty subject to the locally retained policy and exact supplied product record
- ReneWave Customer Care manages the case and retained documentation
05 · Complete the system
Accessories and adjacent equipment, in one request.
Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.
Recommended companions
Huawei FusionSolar · SMARTLOGGER3000A
Huawei SmartLogger3000A PV Plant Communications ControllerAdds plant-level communications, commissioning and supported control coordination. Use only after the exact SmartLogger suffix, plant communications design, inverter firmware and commissioned control architecture are confirmed.
