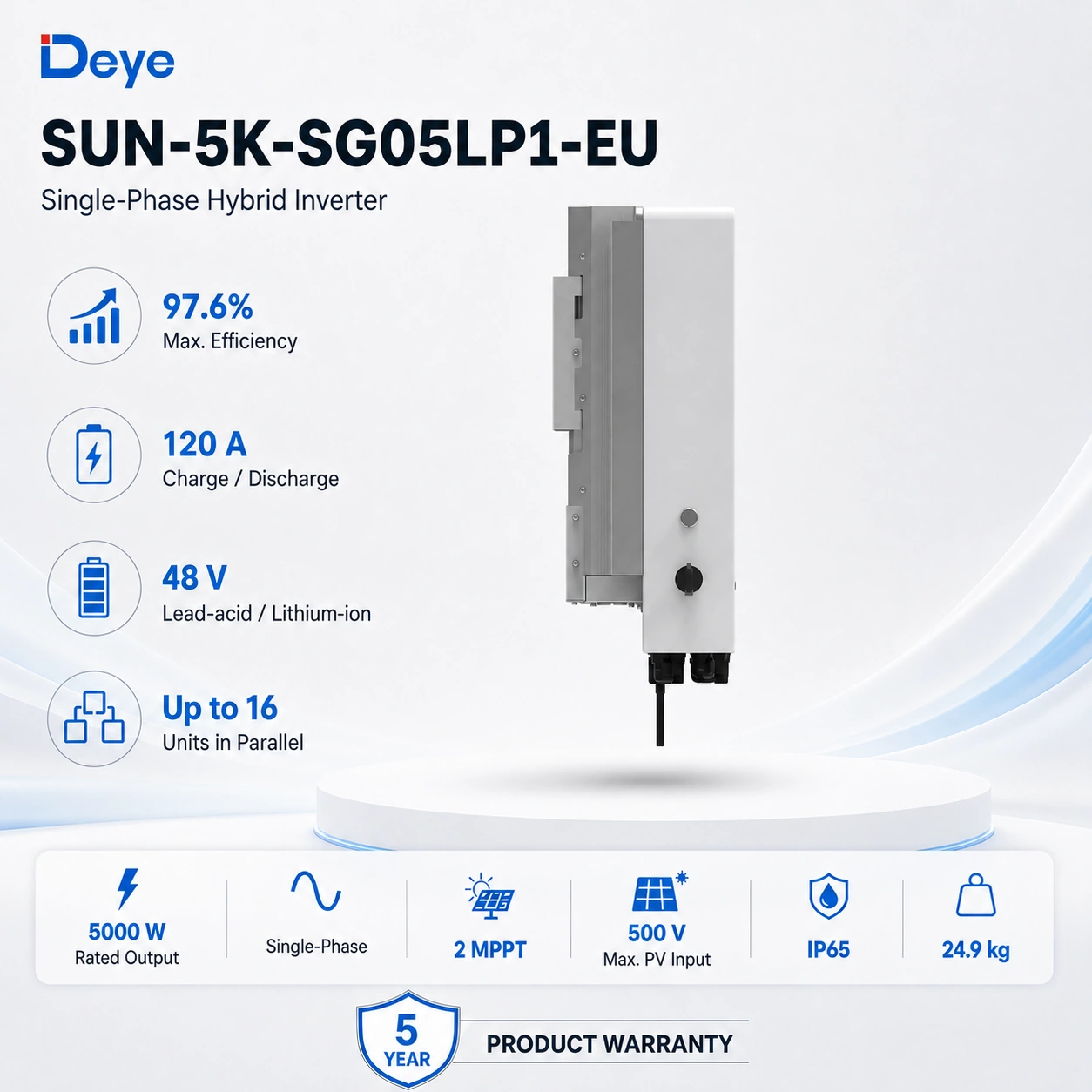

Front presentation of the Deye SUN-5K-SG05LP1-EU hybrid inverter
    Front view · approved Deye presentation with verified 5 kW, two-MPPT and 48 V battery facts.
    DeyeBest Value

    Deye SUN 5 kW Single-Phase Low-Voltage Hybrid Inverter

    Exact reference · SUN-5K-SG05LP1-EU

    A single-phase hybrid inverter integrating two PV trackers, solar conversion, a bidirectional 48 V battery inverter/charger and a dedicated selected-load output. The battery, BMS, protection, meter, generator and installation remain separate.

    AC output
    5,000 W rated · 5,500 VA maximum

    Defines the output class; selected-load demand and surge behavior still require calculation.

    PV input
    6,500 W maximum · 2 MPPTs

    One calculated string per tracker must remain inside voltage and current limits.

    PV operating window
    150–425 V · 500 V maximum

    Cold string voltage and normal operation must both remain within the published boundaries.

    Battery interface
    40–60 V · 120 A charge/discharge

    Battery chemistry, BMS, conductors and protection determine whether the system can use the limit safely.

    Backup behavior
    2× rated off-grid peak for 10 seconds

    This is a short published surge condition, not permission to place the complete site on the protected output.

    Do not select this inverter from 5 kW or 48 V alone. Confirm PV current, battery and BMS behavior, load demand, surge requirements, AC architecture and generator-port configuration.

    Pricing confirmed by quote

    The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    The SUN-5K-SG05LP1-EU receives DC power from two designed PV strings, converts it into single-phase AC and can charge or discharge a separately selected 48 V battery. Its dedicated load output can support selected circuits during an outage. Utility, generator, battery and load paths still require external protection, compatible equipment and commissioned settings.

    Relevant applications

    • Single-phase homes and professional sites requiring coordinated solar and 48 V storage
    • Projects with selected essential loads that need a separately protected backup circuit
    • Systems where a documented generator input may charge storage or support selected loads

    Why ReneWave may shortlist it

    • Two MPPTs can track two separately calculated PV string groups.
    • The 40–60 V battery interface supports a deliberately selected lead-acid or compatible lithium battery system.
    • A dedicated load output can support selected circuits when utility power is unavailable.
    • The configurable GEN port can support one commissioned role at a time: generator input, smart-load output or AC coupling.

    Built-in capabilities

    Four functions, read before the headline specifications.

    Two PV operating points

    Two MPPTs track two separately calculated PV strings.

    Each tracker is limited to 13 A operating current and 17 A short-circuit current.

    Single-phase solar conversion

    Available PV power is converted into controlled 220/230 V single-phase AC.

    Rated output is 5,000 W with 5,500 VA maximum apparent power.

    Bidirectional 48 V storage

    The inverter can charge and discharge a separately selected 40–60 V battery system.

    The published maximum charge and discharge current is 120 A.

    Grid, backup and GEN-port control

    Dedicated grid, protected-load and configurable GEN interfaces coordinate valid operating states.

    The GEN port is assigned one commissioned function at a time.

    Inside the energy system

    One inverter. Different energy paths.

    Solar conversion inside the inverter. Storage, external protection and configured load circuits remain separate.

    PV passes through both MPPTs and the inverter to serve the selected protected-load circuit.

    The GEN port is configured for one role at a time. This diagram shows generator input only in Generator support mode.

    Six operating states show two PV strings feeding integrated MPPTs and the Deye hybrid inverter. The inverter can serve selected loads, charge or discharge a separate 48 V battery, accept conditional utility charging or use a separately configured generator input. Utility and generator input are never shown active together. PV passes through both MPPTs and the inverter to serve the selected protected-load circuit.Two designedPV stringsone per MPPTlimits verifiedTwo integratedMPPTs150–425 V13 A eachDeye SUN5K-SG05LP1-EUhybrid · single phaseProtected loadoutputdedicated circuitprotection separateSelectedsite loadsdemand + surgeverifiedCompatible 48 Vbattery system40–60 V · BMS verifiedUtility supplygrid portmetered separatelyGeneratorconfigured GEN portseparate equipmentSix operating states show two PV strings feeding integrated MPPTs and the Deye hybrid inverter. The inverter can serve selected loads, charge or discharge a separate 48 V battery, accept conditional utility charging or use a separately configured generator input. Utility and generator input are never shown active together. PV passes through both MPPTs and the inverter to serve the selected protected-load circuit.Two designedPV stringsone per MPPTlimits verifiedTwo integratedMPPTs150–425 V13 A eachDeye SUN5K-SG05LP1-EUhybrid · single phaseProtected outputseparate load circuitSelected site loadsdemand + surge verified48 V battery system40–60 V · BMS checkedUtility supplygrid portmetered separatelyGeneratorconfigured GEN portseparate equipmentSix operating states show two PV strings feeding integrated MPPTs and the Deye hybrid inverter. The inverter can serve selected loads, charge or discharge a separate 48 V battery, accept conditional utility charging or use a separately configured generator input. Utility and generator input are never shown active together. PV passes through both MPPTs and the inverter to serve the selected protected-load circuit.Two designed PV stringsone per MPPT · limits verifiedTwo integrated MPPTs150–425 V · 13 A eachDeye SUN · 5K-SG05LP1-EUhybrid · single phaseProtected load outputdedicated circuit · protectedSelected site loadsdemand + surge verifiedCompatible 48 V battery40–60 V · BMS verifiedUtility supplygrid port · metered separatelyGeneratorconfigured GEN port · separate

    Active power path Inactive path

    Conceptual operation, not a wiring plan. Separate equipment, protection, firmware and commissioning must be verified.

    Read the technical explanation

    Solar conversion, 48 V storage and selected-load backup in one coordinated inverter.

    The Deye SUN-5K-SG05LP1-EU combines two photovoltaic trackers, single-phase conversion, a bidirectional low-voltage battery inverter/charger and a dedicated protected-load output. It can coordinate utility or a separately configured generator input, but the complete system still requires the correct battery, BMS, metering, external protection and commissioned settings.

    Functional boundary

    The GEN port is configurable. It cannot be generator input, smart-load output and AC-coupling input at the same time. Backup capability applies to the deliberately selected and protected load circuit, not automatically to every site load.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    PV input

    Maximum PV input

    6,500 W

    Trackers and strings

    2 MPPTs · 1 string each

    Voltage range

    150–425 V MPPT · 500 V maximum · 125 V startup

    Current limits

    13 A operating · 17 A Isc per MPPT

    Single-phase AC

    Rated / maximum apparent output

    5,000 W · 5,500 VA

    Nominal service

    220/230 V · L+N+PE · 50/60 Hz

    Efficiency

    97.6% maximum · 96.5% European weighted

    Off-grid peak

    2× rated power for 10 seconds

    Battery and control

    Battery range

    40–60 V · lead-acid or compatible lithium

    Charge / discharge current

    120 A maximum

    Generator interface

    Configurable GEN port · one role at a time

    Parallel operation

    Up to 16 documented units under validated conditions

    Enclosure

    Dimensions

    330 × 580 × 232 mm

    Weight

    24.9 kg

    Protection and cooling

    IP65 · intelligent air cooling

    Noise

    <30 dB published level

    03 · Confirm before quotation

    Four checks before this reference is quoted.

    ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.

    1. 01

      PV strings and MPPTs

      Confirm cold Voc, operating voltage, 13 A operating current, 17 A Isc, module count and one-string allocation per tracker.

    2. 02

      Battery and selected loads

      Confirm 40–60 V battery behavior, chemistry, BMS, 120 A current path, usable capacity, load demand and surge.

    3. 03

      AC and protection architecture

      Confirm utility service, dedicated protected circuits, isolation, conductors, protection, earthing and cooling clearances.

    4. 04

      GEN port and commissioning

      Confirm the single GEN-port role, CT/meter direction, firmware, communications, parallel settings and operating schedule.

    04 · Documents & warranty

    Keep the exact reference traceable.

    Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.

    Manufacturer warranty reference

    5 years standard · optional extension only when ordered

    • Manufacturer inverter warranty subject to market, serial, installation and accepted order
    • ReneWave Customer Care manages the retained documents and case route
    Customer Care

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.

    No additional equipment is published for this reference. Required accessories are confirmed during quotation.
