Three calculated PV operating points
Three MPPTs track three separately calculated groups using six inputs arranged 2+2+2.
Each tracker publishes 36 A operating and 54 A short-circuit-current limits.
DeyeBest Value

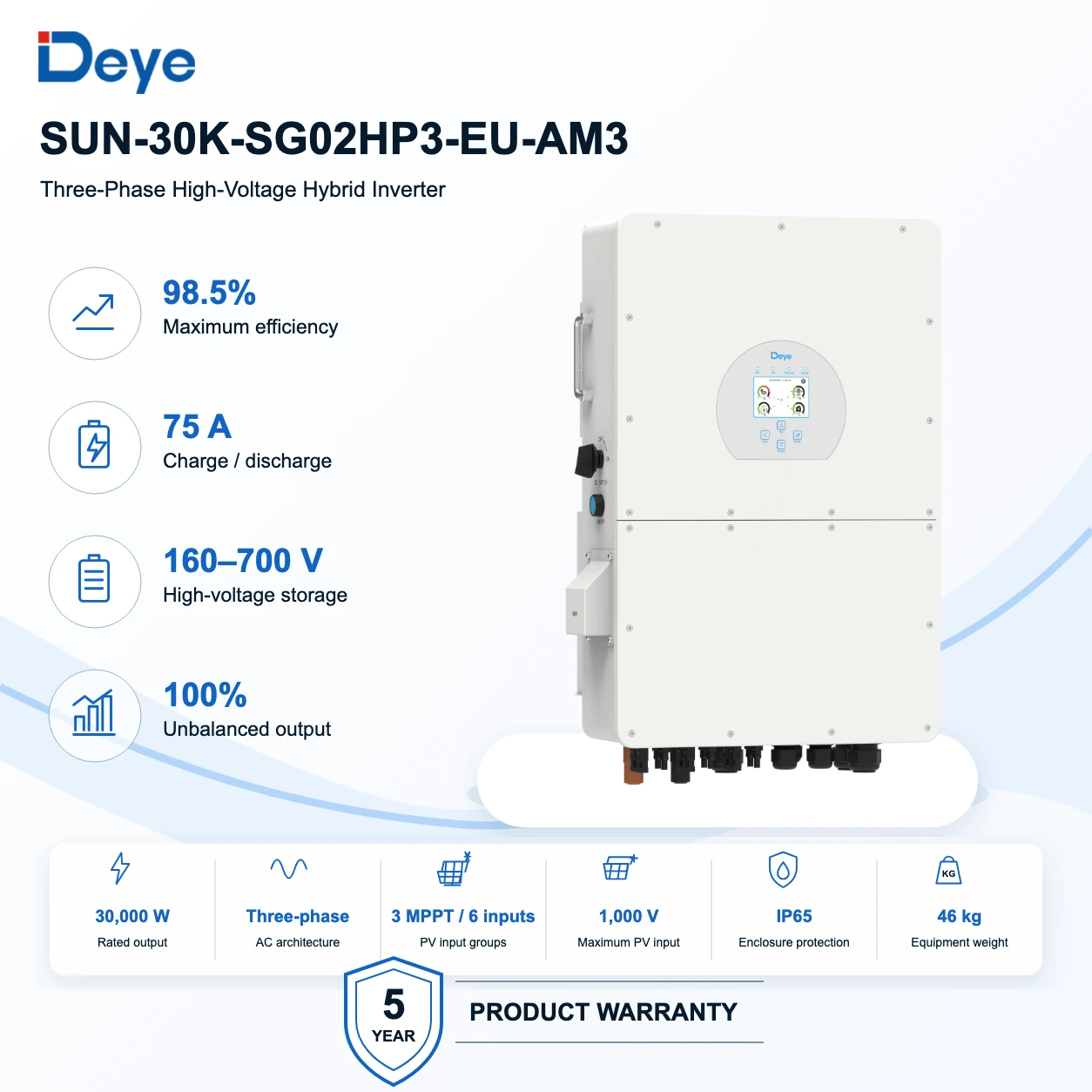

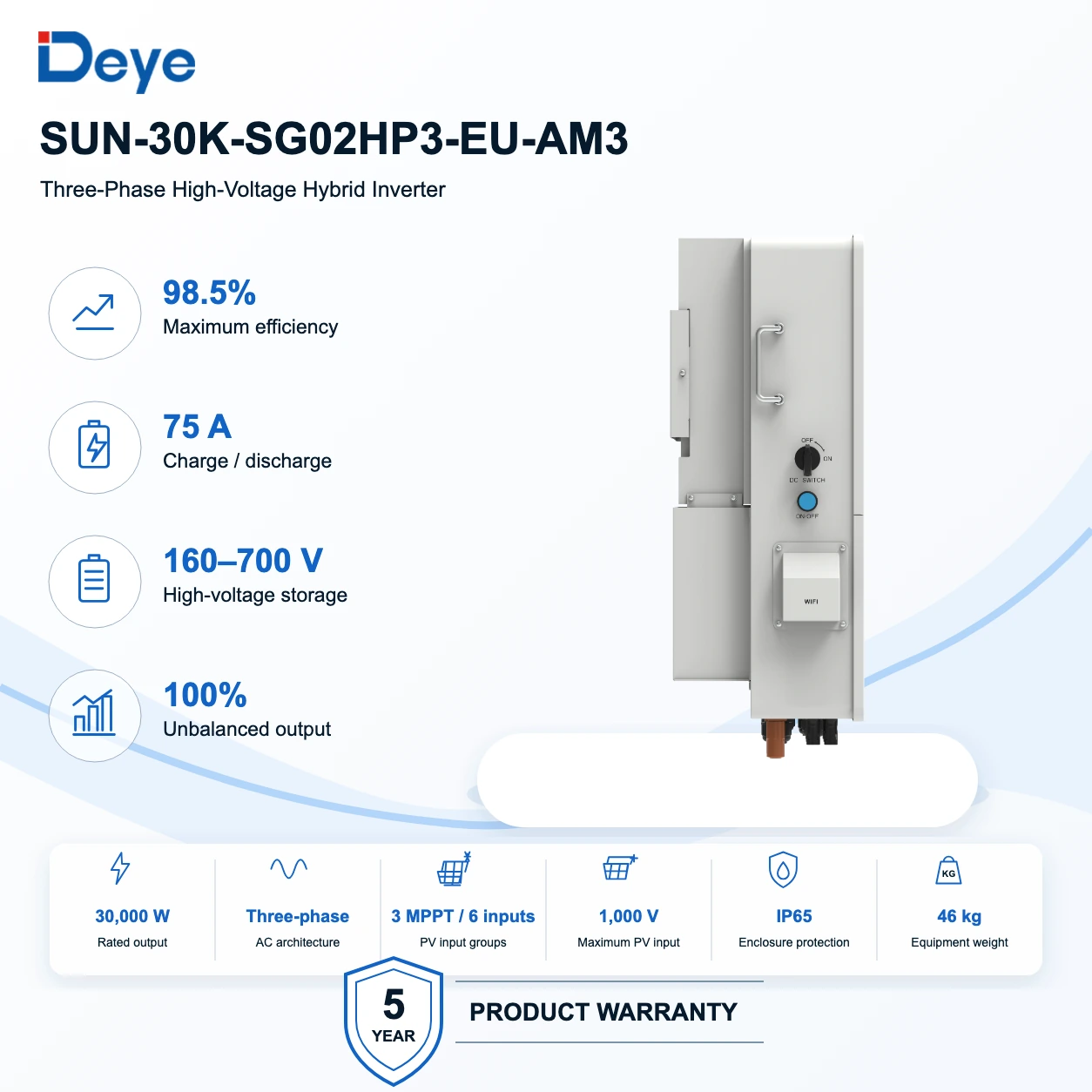

Deye SUN 30 kW Three-Phase High-Voltage Hybrid Inverter
Exact reference · SUN-30K-SG02HP3-EU-AM3
A 30 kW three-phase hybrid inverter integrating three PV trackers, one high-voltage lithium battery interface, selected-load output and one configurable generator port. The battery, BMS, metering, protection and generator remain separate.
- AC output
- 30,000 W rated · 33,000 VA maximum
Service capacity, continuous current, phase allocation and surge behavior still require calculation.
- PV design boundary
- 60,000 W access · 48,000 W input
Access and input limits are distinct; the complete array must satisfy power, voltage, current and clipping checks.
- PV allocation
- 3 MPPTs · 6 inputs arranged 2+2+2
Six connectors remain grouped behind three trackers and are not six independent channels.
- Battery interface
- 1 lithium input · 160–700 V · 75 A
The exact battery, BMS, conductors and protection must support the intended operating current.
- Protected-load path
- 80 A pass-through · 45 kW peak for 10 seconds
Selected circuits and surge loads must remain within the complete protected architecture.
Do not select this inverter from 30 kW or high-voltage storage alone. Confirm the 2+2+2 string allocation, battery and BMS current path, three-phase service, selected loads, surge demand and generator-port configuration.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
The SUN-30K-SG02HP3-EU-AM3 receives six designed PV inputs grouped behind three MPPTs, converts solar or battery DC into controlled three-phase AC and coordinates a separately protected load output. Utility, generator and storage operation depend on separate equipment, protection and commissioned settings.
Relevant applications
- Larger three-phase hospitality, agricultural and professional sites requiring coordinated solar and high-voltage storage
- Arrays suited to six designed string inputs grouped two per MPPT
- Projects with deliberately selected protected loads and a separately engineered generator path
Why ReneWave may shortlist it
- Three MPPTs coordinate three separately calculated operating groups with two inputs each.
- The 160–700 V storage interface supports a published 75 A charge and discharge boundary.
- The three-phase output publishes 100% unbalanced operation, while phase allocation still requires calculation.
- The configurable GEN port can perform one commissioned role at a time.
Built-in capabilities
Four functions, read before the headline specifications.
30 kW three-phase conversion
Available PV or battery power is converted into controlled three-phase AC.
Rated output is 30,000 W with 33,000 VA maximum apparent power.
High-voltage lithium storage
One input connects a separately validated 160–700 V lithium battery architecture.
The published maximum charge and discharge current is 75 A.
Grid, backup and GEN control
Grid, protected-load and configurable GEN interfaces coordinate valid operating states.
The GEN port is assigned one commissioned function at a time.
Inside the energy system
One inverter. Different energy paths.
Solar conversion inside the inverter. Storage, external protection and configured load circuits remain separate.
PV passes through three MPPTs and the inverter to serve selected protected three-phase loads.
The GEN port is configured for one role at a time. This diagram shows generator input only in Generator support mode.
Read the technical explanation
Three-phase solar and high-voltage storage within one coordinated 30 kW hybrid architecture.
The Deye SUN-30K-SG02HP3-EU-AM3 combines three photovoltaic trackers, three-phase conversion, one high-voltage lithium battery interface and a protected-load output. Six PV connectors remain grouped behind three MPPTs. The complete system still requires a validated battery and BMS, metering, external protection and commissioned settings.
Functional boundary
The GEN port is configurable and performs one role at a time. AC coupling is conditional rather than a separate simultaneous operating mode. A 160–700 V storage range does not establish universal battery compatibility, and unbalanced output does not remove the need to calculate phase loads, conductors and protection.
02 · Specifications
Ratings, dimensions and practical consequence.
PV input
- PV access / input power
60,000 W access · 48,000 W input
- Trackers and inputs
3 MPPTs · 6 inputs arranged 2+2+2
- Voltage range
150–850 V MPPT · 1,000 V maximum · 180 V startup
- Current limits
36 A operating · 54 A Isc per MPPT
Three-phase AC
- Rated / maximum output
30,000 W · 33,000 VA
- Rated current
45.5 A at 380 V · 43.5 A at 400 V
- Maximum current
50 A at 380 V · 47.9 A at 400 V
- Efficiency
98.5% maximum · 98.0% European weighted
Battery and control
- Battery input and range
1 lithium input · 160–700 V
- Charge / discharge current
75 A maximum
- AC pass-through
80 A continuous
- Off-grid peak
45 kW for 10 seconds
Enclosure
- Dimensions
448 × 688 × 270 mm excluding connectors and brackets
- Weight
46 kg
- Protection and cooling
IP65 · intelligent air cooling
- Parallel operation
Up to 10 units under documented conditions
03 · Confirm before quotation
Four checks before this reference is quoted.
ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.
- 01
PV strings and MPPT allocation
Confirm cold Voc, 150–850 V operation, 36 A operating current, 54 A Isc, module count and exact 2+2+2 allocation.
- 02
High-voltage storage and phase loads
Confirm 160–700 V behavior, exact lithium battery, BMS protocol, 75 A current path, usable capacity, per-phase demand and surge.
- 03
Three-phase AC architecture
Confirm service capacity, 80 A pass-through path, phase allocation, selected circuits, conductors, protection, earthing and cooling clearance.
- 04
GEN port and commissioning
Confirm the single GEN-port role, CT or meter direction, firmware, communications, parallel settings and operating schedule.
04 · Documents & warranty
Keep the exact reference traceable.
Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.
Deye Inverter Warranty Terms and Conditionswarranty · Global except mainland China · accepted order controls · EnglishVersion 1.7 · 2023 · product family
Deye SUN-SG02HP3-EU-AM3 Family Datasheetdatasheet · EU / EMEA family record · English2026-01-14 · product family
Deye SUN-SG02HP3-EU-AM3 User Manualmanual · EU / EMEA family record · English2026-02-24 · product family
Deye SUN-SG02HP3-EU-AM3 EU Declaration of Conformitycertificate · European Union · EnglishDOC-DY260525002 · 2026-05-25 · exact reference
Deye SUN-SG02HP3-EU-AM3 EN 50549 Certificatecertificate · Netherlands EN 50549 family record · English2025-10-27 publication · product family
Deye SUN-SG02HP3-EU-AM3 EN 62109 Safety Certificatecertificate · Global family record · English2025-08-04 publication · product family
Deye SUN-SG02HP3-EU-AM3 IEC Grid and Anti-Islanding Certificatecertificate · Global family record · English2026-03-12 · product family
Manufacturer warranty reference
5 years standard · extension only when ordered
- Manufacturer inverter warranty subject to market, serial, installation and accepted order
- ReneWave Customer Care manages the retained documents and case route
05 · Complete the system
Accessories and adjacent equipment, in one request.
Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.
No additional equipment is published for this reference. Required accessories are confirmed during quotation.
