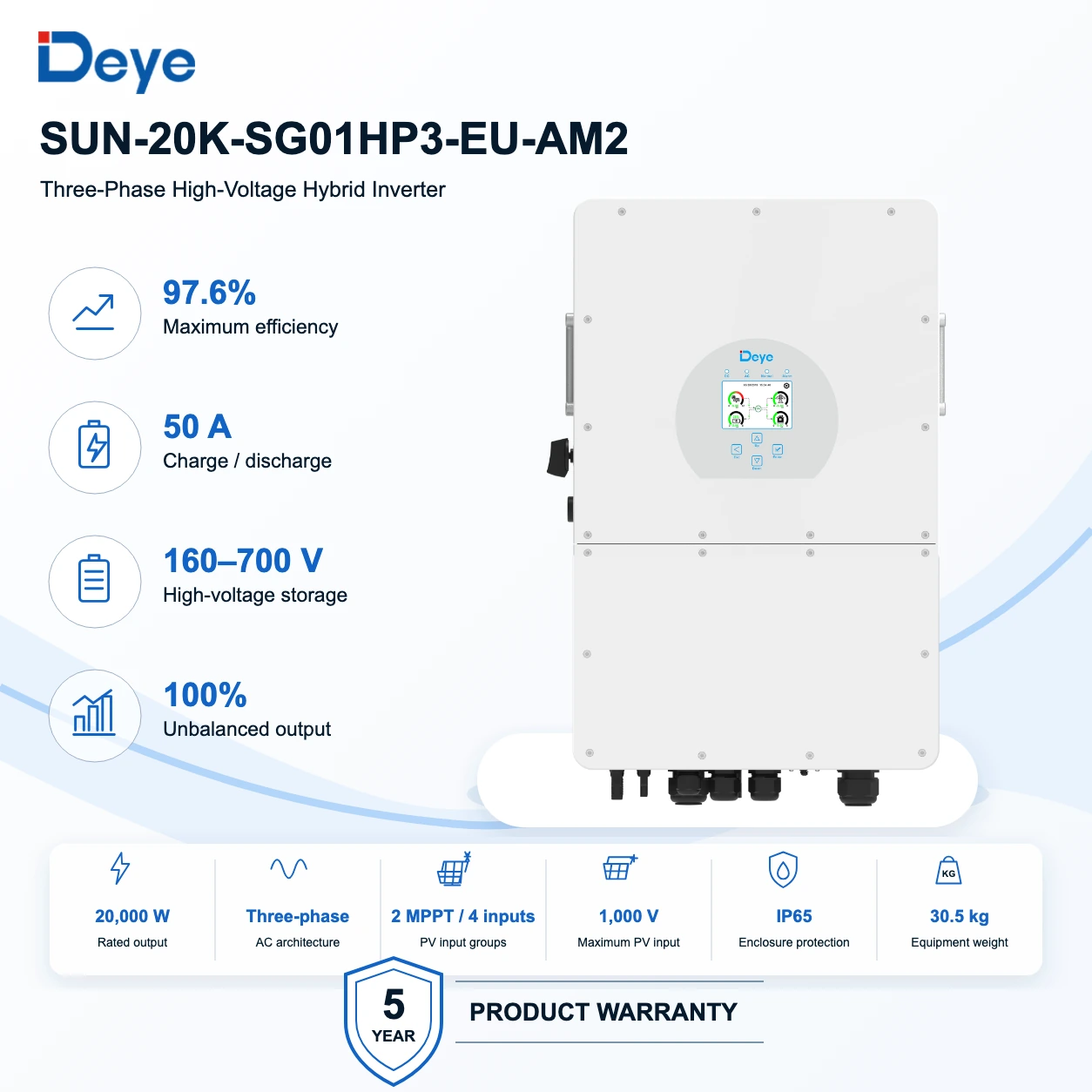

Front presentation of the Deye SUN-20K-SG01HP3-EU-AM2 three-phase high-voltage hybrid inverter
    Front view · official AM2 family enclosure with verified 20 kW, 2+2 PV-input and 50 A high-voltage storage facts.
    DeyeBest Value

    Deye SUN 20 kW Three-Phase High-Voltage Hybrid Inverter

    Exact reference · SUN-20K-SG01HP3-EU-AM2

    A 20 kW three-phase hybrid inverter integrating two PV trackers, one high-voltage lithium battery interface, selected-load output and one configurable generator port. The battery, BMS, metering, protection and generator remain separate.

    AC output
    20,000 W rated · 22,000 VA maximum

    Service capacity, continuous current, phase allocation and surge behavior still require calculation.

    PV design boundary
    40,000 W access · 32,000 W input

    The complete array must satisfy power, voltage, current and clipping checks.

    PV allocation
    2 MPPTs · 4 inputs arranged 2+2

    Four connectors remain grouped behind two trackers and are not four independent channels.

    Battery interface
    1 input · 160–700 V · 50 A

    The exact lithium battery, BMS, conductors and protection must support the intended operating current.

    Three-phase behavior
    100% unbalanced · published per-phase boundary

    Selected loads and each phase must be designed deliberately.

    Do not select this inverter from 20 kW or high-voltage storage alone. Confirm string allocation, battery voltage and current, BMS protocol, phase loading, surge demand, AC service and GEN-port assignment.

    Pricing confirmed by quote

    The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    The SUN-20K-SG01HP3-EU-AM2 receives four designed PV inputs grouped behind two MPPTs, converts solar or battery DC into controlled three-phase AC and coordinates a separately protected load output. Utility, generator and storage operation depend on separate equipment, protection and commissioned settings.

    Relevant applications

    • Three-phase homes, hospitality and professional sites requiring coordinated solar and high-voltage storage
    • Arrays suited to four designed string inputs grouped two per MPPT
    • Projects with deliberately selected protected loads and a separately engineered generator path

    Why ReneWave may shortlist it

    • Two MPPTs coordinate two separately calculated operating groups with two inputs each.
    • The 160–700 V storage interface supports a published 50 A charge and discharge boundary.
    • The three-phase output publishes 100% unbalanced operation, subject to the per-phase limit.
    • The configurable GEN port can perform one commissioned role at a time.

    Built-in capabilities

    Four functions, read before the headline specifications.

    Two calculated PV operating points

    Two MPPTs track two separately calculated groups using four inputs arranged 2+2.

    Each tracker publishes 26 A operating and 39 A short-circuit-current limits.

    20 kW three-phase conversion

    Available PV or battery power is converted into controlled three-phase AC.

    Rated output is 20,000 W with 22,000 VA maximum apparent power.

    High-voltage lithium storage

    One input connects a separately validated 160–700 V lithium battery architecture.

    The published maximum charge and discharge current is 50 A.

    Grid, backup and GEN control

    Grid, protected-load and configurable GEN interfaces coordinate valid operating states.

    The GEN port is assigned one commissioned function at a time.

    Inside the energy system

    One inverter. Different energy paths.

    Solar conversion inside the inverter. Storage, external protection and configured load circuits remain separate.

    PV passes through two MPPTs and the inverter to serve selected protected three-phase loads.

    The GEN port is configured for one role at a time. This diagram shows generator input only in Generator support mode.

    Six operating states show four designed PV inputs arranged two plus two behind two MPPTs and the Deye 20 kW high-voltage three-phase hybrid inverter. It can serve selected loads, charge or discharge separate 160 to 700 volt lithium storage, accept conditional utility charging or use a separately configured generator input. Utility and generator input are never active together. PV passes through two MPPTs and the inverter to serve selected protected three-phase loads.Four designedPV string inputs2+2 allocationlimits verifiedTwo integratedMPPTs150–850 V26 A eachDeye SUN-20KSG01HP3-EU-AM2hybrid · three phaseProtected loadoutput80 A pass-throughprotection separateSelectedthree-phase loadsphase demand + surgeverifiedHigh-voltagelithium storage160–700 V · 50 Aseparate equipmentThree-phaseutilitygrid portmetered separatelyGeneratorconfigured GEN portseparate equipmentSix operating states show four designed PV inputs arranged two plus two behind two MPPTs and the Deye 20 kW high-voltage three-phase hybrid inverter. It can serve selected loads, charge or discharge separate 160 to 700 volt lithium storage, accept conditional utility charging or use a separately configured generator input. Utility and generator input are never active together. PV passes through two MPPTs and the inverter to serve selected protected three-phase loads.Four designedPV string inputs2+2 allocationlimits verifiedTwo integratedMPPTs150–850 V26 A eachDeye SUN20K AM2hybrid · three phaseProtected output80 A path verifiedSelected site loadsphase demand verifiedHV lithium storage160–700 V · 50 AThree-phaseutilitygrid portmetered separatelyGeneratorconfigured GEN portseparate equipmentSix operating states show four designed PV inputs arranged two plus two behind two MPPTs and the Deye 20 kW high-voltage three-phase hybrid inverter. It can serve selected loads, charge or discharge separate 160 to 700 volt lithium storage, accept conditional utility charging or use a separately configured generator input. Utility and generator input are never active together. PV passes through two MPPTs and the inverter to serve selected protected three-phase loads.Four designed PV inputs2+2 allocation · limits verifiedTwo integrated MPPTs150–850 V · 26 A eachDeye SUN20K AM2hybrid · three phaseProtected load output80 A path · protectedSelected site loadsphase demand verifiedCompatible HV storage160–700 V · 50 AThree-phase utilitygrid port · metered separatelyGeneratorconfigured GEN port · separate

    Active power path Inactive path

    Conceptual operation, not a wiring plan. Separate equipment, protection, firmware and commissioning must be verified.

    Read the technical explanation

    Three-phase solar and high-voltage storage within one coordinated hybrid architecture.

    The Deye SUN-20K-SG01HP3-EU-AM2 combines two photovoltaic trackers, three-phase conversion, one high-voltage lithium battery interface and a protected-load output. Four PV connectors remain grouped behind two MPPTs. The complete system still requires a validated battery and BMS, metering, external protection and commissioned settings.

    Functional boundary

    The GEN port is configurable and performs one role at a time. A 160–700 V storage range does not establish universal battery compatibility, and unbalanced output does not remove the need to calculate phase loads, conductors and protection.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    PV input

    PV access / input power

    40,000 W access · 32,000 W input

    Trackers and inputs

    2 MPPTs · 4 inputs arranged 2+2

    Voltage range

    150–850 V MPPT · 1,000 V maximum · 180 V startup

    Current limits

    26 A operating · 39 A Isc per MPPT

    Three-phase AC

    Rated / maximum output

    20,000 W · 22,000 VA

    Rated / maximum current

    30.4/29 A · 33.4/31.9 A at 380/400 V

    Efficiency

    97.6% maximum · 97.0% European weighted

    Off-grid peak

    1.5× rated power for 10 seconds

    Battery and control

    Battery input and range

    1 lithium input · 160–700 V

    Charge / discharge current

    50 A maximum

    AC pass-through

    80 A continuous

    Generator interface

    Configurable GEN port · one role at a time

    Enclosure

    Dimensions

    408 × 638 × 237 mm excluding connectors and brackets

    Weight

    30.5 kg

    Protection and cooling

    IP65 · intelligent air cooling

    Parallel operation

    Up to 10 units under documented conditions

    03 · Confirm before quotation

    Four checks before this reference is quoted.

    ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.

    1. 01

      PV strings and MPPT allocation

      Confirm cold Voc, operating voltage, 26 A operating current, 39 A Isc, module count and exact 2+2 allocation.

    2. 02

      High-voltage storage and phase loads

      Confirm 160–700 V behavior, exact lithium battery, BMS protocol, 50 A current path, usable capacity, per-phase demand and surge.

    3. 03

      Three-phase AC architecture

      Confirm service capacity, 80 A pass-through path, phase allocation, selected circuits, conductors, protection, earthing and cooling clearance.

    4. 04

      GEN port and commissioning

      Confirm the single GEN-port role, CT or meter direction, firmware, communications, parallel settings and operating schedule.

    04 · Documents & warranty

    Keep the exact reference traceable.

    Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.

    Manufacturer warranty reference

    5 years standard · extension only when ordered

    • Manufacturer inverter warranty subject to market, serial, installation and accepted order
    • ReneWave Customer Care manages the retained documents and case route
    Customer Care

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.

    No additional equipment is published for this reference. Required accessories are confirmed during quotation.
