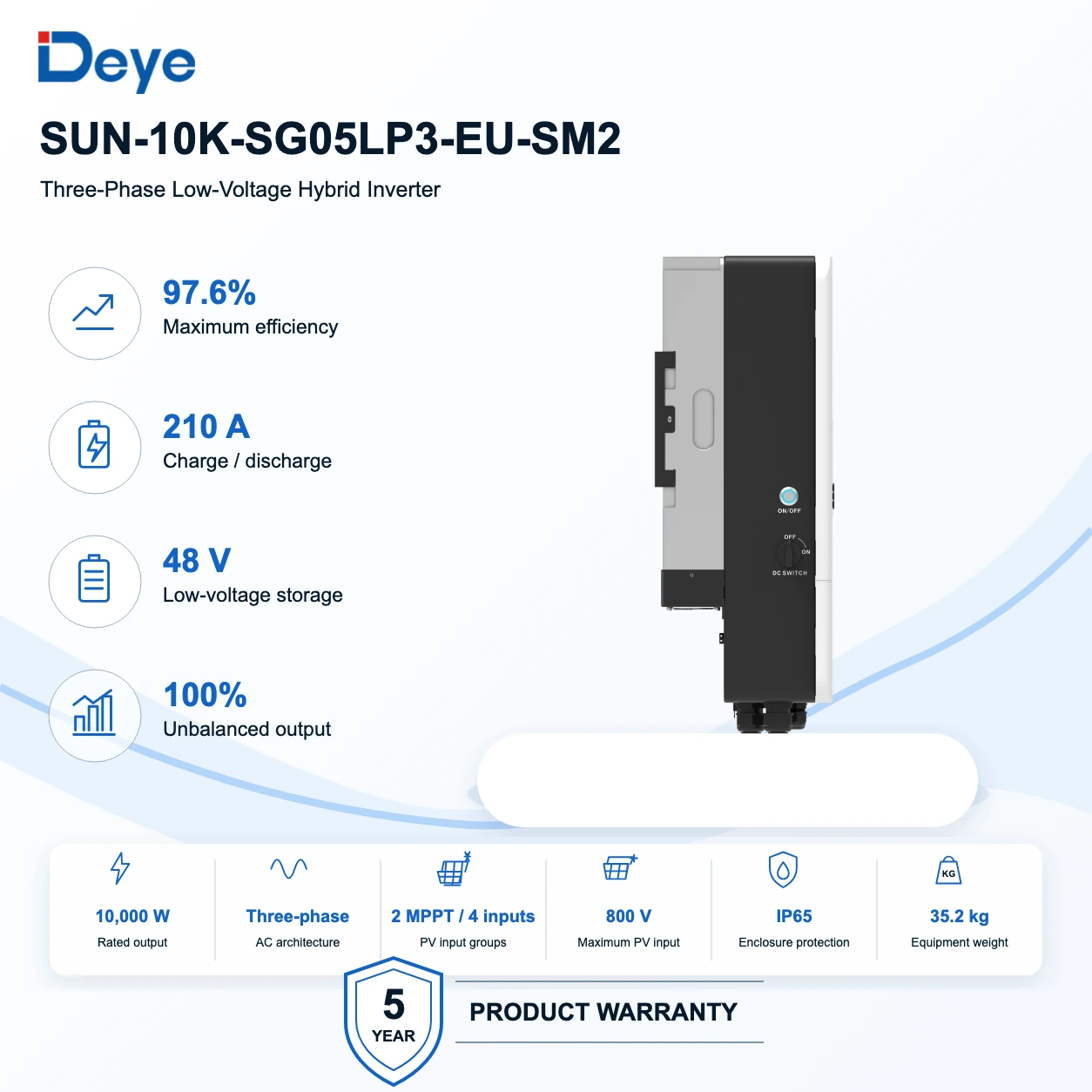

Front presentation of the Deye SUN-10K-SG05LP3-EU-SM2 three-phase hybrid inverter
    Front view · official exact-family enclosure with verified 10 kW, two-MPPT and 210 A storage-interface facts.
    DeyeBest Value

    Deye SUN 10 kW Three-Phase Low-Voltage Hybrid Inverter

    Exact reference · SUN-10K-SG05LP3-EU-SM2

    A 10 kW three-phase hybrid inverter integrating two PV trackers, bidirectional 48 V battery conversion, a protected-load output and one configurable generator port. The battery, BMS, metering, protection and generator remain separate.

    AC output
    10,000 W rated · 11,000 VA maximum

    Continuous phase current, unbalance and surge behavior still require calculation.

    PV design boundary
    20,000 W access · 16,000 W input

    The complete array must satisfy both power limits plus voltage and current checks.

    PV allocation
    2 MPPTs · 2 inputs per tracker

    Four connectors remain grouped behind two trackers and are not four independent channels.

    Battery interface
    40–60 V · 210 A charge/discharge

    The battery, BMS and complete DC path must support the intended current safely.

    Three-phase behavior
    100% unbalanced · max 50% rated per phase

    Phase allocation and selected backup loads must be designed deliberately.

    Do not select this inverter from 10 kW, three-phase or 48 V alone. Confirm PV current, battery and BMS behavior, phase loads, surge requirements, AC service and GEN-port assignment.

    Pricing confirmed by quote

    The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    The SUN-10K-SG05LP3-EU-SM2 receives four designed PV inputs grouped behind two MPPTs, converts solar or battery DC into controlled three-phase AC and can support a separately protected load output. Utility, generator and battery operation still depend on external equipment, protection and commissioned settings.

    Relevant applications

    • Three-phase homes and professional sites requiring coordinated solar and low-voltage storage
    • Arrays needing two separately calculated MPPT groups with up to two strings per tracker
    • Projects with selected protected loads and a separately engineered generator path

    Why ReneWave may shortlist it

    • Two MPPTs coordinate two separately calculated PV operating groups.
    • The 40–60 V interface publishes a 210 A charge and discharge ceiling.
    • Three-phase output can operate with documented 100% unbalance, up to 50% rated output on one phase.
    • The configurable GEN port can perform one commissioned role at a time.

    Built-in capabilities

    Four functions, read before the headline specifications.

    Two PV operating points

    Two MPPTs track two separately calculated PV groups.

    Each tracker provides two inputs with 26 A operating and 39 A short-circuit-current limits.

    Three-phase solar conversion

    Available PV power is converted into controlled 380/400 V three-phase AC.

    Rated output is 10,000 W with 11,000 VA maximum apparent power.

    High-current 48 V storage

    The inverter can charge and discharge a separately selected 40–60 V battery.

    The published charge and discharge limit is 210 A.

    Grid, backup and GEN control

    Dedicated grid, protected-load and configurable GEN interfaces coordinate valid operating states.

    The GEN port is assigned one commissioned function at a time.

    Inside the energy system

    One inverter. Different energy paths.

    Solar conversion inside the inverter. Storage, external protection and configured load circuits remain separate.

    PV passes through two MPPTs and the inverter to serve selected protected loads.

    The GEN port is configured for one role at a time. This diagram shows generator input only in Generator support mode.

    Six operating states show four designed PV inputs grouped behind two MPPTs and the Deye 10 kW three-phase hybrid inverter. It can serve selected loads, charge or discharge a separate 48 V battery, accept conditional utility charging or use a separately configured generator input. Utility and generator input are never active together. PV passes through two MPPTs and the inverter to serve selected protected loads.Four designedPV string inputstwo per MPPTlimits verifiedTwo integratedMPPTs200–650 V26 A eachDeye SUN10K-SG05LP3-EU-SM2hybrid · three phaseProtected loadoutputphase allocationprotection separateSelectedthree-phase loadsdemand + surgeverifiedCompatible 48 Vbattery system40–60 V · 210 A pathThree-phase utilitygrid portmetered separatelyGeneratorconfigured GEN portseparate equipmentSix operating states show four designed PV inputs grouped behind two MPPTs and the Deye 10 kW three-phase hybrid inverter. It can serve selected loads, charge or discharge a separate 48 V battery, accept conditional utility charging or use a separately configured generator input. Utility and generator input are never active together. PV passes through two MPPTs and the inverter to serve selected protected loads.Four designedPV string inputstwo per MPPTlimits verifiedTwo integratedMPPTs200–650 V26 A eachDeye SUN · 10K SM2hybrid · three phaseProtected outputphase allocation verifiedSelected site loadsphase demand verified48 V battery system40–60 V · 210 A pathThree-phase utilitygrid portmetered separatelyGeneratorconfigured GEN portseparate equipmentSix operating states show four designed PV inputs grouped behind two MPPTs and the Deye 10 kW three-phase hybrid inverter. It can serve selected loads, charge or discharge a separate 48 V battery, accept conditional utility charging or use a separately configured generator input. Utility and generator input are never active together. PV passes through two MPPTs and the inverter to serve selected protected loads.Four designed PV inputstwo per MPPT · limits verifiedTwo integrated MPPTs200–650 V · 26 A eachDeye SUN · 10K SM2hybrid · three phaseProtected load outputphase allocation · protectedSelected site loadsphase demand verifiedCompatible 48 V battery40–60 V · 210 A pathThree-phase utilitygrid port · metered separatelyGeneratorconfigured GEN port · separate

    Active power path Inactive path

    Conceptual operation, not a wiring plan. Separate equipment, protection, firmware and commissioning must be verified.

    Read the technical explanation

    Three-phase solar, low-voltage storage and selected-load backup in one coordinated inverter.

    The Deye SUN-10K-SG05LP3-EU-SM2 combines two photovoltaic trackers, three-phase conversion, a bidirectional low-voltage battery inverter/charger and a protected-load output. Four PV connectors remain grouped behind two MPPTs. The complete system still requires the correct battery, BMS, metering, external protection and commissioned settings.

    Functional boundary

    The GEN port is configurable. It cannot be generator input, smart-load output and AC-coupling input at the same time. Unbalanced output capability does not remove the need to calculate phase loads, conductors and protection.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    PV input

    PV access / input power

    20,000 W access · 16,000 W input

    Trackers and inputs

    2 MPPTs · 2 inputs each

    Voltage range

    200–650 V MPPT · 800 V maximum · 160 V startup

    Current limits

    26 A operating · 39 A Isc per MPPT

    Three-phase AC

    Rated / maximum output

    10,000 W · 11,000 VA

    Nominal service

    220/380 or 230/400 V · 3L+N+PE

    Efficiency

    97.6% maximum · 97.0% European weighted

    Unbalanced output

    100% · maximum 50% rated output per phase

    Battery and control

    Battery range

    40–60 V · lead-acid or compatible lithium

    Charge / discharge current

    210 A maximum

    AC pass-through

    45 A continuous

    Generator interface

    Configurable GEN port · one role at a time

    Enclosure

    Dimensions

    386 × 660 × 250 mm excluding connectors and brackets

    Weight

    35.2 kg

    Protection and cooling

    IP65 · intelligent air cooling

    Published noise

    ≤55 dB

    03 · Confirm before quotation

    Four checks before this reference is quoted.

    ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.

    1. 01

      PV strings and MPPTs

      Confirm cold Voc, operating voltage, 26 A operating current, 39 A Isc, module count and two-string allocation per tracker.

    2. 02

      Battery and phase loads

      Confirm 40–60 V behavior, chemistry, BMS, 210 A DC path, usable capacity, phase demand and surge.

    3. 03

      Three-phase AC architecture

      Confirm service voltage, phase allocation, selected circuits, conductors, isolation, protection, earthing and cooling clearance.

    4. 04

      GEN port and commissioning

      Confirm the single GEN-port role, CT or meter direction, firmware, communications, parallel settings and operating schedule.

    04 · Documents & warranty

    Keep the exact reference traceable.

    Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.

    Manufacturer warranty reference

    5 years standard · extension only when ordered

    • Manufacturer inverter warranty subject to market, serial, installation and accepted order
    • ReneWave Customer Care manages the retained documents and case route
    Customer Care

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.

    No additional equipment is published for this reference. Required accessories are confirmed during quotation.
