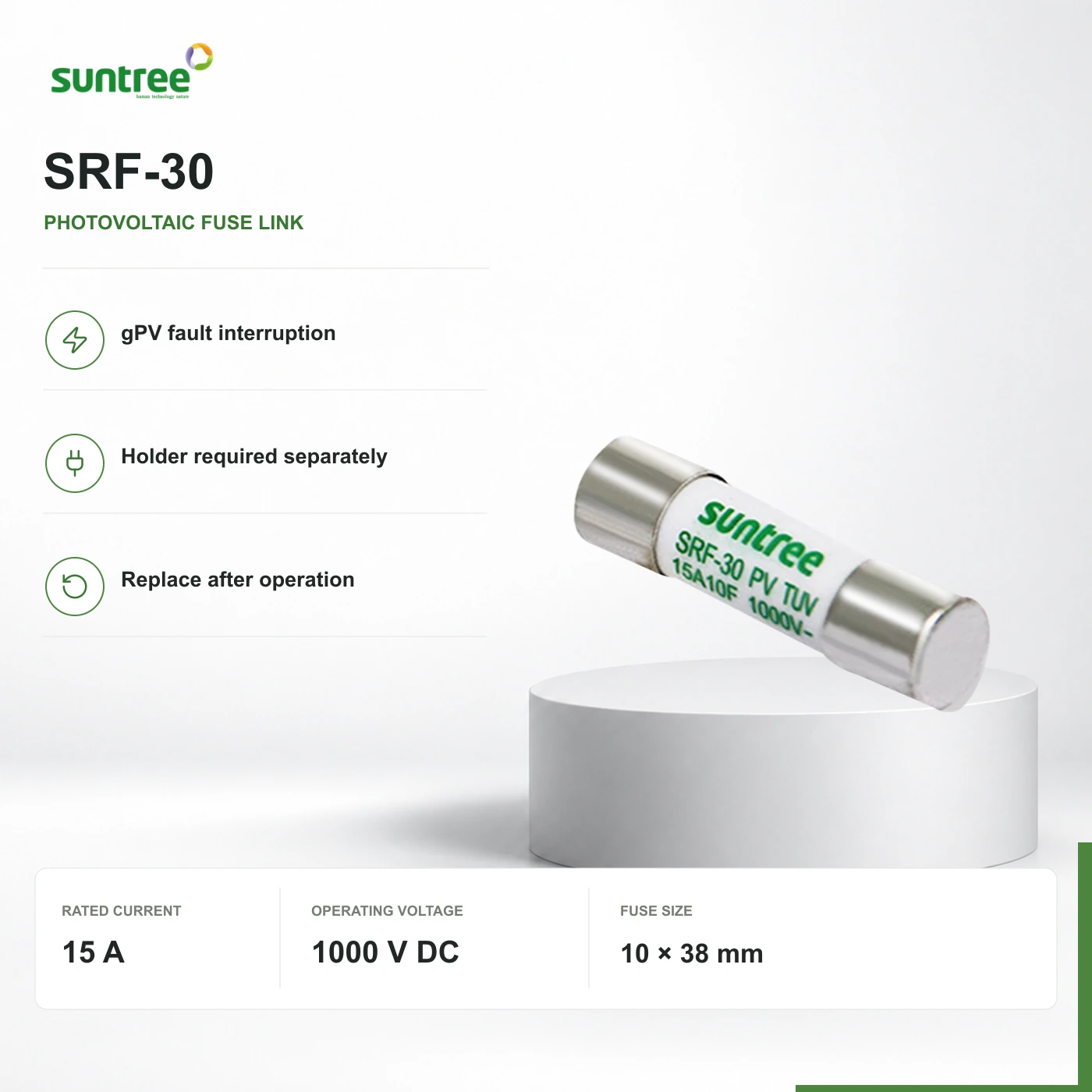

SRF-30: supplied hardware view; original markings are retained. The selected rating is 15 A · 1000 V DC.
    SRF-30: supplied hardware view; original markings are retained. The selected rating is 15 A · 1000 V DC.
    SuntreeBudget

    Suntree SRF-30 · 15 A · gPV · 1000 V DC

    Exact reference · SRF-30 · 15 A · gPV · 1000 V DC

    SRF-30 15 A gPV fuse link for photovoltaic DC circuits: 1000 V DC, 10 × 38 mm and 20 kA documented breaking capacity. A compatible holder is separate.

    Rated current
    15 A
    Operating voltage
    1000 V DC
    Breaking capacity
    20 kA · 1000 V DC · gPV · IEC 60269-6

    The gPV link interrupts fault current and must be replaced after operation. It is not a reusable breaker, a holder, a surge protector or an AC fuse. Select it against PV reverse-current risk and the module’s permitted series-fuse rating.

    Fuse current rating

    Pricing confirmed by quote

    Quote confirms reference and commercial terms; installation selection remains the installer’s responsibility.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    SRF-30 15 A gPV fuse link for photovoltaic DC circuits: 1000 V DC, 10 × 38 mm and 20 kA documented breaking capacity. A compatible holder is separate.

    Relevant applications

    • Selected photovoltaic DC protection circuits.

    Why ReneWave may shortlist it

    • SRF-30 15 A gPV fuse link for photovoltaic DC circuits: 1000 V DC, 10 × 38 mm and 20 kA documented breaking capacity. A compatible holder is separate.

    System position

    Fuse link interrupts the DC circuit.

    The gPV link interrupts fault current and must be replaced after operation. It is not a reusable breaker, a holder, a surge protector or an AC fuse. Select it against PV reverse-current risk and the module’s permitted series-fuse rating.

    The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.

    SRF-30 15 A gPV fuse link for photovoltaic DC circuits: 1000 V DC, 10 × 38 mm and 20 kA documented breaking capacity. A compatible holder is separate. Use a separately rated 10 × 38 mm holder and the specified fuse current. The holder does not provide protection without the link. Isolate the circuit before replacement; no load-switching capability is claimed. The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.PV DC sourceDC + / DC −SRF-30 15 A · gPV15 A · 1000 V DCSelected 10 × 38 mm holderThe link fits inside; not a second protective deviceInverter DC inputSeparate conversionSRF-30 15 A gPV fuse link for photovoltaic DC circuits: 1000 V DC, 10 × 38 mm and 20 kA documented breaking capacity. A compatible holder is separate. Use a separately rated 10 × 38 mm holder and the specified fuse current. The holder does not provide protection without the link. Isolate the circuit before replacement; no load-switching capability is claimed. The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.PV DC sourceDC + / DC −SRF-30 15 A · gPV15 A · 1000 V DCSelected 10 × 38 mm holderThe link fits inside; not a second protective deviceInverter DC inputSeparate conversionSRF-30 15 A gPV fuse link for photovoltaic DC circuits: 1000 V DC, 10 × 38 mm and 20 kA documented breaking capacity. A compatible holder is separate. Use a separately rated 10 × 38 mm holder and the specified fuse current. The holder does not provide protection without the link. Isolate the circuit before replacement; no load-switching capability is claimed. The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.PV DC sourceDC + / DC −SRF-30 15 A · gPV15 A · 1000 V DCSelected 10 × 38 mm holderThe link fits inside; not a second protective deviceInverter DC inputSeparate conversion

    DC + · Fused conductorPE · Always connected, never switchedDC − · Connected return conductorInactive / conditional

    Conceptual system position, not an installation drawing. Separate equipment and commissioning must be verified.

    Read the technical explanation

    SRF-30 15 A gPV fuse link for photovoltaic DC circuits: 1000 V DC, 10 × 38 mm and 20 kA documented breaking capacity. A compatible holder is separate.

    Use a separately rated 10 × 38 mm holder and the specified fuse current. The holder does not provide protection without the link. Isolate the circuit before replacement; no load-switching capability is claimed.

    The gPV link interrupts fault current and must be replaced after operation. It is not a reusable breaker, a holder, a surge protector or an AC fuse. Select it against PV reverse-current risk and the module’s permitted series-fuse rating.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Device identity

    Manufacturer reference

    SRF-30

    Selected configuration

    15 A · gPV · 1000 V DC · 10 × 38 mm

    Circuit application

    DC · PV

    Catalog configuration ID

    SRF-30-15A-1000V

    Electrical ratings

    Rated current

    15 A

    Operating voltage

    1000 V DC

    Breaking capacity

    20 kA · 1000 V DC · gPV · IEC 60269-6

    Fuse dimensions

    10 × 38 mm

    03 · Selection points

    Four practical selection points.

    Match the circuit, device function and documented limits.

    1. 01

      DC circuit and connections

      Use a separately rated 10 × 38 mm holder and the specified fuse current. The holder does not provide protection without the link. Isolate the circuit before replacement; no load-switching capability is claimed.

    2. 02

      Current and voltage

      SRF-30 15 A gPV fuse link for photovoltaic DC circuits: 1000 V DC, 10 × 38 mm and 20 kA documented breaking capacity. A compatible holder is separate.

    3. 03

      Protection coordination

      20 kA at 1000 V DC, gPV, as recorded in the manufacturer-hosted SRF-30 CB certificate. Holder conditional ratings and other fuse families are not the fuse link’s rating. The gPV link interrupts fault current and must be replaced after operation. It is not a reusable breaker, a holder, a surge protector or an AC fuse. Select it against PV reverse-current risk and the module’s permitted series-fuse rating.

    4. 04

      Mounting and connections

      Use a separately rated 10 × 38 mm holder and the specified fuse current. The holder does not provide protection without the link. Isolate the circuit before replacement; no load-switching capability is claimed.

    04 · Documentation

    Keep the exact reference traceable.

    Published documents for this exact reference support selection and handover.

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Separate equipment is selected for the installation; no automatic companions are added to your request.

    No automatic companion selection. Separate protection and accessories are chosen for the installation.
