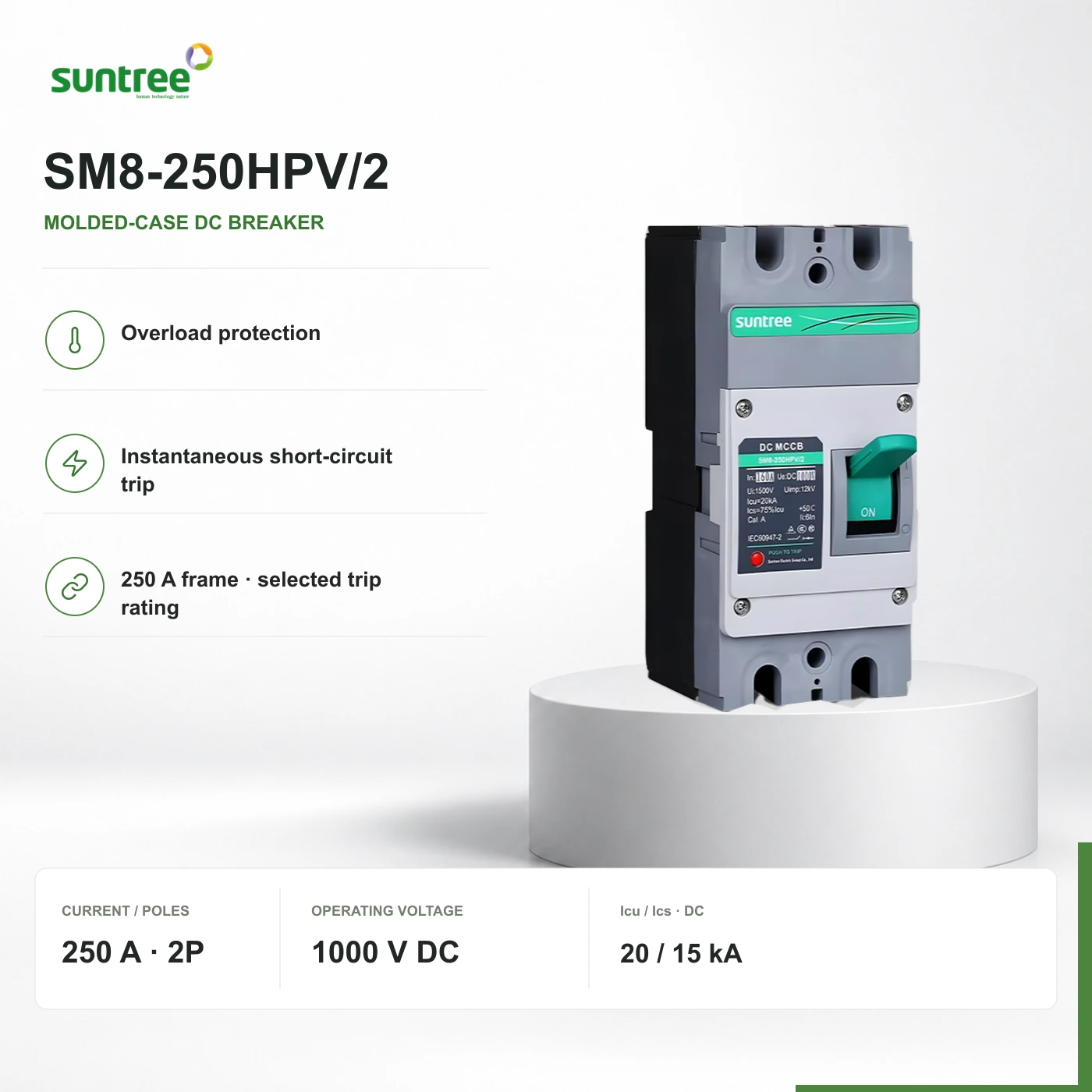

Suntree SM8-250HPV/2 · 2P · 250 A · 1000 V DC
Exact reference · SM8-250HPV/2
SM8-250HPV/2 molded-case DC breaker: 250 A frame, 250 A rated current, two poles at 1000 V DC. Overload and instantaneous short-circuit protection; no C-curve rating is claimed.
- Rated current
- 250 A
- Operating voltage
- 1000 V DC
- Icu
- 20 kA · 1000 V DC · 2P · IEC 60947-2
DC overload and short-circuit interruption within the documented connection and capacity. No residual-current or surge protection is provided. The 250 A frame is not the selected trip current; neither AC ratings nor other SM8 pole arrangements apply.
Pricing confirmed by quote
Quote confirms reference and commercial terms; installation selection remains the installer’s responsibility.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
SM8-250HPV/2 molded-case DC breaker: 250 A frame, 250 A rated current, two poles at 1000 V DC. Overload and instantaneous short-circuit protection; no C-curve rating is claimed.
Relevant applications
- Selected photovoltaic DC protection circuits.
Why ReneWave may shortlist it
- SM8-250HPV/2 molded-case DC breaker: 250 A frame, 250 A rated current, two poles at 1000 V DC. Overload and instantaneous short-circuit protection; no C-curve rating is claimed.
System position
DC overcurrent protection: conceptual single-line view.
Use the documented two-pole power/load connection, one pole on each DC conductor. Follow terminal orientation and upstream/downstream placement; reverse-polarity operation is not asserted. PE remains outside the switched path. DC overload and short-circuit interruption within the documented connection and capacity. No residual-current or surge protection is provided. The 250 A frame is not the selected trip current; neither AC ratings nor other SM8 pole arrangements apply.
The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.
Read the technical explanation
SM8-250HPV/2 molded-case DC breaker: 250 A frame, 250 A rated current, two poles at 1000 V DC. Overload and instantaneous short-circuit protection; no C-curve rating is claimed.
Use the documented two-pole power/load connection, one pole on each DC conductor. Follow terminal orientation and upstream/downstream placement; reverse-polarity operation is not asserted. PE remains outside the switched path.
DC overload and short-circuit interruption within the documented connection and capacity. No residual-current or surge protection is provided. The 250 A frame is not the selected trip current; neither AC ratings nor other SM8 pole arrangements apply.
02 · Specifications
Ratings, dimensions and practical consequence.
Device identity
- Manufacturer reference
SM8-250HPV/2
- Selected configuration
2P · 250 A · 1000 V DC · frame 250 A
- Circuit application
DC · PV
- Catalog configuration ID
SM8-250HPV-2P-250A-1000V
Electrical ratings
- Rated current
250 A
- Operating voltage
1000 V DC
- Icu
20 kA · 1000 V DC · 2P · IEC 60947-2
- Ics
15 kA · 75% Icu · 1000 V DC · 2P
- Frame current
250 A
- Instantaneous threshold
1500 A · 6 × In
- Ui
1500 V DC
- Trip function
Overload + instantaneous short circuit
03 · Selection points
Four practical selection points.
Match the circuit, device function and documented limits.
- 01
DC circuit and connections
Use the documented two-pole power/load connection, one pole on each DC conductor. Follow terminal orientation and upstream/downstream placement; reverse-polarity operation is not asserted. PE remains outside the switched path.
- 02
Current and voltage
SM8-250HPV/2 molded-case DC breaker: 250 A frame, 250 A rated current, two poles at 1000 V DC. Overload and instantaneous short-circuit protection; no C-curve rating is claimed.
- 03
Protection coordination
Icu 20 kA and Ics 15 kA (75% of Icu) at 1000 V DC, for SM8-250HPV/2 only. The 2020.01.V2 manual’s two-pole column governs; do not use the three- or four-pole headline capacities. DC overload and short-circuit interruption within the documented connection and capacity. No residual-current or surge protection is provided. The 250 A frame is not the selected trip current; neither AC ratings nor other SM8 pole arrangements apply.
- 04
Mounting and connections
Fixed mounting: M4 × 55 screws and the two-pole installation drawing. Maintain the documented 80 mm arcing clearance. Terminal hardware and any DIN adapter are not asserted as included.
04 · Documentation
Keep the exact reference traceable.
Published documents for this exact reference support selection and handover.
05 · Complete the system
Accessories and adjacent equipment, in one request.
Separate equipment is selected for the installation; no automatic companions are added to your request.
No automatic companion selection. Separate protection and accessories are chosen for the installation.
