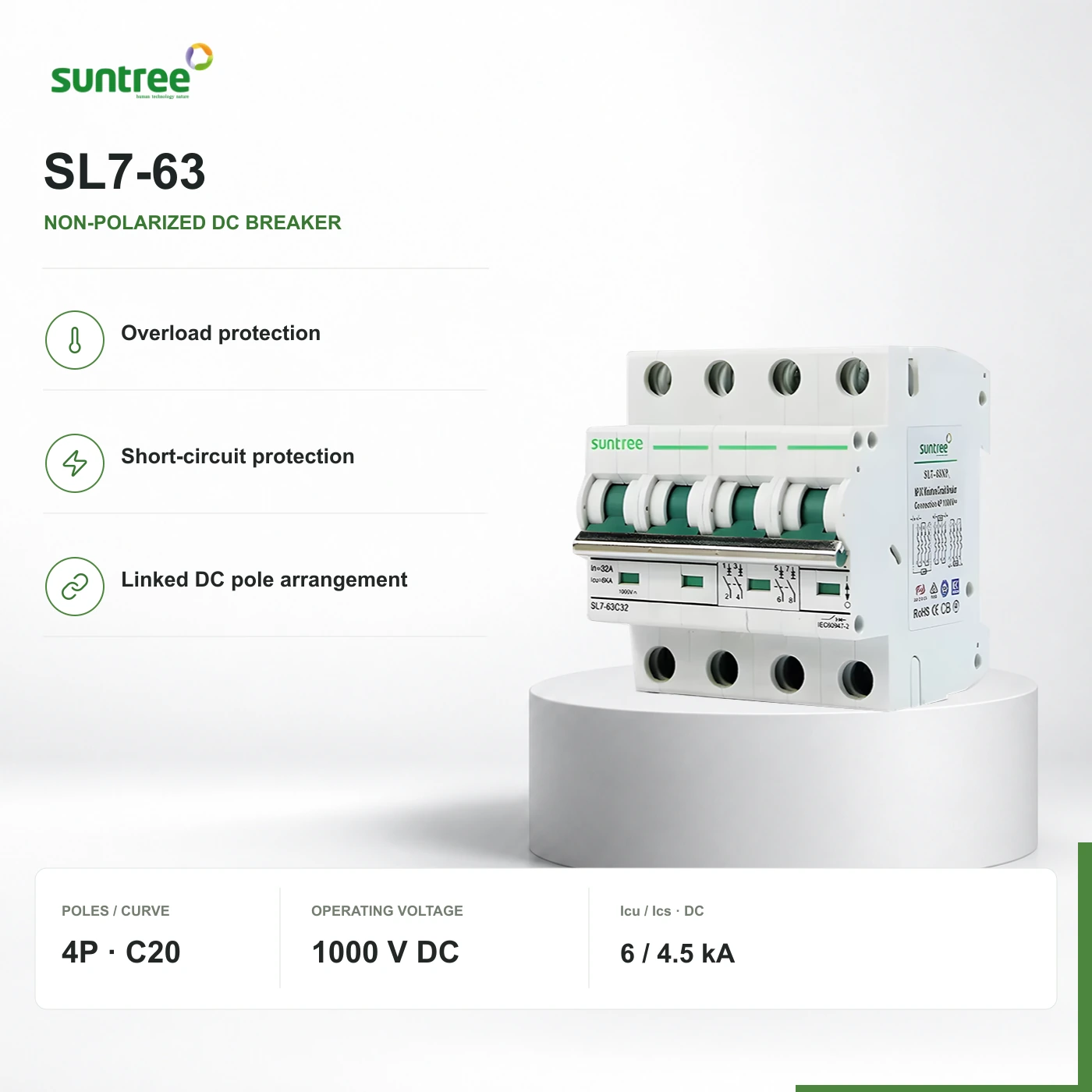

SL7-63: authenticated series view with original rating markings preserved, not a photograph of the selected 20 A · 1000 V DC configuration. Selected ratings come from the manufacturer document; the delivered configuration is identified in the quote.
    SL7-63: authenticated series view with original rating markings preserved, not a photograph of the selected 20 A · 1000 V DC configuration. Selected ratings come from the manufacturer document; the delivered configuration is identified in the quote.
    SuntreeBudget

    Suntree SL7-63 · 4P · C20 · 1000 V DC

    Exact reference · SL7-63

    SL7-63 non-polarized 4P C20 breaker for a documented 1000 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits.

    Rated current
    20 A
    Operating voltage
    1000 V DC
    Icu
    6 kA · 1000 V DC · 4P · SL7 NP

    Supplementary DC overcurrent protection within equipment, where branch-circuit protection is already provided or is not required by the applicable design. Not a universal replacement for branch-circuit protection. No residual-current protection, surge diversion or AC rating is implied. This white SL7-63 non-polarized revision is not the gray SL7N-63; their voltage-qualified capacities differ.

    Pricing confirmed by quote

    Quote confirms reference and commercial terms; installation selection remains the installer’s responsibility.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    SL7-63 non-polarized 4P C20 breaker for a documented 1000 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits.

    Relevant applications

    • Selected photovoltaic DC protection circuits.

    Why ReneWave may shortlist it

    • SL7-63 non-polarized 4P C20 breaker for a documented 1000 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits.

    System position

    DC overcurrent protection: conceptual single-line view.

    One DC circuit: two poles in series on each conductor, using the manufacturer’s linked four-pole arrangement. Not four independent circuits. Follow the retained terminal drawing. Supplementary DC overcurrent protection within equipment, where branch-circuit protection is already provided or is not required by the applicable design. Not a universal replacement for branch-circuit protection. No residual-current protection, surge diversion or AC rating is implied. This white SL7-63 non-polarized revision is not the gray SL7N-63; their voltage-qualified capacities differ.

    The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.

    SL7-63 non-polarized 4P C20 breaker for a documented 1000 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits. One DC circuit: two poles in series on each conductor, using the manufacturer’s linked four-pole arrangement. Not four independent circuits. Follow the retained terminal drawing. The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.PV DC sourceDC + / DC −SL7-63 4P · C20 · NP20 A · 1000 V DCSeparate DC equipmentIsolation / coordinationInverter DC inputSeparate conversionSL7-63 non-polarized 4P C20 breaker for a documented 1000 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits. One DC circuit: two poles in series on each conductor, using the manufacturer’s linked four-pole arrangement. Not four independent circuits. Follow the retained terminal drawing. The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.PV DC sourceDC + / DC −SL7-63 4P · C20 · NP20 A · 1000 V DCSeparate DC equipmentIsolation / coordinationInverter DC inputSeparate conversionSL7-63 non-polarized 4P C20 breaker for a documented 1000 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits. One DC circuit: two poles in series on each conductor, using the manufacturer’s linked four-pole arrangement. Not four independent circuits. Follow the retained terminal drawing. The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.PV DC sourceDC + / DC −SL7-63 4P · C20 · NP20 A · 1000 V DCSeparate DC equipmentIsolation / coordinationInverter DC inputSeparate conversion

    DC + / DC −PE · Always connected, never switchedInactive / conditional

    Conceptual system position, not an installation drawing. Separate equipment and commissioning must be verified.

    Read the technical explanation

    SL7-63 non-polarized 4P C20 breaker for a documented 1000 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits.

    One DC circuit: two poles in series on each conductor, using the manufacturer’s linked four-pole arrangement. Not four independent circuits. Follow the retained terminal drawing.

    Supplementary DC overcurrent protection within equipment, where branch-circuit protection is already provided or is not required by the applicable design. Not a universal replacement for branch-circuit protection. No residual-current protection, surge diversion or AC rating is implied. This white SL7-63 non-polarized revision is not the gray SL7N-63; their voltage-qualified capacities differ.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Device identity

    Manufacturer reference

    SL7-63

    Selected configuration

    4P · NP · C20 · 1000 V DC

    Circuit application

    DC · PV

    Catalog configuration ID

    SL7-63-NP-4P-C20-1000V

    Electrical ratings

    Rated current

    20 A

    Operating voltage

    1000 V DC

    Icu

    6 kA · 1000 V DC · 4P · SL7 NP

    Ics

    4.5 kA · 75% Icu · 1000 V DC · 4P

    Trip function

    Thermal-magnetic · C curve

    Ui / Uimp

    1200 V DC / 4 kV

    03 · Selection points

    Four practical selection points.

    Match the circuit, device function and documented limits.

    1. 01

      DC circuit and connections

      One DC circuit: two poles in series on each conductor, using the manufacturer’s linked four-pole arrangement. Not four independent circuits. Follow the retained terminal drawing.

    2. 02

      Current and voltage

      SL7-63 non-polarized 4P C20 breaker for a documented 1000 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits.

    3. 03

      Protection coordination

      Icu 6 kA and Ics 4.5 kA (75% of Icu) for the documented SL7 non-polarized 4P / 1000 V DC configuration. Do not copy the SL7N table or an AC Icn value. Supplementary DC overcurrent protection within equipment, where branch-circuit protection is already provided or is not required by the applicable design. Not a universal replacement for branch-circuit protection. No residual-current protection, surge diversion or AC rating is implied. This white SL7-63 non-polarized revision is not the gray SL7N-63; their voltage-qualified capacities differ.

    4. 04

      Mounting and connections

      35 mm DIN rail; 80 × 70 × 71 mm. Manufacturer terminal tightening: 2.0 N·m. At 20 A, follow the documented conductor cross-section and installation conditions.
