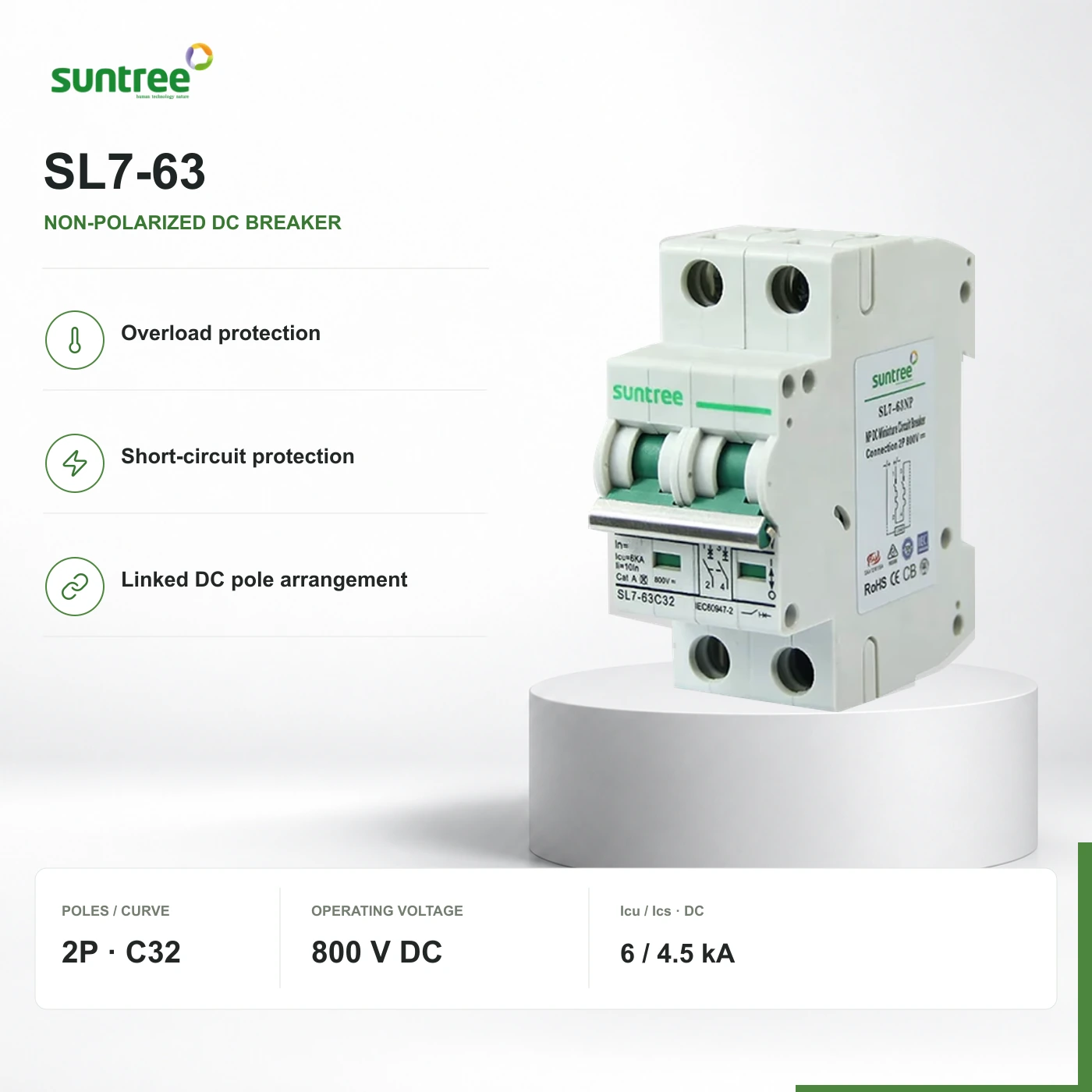

SL7-63: supplied hardware view; original markings are retained. The selected rating is 32 A · 800 V DC.
    SL7-63: supplied hardware view; original markings are retained. The selected rating is 32 A · 800 V DC.
    SuntreeBudget

    Suntree SL7-63 · 2P · C32 · 800 V DC

    Exact reference · SL7-63

    SL7-63 non-polarized 2P C32 breaker for a documented 800 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits.

    Rated current
    32 A
    Operating voltage
    800 V DC
    Icu
    6 kA · 800 V DC · 2P · SL7 NP

    Supplementary DC overcurrent protection within equipment, where branch-circuit protection is already provided or is not required by the applicable design. Not a universal replacement for branch-circuit protection. No residual-current protection, surge diversion or AC rating is implied. This white SL7-63 non-polarized revision is not the gray SL7N-63; their voltage-qualified capacities differ.

    Pricing confirmed by quote

    Quote confirms reference and commercial terms; installation selection remains the installer’s responsibility.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    SL7-63 non-polarized 2P C32 breaker for a documented 800 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits.

    Relevant applications

    • Selected photovoltaic DC protection circuits.

    Why ReneWave may shortlist it

    • SL7-63 non-polarized 2P C32 breaker for a documented 800 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits.

    System position

    DC overcurrent protection: conceptual single-line view.

    Two linked poles, one on each DC conductor. This non-polarized SL7 revision accepts either polarity direction; it does not waive the documented two-pole connection or voltage limit. Supplementary DC overcurrent protection within equipment, where branch-circuit protection is already provided or is not required by the applicable design. Not a universal replacement for branch-circuit protection. No residual-current protection, surge diversion or AC rating is implied. This white SL7-63 non-polarized revision is not the gray SL7N-63; their voltage-qualified capacities differ.

    The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.

    SL7-63 non-polarized 2P C32 breaker for a documented 800 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits. Two linked poles, one on each DC conductor. This non-polarized SL7 revision accepts either polarity direction; it does not waive the documented two-pole connection or voltage limit. The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.PV DC sourceDC + / DC −SL7-63 2P · C32 · NP32 A · 800 V DCSeparate DC equipmentIsolation / coordinationInverter DC inputSeparate conversionSL7-63 non-polarized 2P C32 breaker for a documented 800 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits. Two linked poles, one on each DC conductor. This non-polarized SL7 revision accepts either polarity direction; it does not waive the documented two-pole connection or voltage limit. The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.PV DC sourceDC + / DC −SL7-63 2P · C32 · NP32 A · 800 V DCSeparate DC equipmentIsolation / coordinationInverter DC inputSeparate conversionSL7-63 non-polarized 2P C32 breaker for a documented 800 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits. Two linked poles, one on each DC conductor. This non-polarized SL7 revision accepts either polarity direction; it does not waive the documented two-pole connection or voltage limit. The DC source supplies the conversion equipment through the closed protection path. Protective earth remains connected outside the interruption path.PV DC sourceDC + / DC −SL7-63 2P · C32 · NP32 A · 800 V DCSeparate DC equipmentIsolation / coordinationInverter DC inputSeparate conversion

    DC + / DC −PE · Always connected, never switchedInactive / conditional

    Conceptual system position, not an installation drawing. Separate equipment and commissioning must be verified.

    Read the technical explanation

    SL7-63 non-polarized 2P C32 breaker for a documented 800 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits.

    Two linked poles, one on each DC conductor. This non-polarized SL7 revision accepts either polarity direction; it does not waive the documented two-pole connection or voltage limit.

    Supplementary DC overcurrent protection within equipment, where branch-circuit protection is already provided or is not required by the applicable design. Not a universal replacement for branch-circuit protection. No residual-current protection, surge diversion or AC rating is implied. This white SL7-63 non-polarized revision is not the gray SL7N-63; their voltage-qualified capacities differ.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Device identity

    Manufacturer reference

    SL7-63

    Selected configuration

    2P · NP · C32 · 800 V DC

    Circuit application

    DC · PV

    Catalog configuration ID

    SL7-63-NP-2P-C32-800V

    Electrical ratings

    Rated current

    32 A

    Operating voltage

    800 V DC

    Icu

    6 kA · 800 V DC · 2P · SL7 NP

    Ics

    4.5 kA · 75% Icu · 800 V DC · 2P

    Trip function

    Thermal-magnetic · C curve

    Ui / Uimp

    800 V DC / 4 kV

    03 · Selection points

    Four practical selection points.

    Match the circuit, device function and documented limits.

    1. 01

      DC circuit and connections

      Two linked poles, one on each DC conductor. This non-polarized SL7 revision accepts either polarity direction; it does not waive the documented two-pole connection or voltage limit.

    2. 02

      Current and voltage

      SL7-63 non-polarized 2P C32 breaker for a documented 800 V DC configuration. Thermal-magnetic interruption protects against qualifying overloads and short circuits.

    3. 03

      Protection coordination

      Icu 6 kA and Ics 4.5 kA (75% of Icu) for the documented SL7 non-polarized 2P / 800 V DC configuration. Do not copy the SL7N table or an AC Icn value. Supplementary DC overcurrent protection within equipment, where branch-circuit protection is already provided or is not required by the applicable design. Not a universal replacement for branch-circuit protection. No residual-current protection, surge diversion or AC rating is implied. This white SL7-63 non-polarized revision is not the gray SL7N-63; their voltage-qualified capacities differ.

    4. 04

      Mounting and connections

      35 mm DIN rail; 80 × 35 × 71 mm. Manufacturer terminal tightening: 2.0 N·m. At 32 A, follow the documented conductor cross-section and installation conditions.

    04 · Documentation

    Keep the exact reference traceable.

    Published documents for this exact reference support selection and handover.

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Separate equipment is selected for the installation; no automatic companions are added to your request.

    No automatic companion selection. Separate protection and accessories are chosen for the installation.
