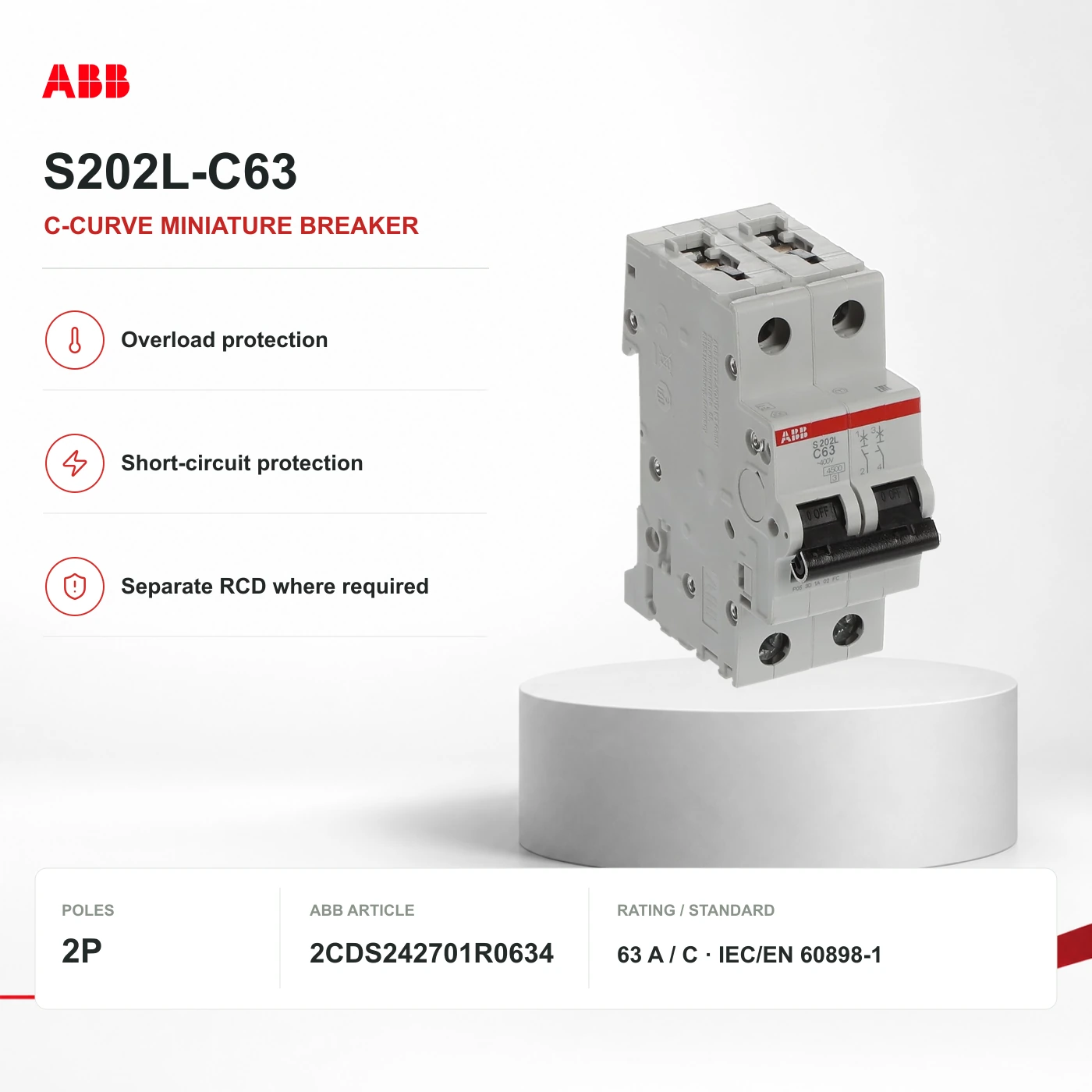

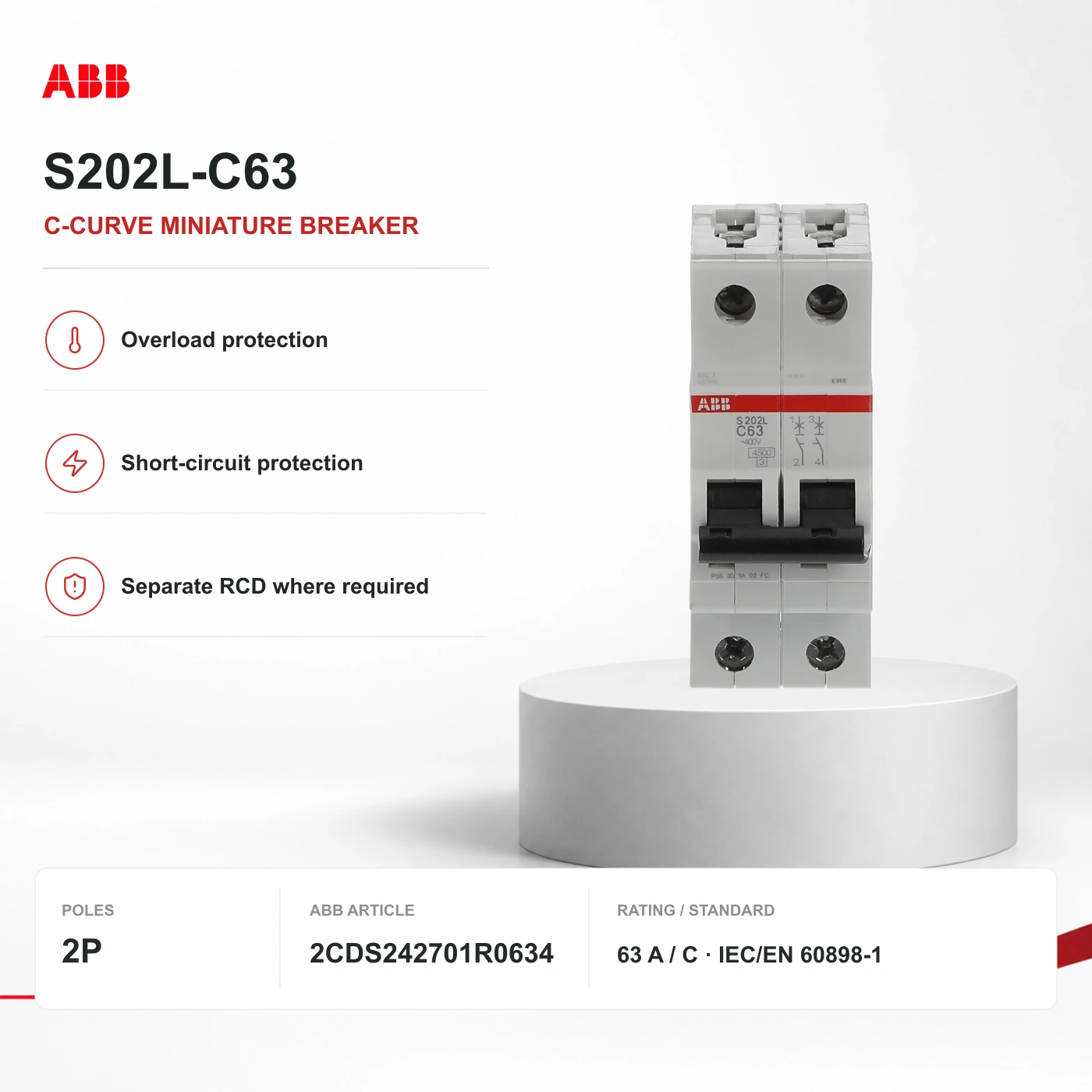

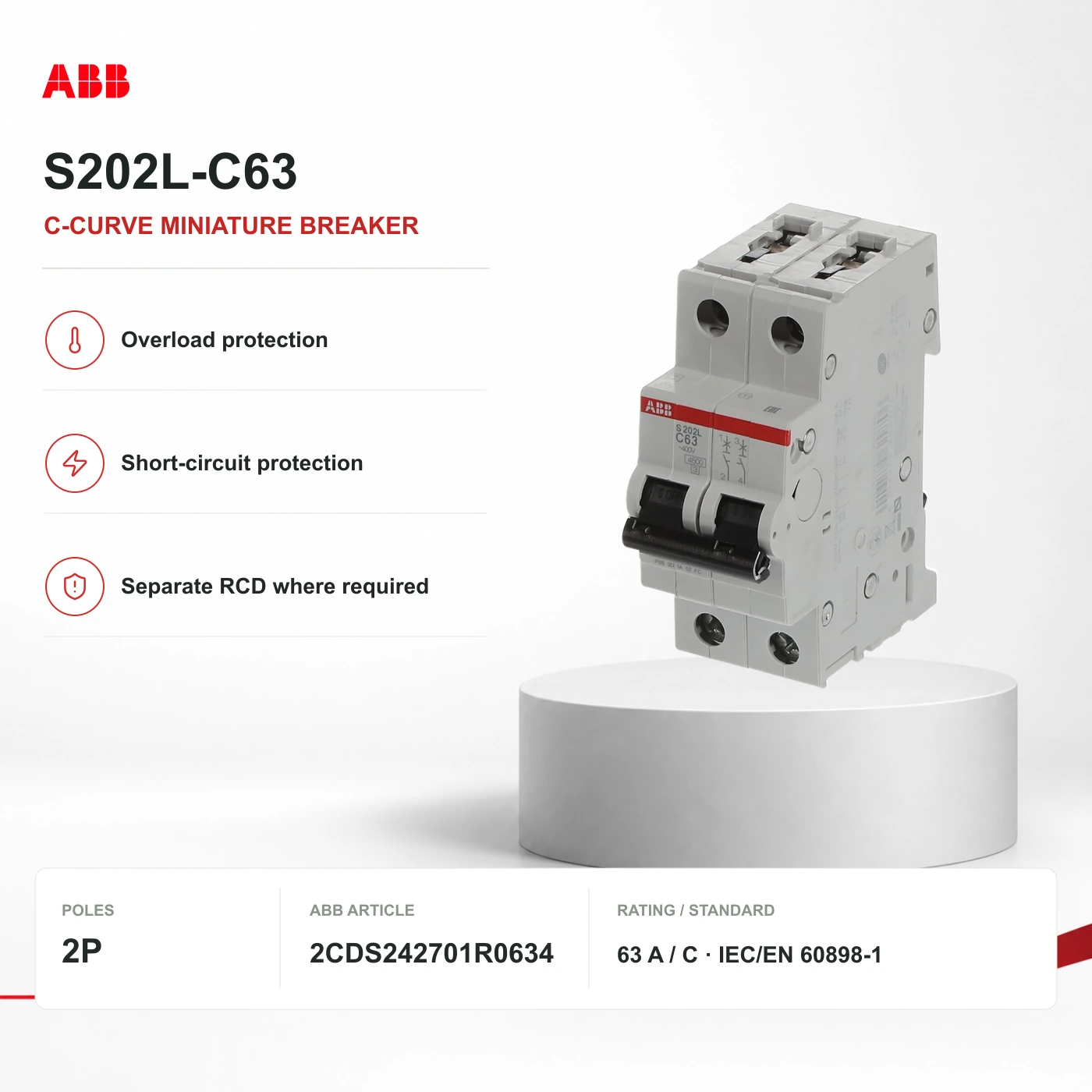

ABB S202L-C63 2P C-curve breaker
Exact reference · S202L-C63
Overload and short circuits when the circuit design and rated breaking capacity are suitable.
- Protection function
- Thermal-magnetic miniature circuit breaker
- Rated current
- 63 A · C curve
- Poles
- 2
- ABB article
- 2CDS242701R0634
Does not provide residual-current (earth-leakage) protection; use a separately selected RCD where required.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
Overload and short circuits when the circuit design and rated breaking capacity are suitable.
Relevant applications
- Two-pole AC circuits requiring a 63 A C-curve overcurrent breaker, after load and fault-level verification.
Why ReneWave may shortlist it
- Overload and short circuits when the circuit design and rated breaking capacity are suitable.
System position
Example: a distribution feeder.
Does not provide residual-current (earth-leakage) protection; use a separately selected RCD where required.
Illustrative feeder: the S202L protects against overload and short circuits. Downstream circuits need their own coordinated protection; add residual-current protection where required. 63 A is not a recommended site capacity.
Read the technical explanation
Does not provide residual-current (earth-leakage) protection; use a separately selected RCD where required.
02 · Specifications
Ratings, dimensions and practical consequence.
Device identity
- ABB reference
S202L-C63
- ABB article code
2CDS242701R0634
- Product standard
IEC/EN 60898-1
03 · Confirm before quotation
Four checks before this reference is quoted.
ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.
- 01
Load and C curve
Verify that 63 A, C curve, conductor size and supply voltage suit the circuit.
- 02
Breaking capacity
Check prospective fault current against the breaking capacity under the applicable standard.
- 03
Residual-current plan
Specify a separate residual-current device if the installation requires one.
- 04
Exact ABB article
Confirm ABB article code and installation conditions before quotation.
04 · Documentation
Keep the exact reference traceable.
Published documents for this exact reference support selection and handover.
05 · Complete the system
Accessories and adjacent equipment, in one request.
Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.
No additional equipment is published for this reference. Required accessories are confirmed during quotation.
