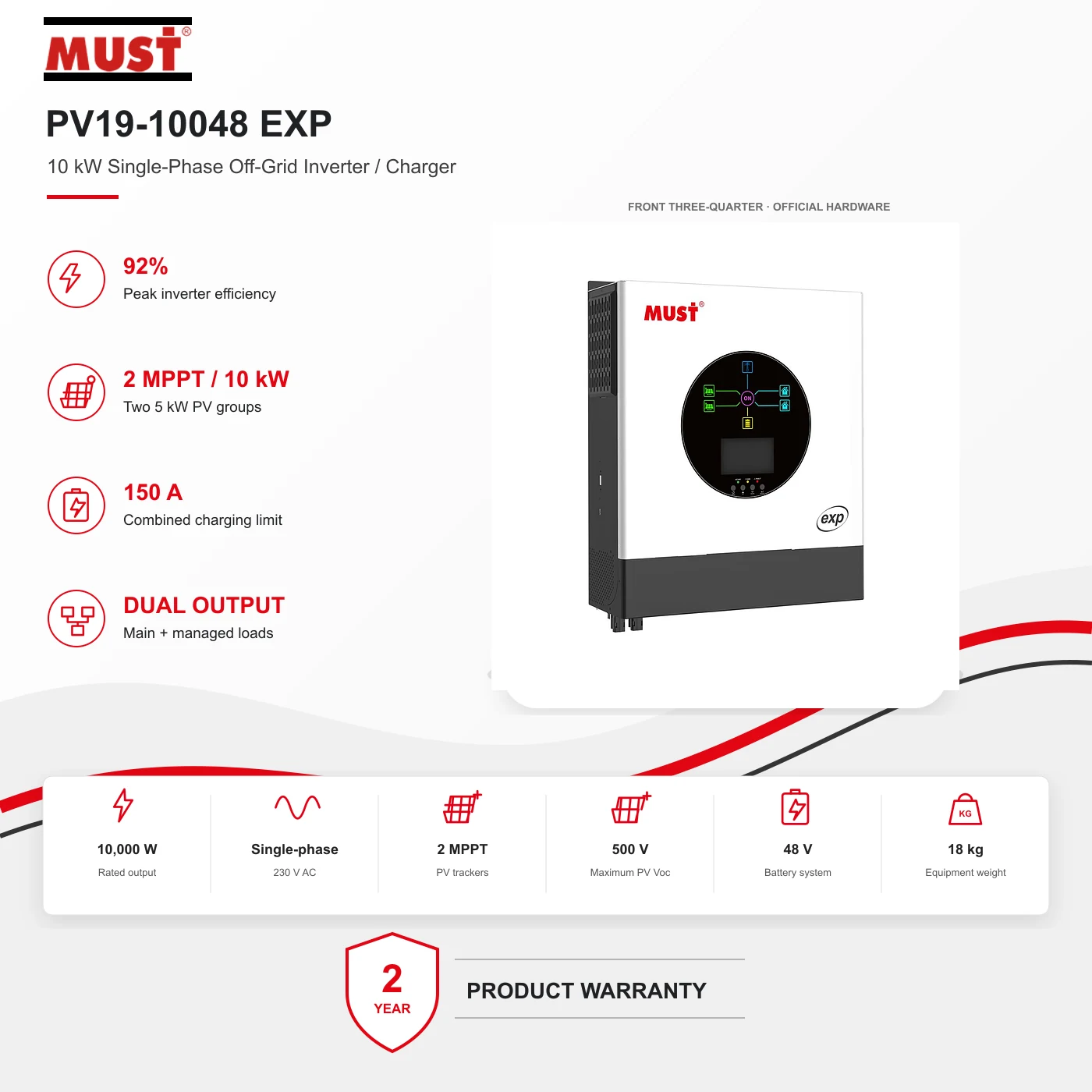

MUST PV19-10048 EXP off-grid inverter charger front three-quarter presentation
    Front three-quarter view · official PV1900 EXP hardware with verified 10 kW, dual-MPPT and 48 V facts.
    MUSTBudget

    MUST PV1900 EXP 10 kW Single-Phase Off-Grid Solar Inverter/Charger

    Exact reference · PV19-10048 EXP

    A 10 kW pure-sine off-grid inverter/charger with two MPPTs, a 48 V battery interface and one AC input assigned to utility or generator.

    AC output
    10,000 W / 10,000 VA · 20,000 W surge

    The manufacturer does not publish a surge duration in the retained records.

    PV architecture
    2 MPPTs · 5,000 W × 2

    Each string group must independently satisfy its tracker limits.

    PV voltage
    90–450 V MPPT · 500 V maximum Voc

    Parallel operation reduces these boundaries to 90–430 V and 450 V maximum Voc.

    PV current
    27 A × 2 · additional 40 A max qualifier

    MUST does not identify the 40 A qualifier as short-circuit current, so ReneWave does not relabel it.

    Charging boundary
    150 A solar · 150 A AC · 150 A combined

    The two charger ratings are alternative contributors to one combined 150 A limit, not 300 A.

    Do not select this inverter from 10 kW or 48 V alone. Confirm both PV string groups, battery current capability, chemistry or BMS protocol, AC-source arrangement, main and managed-load demand, protection, conductors and parallel configuration.

    Pricing confirmed by quote

    The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    The PV19-10048 EXP accepts two designed PV groups and converts available DC energy into 230 V single-phase AC. It can charge a separately selected 48 V battery from solar or from the one configured AC source. Utility and generator are alternative uses of the same input and are never represented simultaneously.

    Relevant applications

    • Single-phase off-grid solar systems
    • Battery-backed managed-load systems
    • Sites with one commissioned utility or generator charging source

    Why ReneWave may shortlist it

    • Two independent 5 kW PV groups support deliberately separated string designs.
    • Integrated solar and AC charging coordinate a verified 48 V battery system.
    • Main and managed secondary outputs support configured load priorities.

    Built-in capabilities

    Four functions, read before the headline specifications.

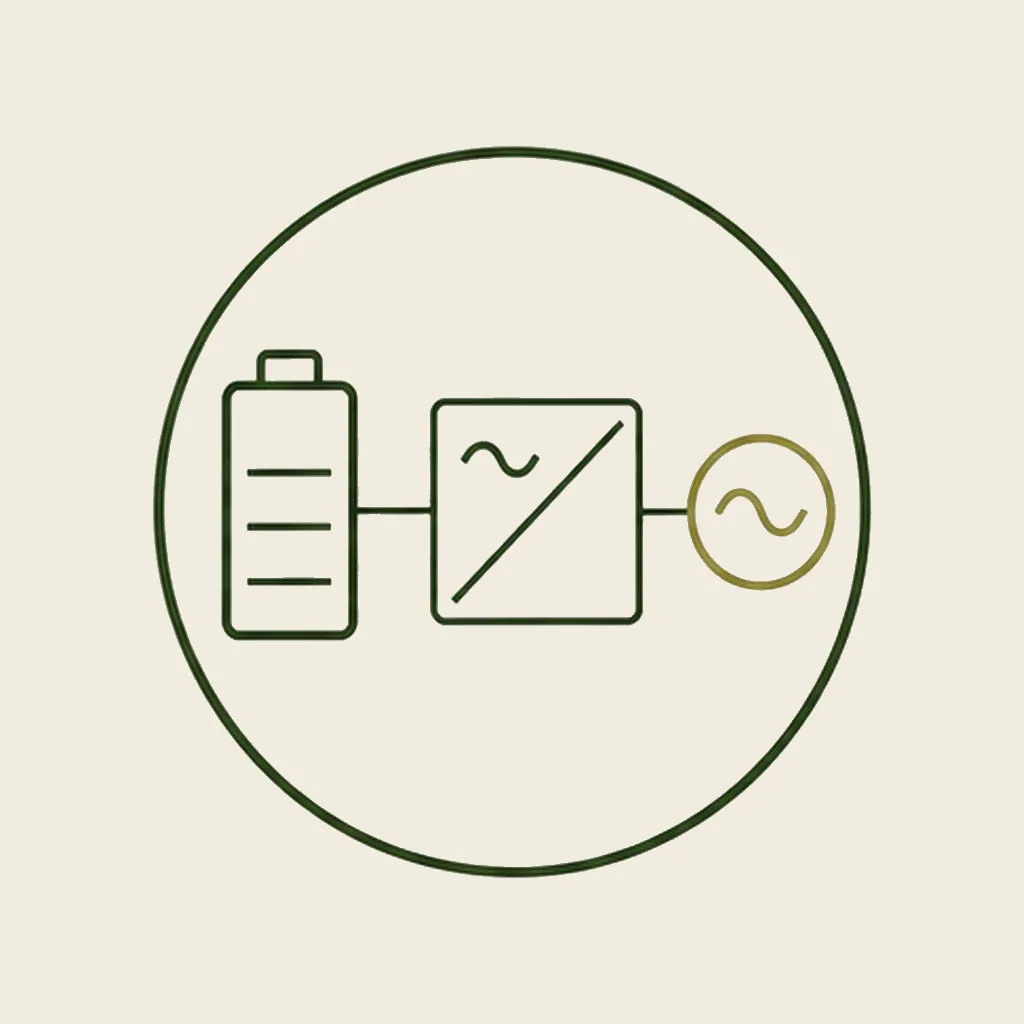

    Pure-sine single-phase conversion

    Converts PV and battery DC into 230 V AC for configured loads.

    Rated output is 10,000 W / 10,000 VA with 20,000 W published surge.

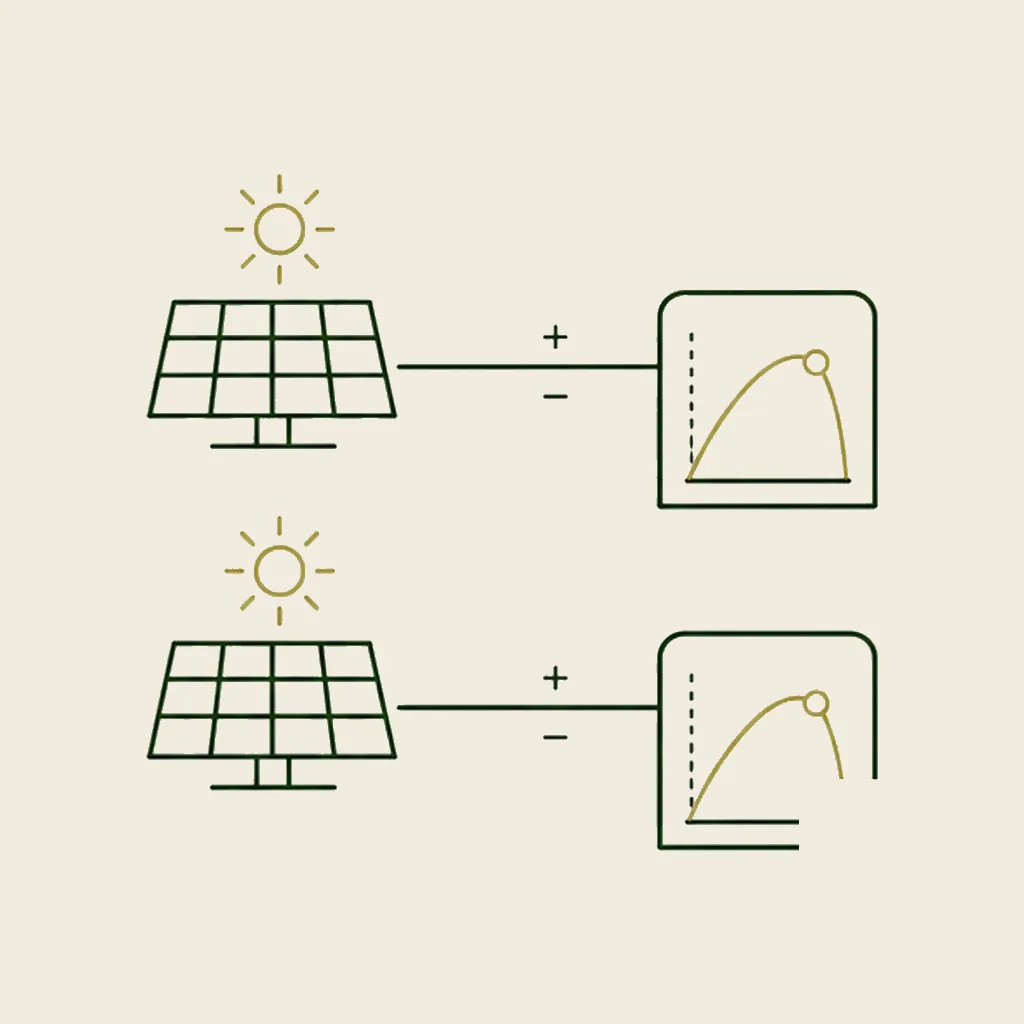

    Two independent PV trackers

    Two 5 kW PV groups are tracked separately.

    Each MPPT is published at 27 A with an additional 40 A maximum qualifier.

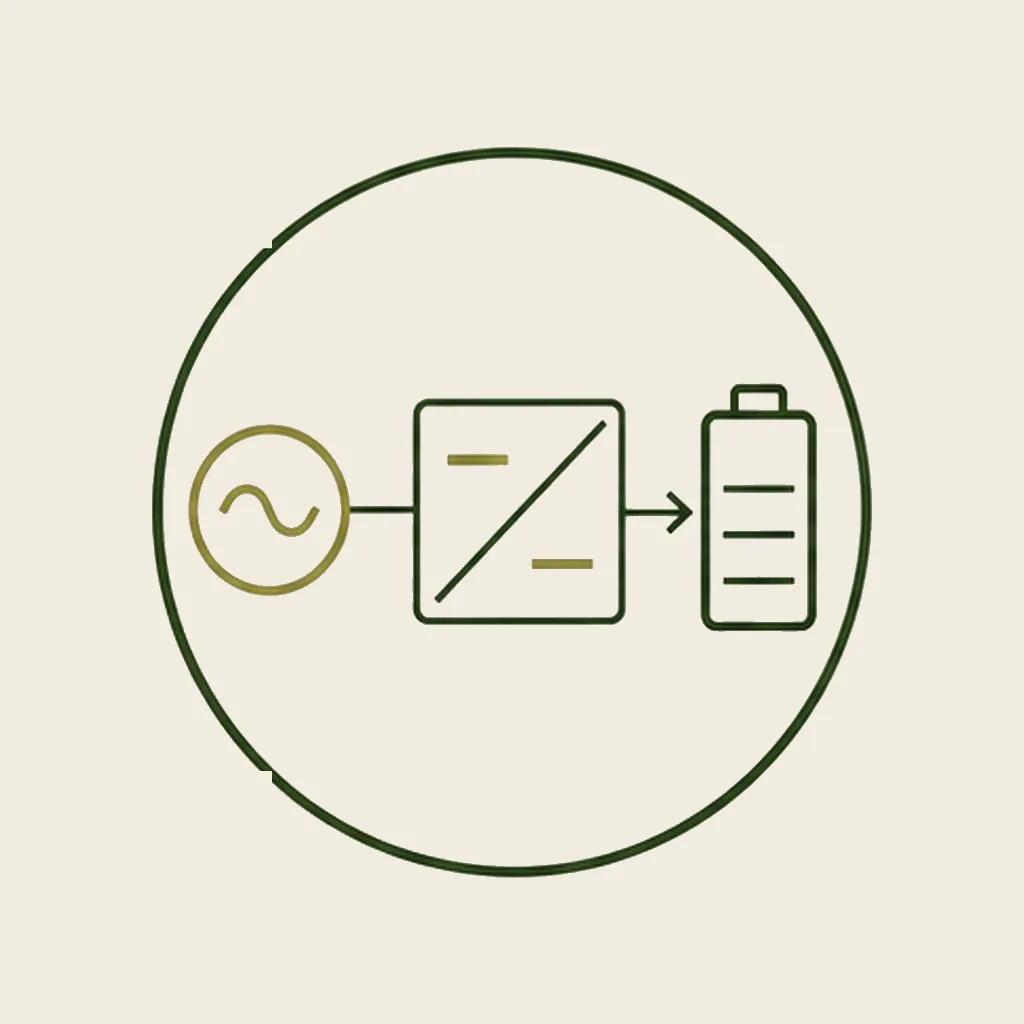

    Integrated 48 V charging

    Solar or the selected AC source can charge the battery within one combined boundary.

    Solar, AC and combined maximum charging are each 150 A.

    Main and managed outputs

    A secondary output can be conditionally enabled according to commissioned settings.

    Transfer settings are 10 ms in UPS/VDE mode and 20 ms in APL mode.

    Inside the energy system

    One inverter. Different energy paths.

    Solar conversion inside the inverter. Storage, external protection and configured load circuits remain separate.

    Both PV groups feed the integrated MPPTs and inverter, which supplies the main and conditionally enabled secondary output.

    Utility and generator are mutually exclusive sources for one AC input. The diagram never activates them together. Battery, switching between sources and external protection remain separate equipment.

    Two PV groups feed two integrated MPPTs. The off-grid inverter supplies main and managed outputs and exchanges energy with a separate 48 V battery. Utility or generator may feed the same exclusive AC input, never simultaneously. There is no grid export or direct PV-to-battery bypass. Both PV groups feed the integrated MPPTs and inverter, which supplies the main and conditionally enabled secondary output.Two designedPV groups5,000 W per MPPTTwo integrated MPPTs90–450 V operating rangePV19-10048 EXPinverter + AC chargerMain + managedAC outputssecondary output conditionalConfigured loadsexternal protection requiredSeparate 48 V batterychemistry / BMS verifiedUtility sourceexclusive AC-input optionGenerator sourceexclusive AC-input optionTwo PV groups feed two integrated MPPTs. The off-grid inverter supplies main and managed outputs and exchanges energy with a separate 48 V battery. Utility or generator may feed the same exclusive AC input, never simultaneously. There is no grid export or direct PV-to-battery bypass. Both PV groups feed the integrated MPPTs and inverter, which supplies the main and conditionally enabled secondary output.Two designedPV groups5,000 W per MPPTTwo integrated MPPTs90–450 V operating rangePV19-10048 EXPinverter + AC chargerMain + managedAC outputssecondary output conditionalConfigured loadsexternal protection requiredSeparate 48 V batterychemistry / BMS verifiedUtility sourceexclusive AC-input optionGenerator sourceexclusive AC-input optionTwo PV groups feed two integrated MPPTs. The off-grid inverter supplies main and managed outputs and exchanges energy with a separate 48 V battery. Utility or generator may feed the same exclusive AC input, never simultaneously. There is no grid export or direct PV-to-battery bypass. Both PV groups feed the integrated MPPTs and inverter, which supplies the main and conditionally enabled secondary output.Two PV groupsone per MPPT2 MPPTs90–450 VPV19-10048 EXPintegrated conversionManaged AC outputsmain + secondaryConfigured loadsprotected externally48 V batteryseparate equipmentUtilityAC-input optionGeneratorAC-input option

    Active power path Inactive path

    Conceptual operation, not a wiring plan. Separate equipment, protection, firmware and commissioning must be verified.

    Read the technical explanation

    Dual-MPPT off-grid conversion and charging for a deliberately designed 48 V system.

    The PV19-10048 EXP combines two PV trackers, a pure-sine inverter, battery charging and main/managed load outputs. The battery, external protection and the selected utility or generator source remain separate. It is not the similarly named PH19 on/off-grid model, a TLV reference or EXP II.

    Source conflict resolved

    The current February 2026 catalog and T1.3 manual both publish 92% peak inverter efficiency. ReneWave does not use the conflicting 98% web-table value.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Output and transfer

    Rated output

    10,000 W / 10,000 VA

    Surge output

    20,000 W · duration not published

    Output

    230 Vac · single phase · 50/60 Hz

    Peak inverter efficiency

    92%

    Transfer settings

    10 ms UPS/VDE · 20 ms APL

    PV input

    MPPTs

    2

    Maximum array power

    10,000 W · 5,000 W × 2

    MPPT range

    90–450 V · 90–430 V parallel

    Maximum PV Voc

    500 V · 450 V parallel

    Input-current record

    27 A × 2 · 40 A max qualifier

    Battery and enclosure

    Battery system

    48 V

    Maximum charging

    150 A solar · 150 A AC · 150 A combined

    Communications

    USB · RS485 · WiFi · supported lithium BMS

    Parallel units

    Up to 6 under documented conditions

    Operating temperature

    -10°C to +50°C

    03 · Confirm before quotation

    Four checks before this reference is quoted.

    ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.

    1. 01

      PV group design

      Verify each MPPT group against operating voltage, cold Voc, current and the parallel-mode voltage reductions.

    2. 02

      Battery current path

      Confirm 48 V chemistry, BMS protocol, continuous and surge current, conductors, fusing and autonomy.

    3. 03

      AC source and loads

      Assign utility or generator to the single AC input and verify main/managed loads, transfer settings and external protection.

    4. 04

      Parallel and communications

      Confirm matching hardware, firmware, communication wiring and commissioning for any multi-unit system.

    04 · Documents & warranty

    Keep the exact reference traceable.

    Published documents for this exact reference support selection and handover.

    Manufacturer warranty reference

    2 years

    • Manufacturer product warranty subject to the accepted order and delivered serial record
    Customer Care

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.

    No additional equipment is published for this reference. Required accessories are confirmed during quotation.
