Pure-sine conversion
Converts DC energy into single-phase AC.
6,200 W with PV input >1,000 W; 5,500 W in battery mode
MUSTBudget

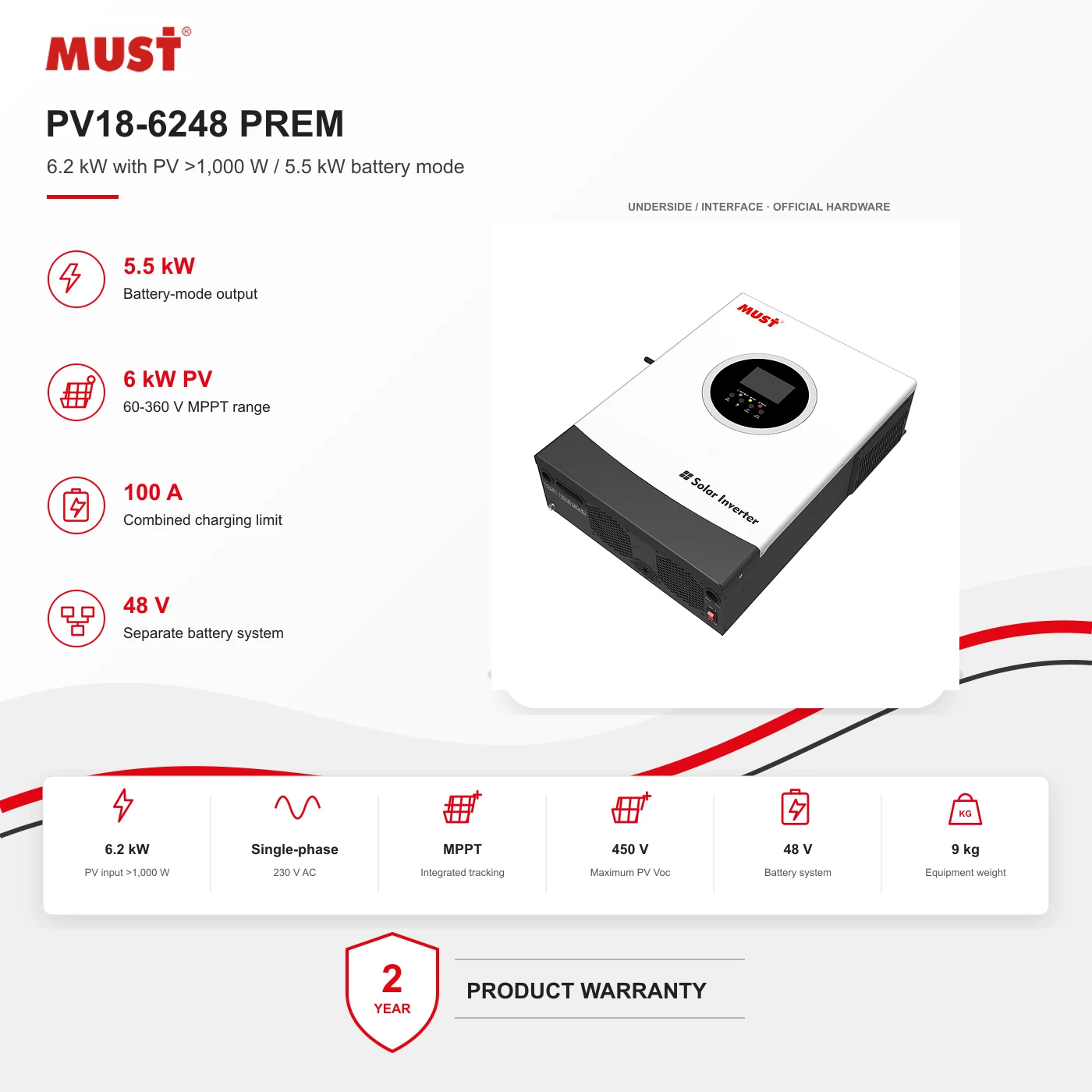

MUST PV18-6248 PREM 6.2 kW 48 V Off-Grid Inverter/Charger
Exact reference · PV18-6248 PREM
Solar-assisted output and battery-mode output are different: 6,200 W with PV input >1,000 W; 5,500 W in battery mode.
- Output boundary
- 6,200 W with PV input >1,000 W; 5,500 W in battery mode
Select loads for the operating mode that must remain available.
- PV design
- 60–360 V MPPT · 450 V maximum Voc
Check cold string voltage and applicable input current.
- Charging
- 100 A solar · 100 A AC · 100 A combined
Battery limits and commissioned charge settings may require lower currents.
Do not select this inverter from 6.2 kW or 48 V alone. Confirm operating-mode output, PV voltage and current, battery chemistry or BMS protocol, battery current capability, AC-source arrangement, load demand, conductors and protection.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
6,200 W with PV input >1,000 W; 5,500 W in battery mode. One AC input accepts utility or generator, never both simultaneously. External source switching, protection, conductors and the battery are separate. This off-grid inverter has no grid-export function.
Relevant applications
- Single-phase off-grid solar
- Configured battery-backed loads
Why ReneWave may shortlist it
- Combines MPPT, inverter and controlled charging in one unit.
- Publishes exact-model PV and battery boundaries.
Built-in capabilities
Four functions, read before the headline specifications.
Integrated solar tracking
Tracks a designed PV array within its operating range.
60–360 V; 450 V maximum Voc.
Controlled battery charging
Charges from solar or the selected AC source.
100 A solar · 100 A AC · 100 A combined
Exclusive AC-source input
Uses utility or a compatible generator as one source.
External switching is required to select between sources; no grid export.
Inside the energy system
One inverter. Different energy paths.
Solar conversion inside the inverter. Storage, external protection and configured load circuits remain separate.
Solar supplies configured loads through the MPPT and inverter. 6,200 W with PV input >1,000 W; 5,500 W in battery mode
One AC input accepts utility or generator, never both simultaneously. External source switching, protection, conductors and the battery are separate. This off-grid inverter has no grid-export function. 6,200 W with PV input >1,000 W; 5,500 W in battery mode.
Read the technical explanation
6,200 W with PV input >1,000 W; 5,500 W in battery mode. One AC input accepts utility or generator, never both simultaneously. External source switching, protection, conductors and the battery are separate. This off-grid inverter has no grid-export function. Do not select this inverter from 6.2 kW or 48 V alone. Confirm operating-mode output, PV voltage and current, battery chemistry or BMS protocol, battery current capability, AC-source arrangement, load demand, conductors and protection.
02 · Specifications
Ratings, dimensions and practical consequence.
Exact-model operating record
- Product type
single-phase off-grid inverter/charger
- Output power
6,200 W with PV input >1,000 W; 5,500 W in battery mode
- AC output
230 V nominal · single phase · pure sine · 50/60 Hz
- Battery system
48 V
- Maximum PV array power
6,000 W
- MPPT operating range
60–360 V
- Maximum PV open-circuit voltage
450 V
- PV input current
28 A
- Charging current
100 A solar · 100 A AC · 100 A combined
- AC source
One input: utility OR generator
- Operating temperature
-10°C to +50°C
- Net weight
9 kg
03 · Confirm before quotation
Four checks before this reference is quoted.
ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.
- 01
PV and operating mode
Check exact-mode output, cold Voc, current and array power.
- 02
Battery and loads
Verify chemistry, BMS or charge profile, current path and autonomy.
- 03
AC source and protection
Design exclusive source switching, conductors, earthing and external protection.
- 04
Revision and commissioning
Confirm exact firmware, interfaces, supplied enclosure and commissioning records.
04 · Documents & warranty
Keep the exact reference traceable.
Published documents for this exact reference support selection and handover.
MUST PV1800 PREM 2–6.2 kW Datasheetdatasheet · International; delivered revision must match · EnglishSupplier-retained MUST sheet; revision not printed · product family
MUST PV1800 PREM 3.6–6.2 kW User Manualmanual · International; delivered revision must match · EnglishCover 4200-010056-04A4; download filename T1.4 ECO · product family
Manufacturer warranty reference
2 years
- Manufacturer term stated in the applicable family datasheet
05 · Complete the system
Accessories and adjacent equipment, in one request.
Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.
No additional equipment is published for this reference. Required accessories are confirmed during quotation.
