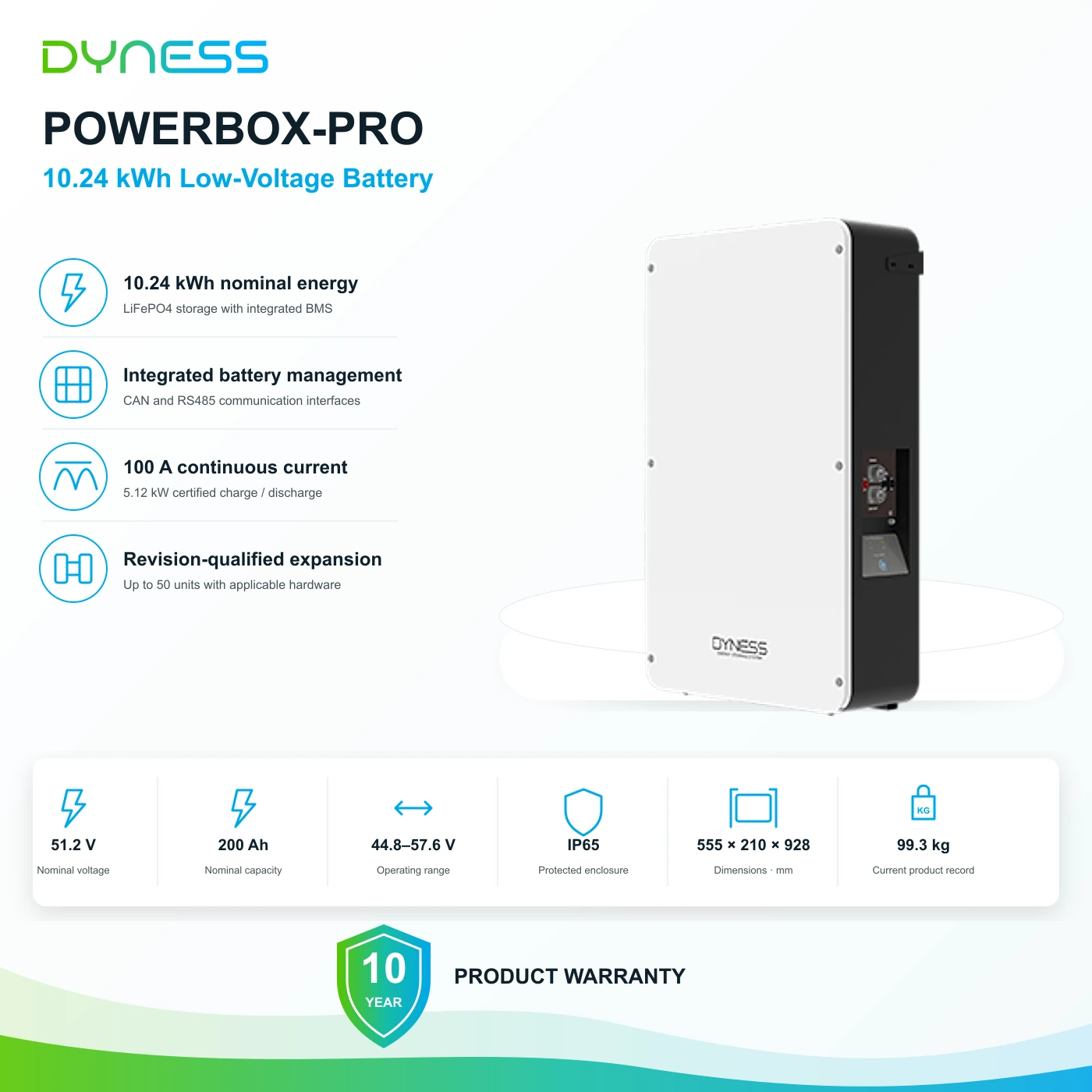

Dyness PowerBox Pro low-voltage battery front presentation
    Front view · official exact-model enclosure, fasteners, base and branding retained in the Dyness presentation system.
    DynessBest Value

    Dyness PowerBox Pro 10.24 kWh Low-Voltage Battery

    Exact reference · PowerBox Pro

    Ten kilowatt-hours of weather-protected low-voltage LiFePO4 storage with an integrated BMS for a reviewed inverter/charger architecture.

    Stored energy
    10.24 kWh nominal

    Autonomy still depends on inverter losses, reserve settings and connected loads.

    Electrical platform
    51.2 V · 200 Ah

    The supported inverter must operate across the complete 44.8–57.6 V battery window.

    Continuous boundary
    100 A · 5.12 kW

    The inverter demand, conductors, protection and parallel bank must remain inside the certified continuous limit.

    Battery communication
    CAN and RS485

    A physical port alone does not prove protocol, firmware or pinout compatibility.

    Installation record
    IP65 · 99.3 kg current listing

    The retained manual states 103 kg, so the delivered nameplate and mounting design are confirmed in writing.

    Do not select this battery from 10.24 kWh or “48 V” alone. Confirm inverter protocol, firmware, current demand, autonomy, protection, cabling, parallel design and installation conditions.

    Pricing confirmed by quote

    The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    The PowerBox Pro stores DC energy and protects its LiFePO4 cells through an integrated battery-management system. A separately selected compatible inverter/charger performs PV conversion, AC charging and AC output. The battery cannot supply AC loads by itself.

    Relevant applications

    • Residential solar and storage systems
    • Selected-load backup architectures using a compatible inverter
    • Light-commercial low-voltage battery banks with engineered parallel design

    Why ReneWave may shortlist it

    • Stores 10.24 kWh of nominal DC energy in one enclosure.
    • Provides CAN and RS485 BMS communication for supported inverter protocols.
    • Supports 100 A continuous charging and discharging for a correctly protected and commissioned system.

    Built-in capabilities

    Four functions, read before the headline specifications.

    Stores DC energy

    Provides one 10.24 kWh nominal LiFePO4 storage increment.

    Nominal platform: 51.2 V and 200 Ah.

    Protects and balances cells

    The integrated BMS monitors the battery and enforces documented limits.

    The BMS does not replace external conductors, fusing or isolation.

    Supports continuous battery power

    Provides a certified 100 A and 5.12 kW continuous charge/discharge boundary.

    The complete system must remain within inverter, conductor and protection limits.

    System position

    Storage behind a compatible inverter/charger.

    The inverter/charger, protection and AC distribution are separate equipment. No direct PV-to-battery, battery-to-AC-load or grid-export path is represented.

    PV supplies protected site loads through the compatible inverter. PowerBox Pro remains idle.

    PV and utility sources connect through a separately selected compatible inverter and protected AC distribution. The Dyness PowerBox Pro charges and discharges only through that inverter battery interface. It never connects directly to PV or AC loads. PV supplies protected site loads through the compatible inverter. PowerBox Pro remains idle.PV arrayseparate generation equipmentCompatible inverter / chargerprotocol and firmware confirmedProtected AC distributionproject-specific protectionProtected site loadsserved through the inverterDyness PowerBox Pro51.2 V · 10.24 kWh nominalUtility supplyconditional charging sourcePV and utility sources connect through a separately selected compatible inverter and protected AC distribution. The Dyness PowerBox Pro charges and discharges only through that inverter battery interface. It never connects directly to PV or AC loads. PV supplies protected site loads through the compatible inverter. PowerBox Pro remains idle.PV arrayseparate generation equipmentCompatible inverter / chargerprotocol and firmware confirmedProtected AC distributionproject-specific protectionProtected site loadsserved through the inverterDyness PowerBox Pro51.2 V · 10.24 kWh nominalUtility supplyconditional charging sourcePV and utility sources connect through a separately selected compatible inverter and protected AC distribution. The Dyness PowerBox Pro charges and discharges only through that inverter battery interface. It never connects directly to PV or AC loads. PV supplies protected site loads through the compatible inverter. PowerBox Pro remains idle.PV arrayseparate equipmentCompatible inverter / chargerseparate conversion equipmentProtected distributionseparate protectionProtected site loadsAC loadsPowerBox Prointegrated BMS · 10.24 kWhUtility supplyconditional source

    Electrical powerInactive / conditional

    Conceptual system position, not an installation drawing. Separate equipment and commissioning must be verified.

    Read the technical explanation

    Ten kilowatt-hours of weather-protected low-voltage storage for a reviewed inverter architecture.

    PowerBox Pro stores DC energy and communicates with a separately selected compatible inverter/charger through CAN or RS485. It does not contain PV conversion, AC charging, AC output or backup switching.

    Revision traceability

    The current official product page lists 99.3 kg and up to 50 units in parallel. Retained PDFs list 103 kg and earlier parallel limits. ReneWave confirms the delivered nameplate, hardware revision, firmware and permitted unit count in the written quotation. Conflicting peak-power values are intentionally not published.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Battery and energy

    Chemistry

    LiFePO4

    Nominal energy

    10.24 kWh

    Nominal voltage / capacity

    51.2 V · 200 Ah

    Operating voltage

    44.8–57.6 V

    Published cycle life

    ≥6,000 cycles at 0.2C, 25°C and 90% DOD

    Current and communication

    Maximum continuous charge

    100 A

    Maximum continuous discharge

    100 A

    Certified continuous power

    5.12 kW charge / discharge

    Peak power

    Not published due to conflicting official revisions

    Communication

    CAN and RS485

    Installation and expansion

    Dimensions

    555 × 210 × 928 mm

    Current product-page weight

    99.3 kg

    Retained PDF weight

    103 kg

    Ingress protection

    IP65

    Expansion

    Up to 50 units only for an applicable documented revision

    Mounting

    Wall or floor installation subject to the manual

    03 · Confirm before quotation

    Four checks before this reference is quoted.

    ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.

    1. 01

      Inverter and BMS communication

      Confirm exact inverter model, supported Dyness protocol, firmware, communication cable and pinout.

    2. 02

      Current and parallel design

      Confirm continuous demand, autonomy, product revision, unit count and master/slave arrangement.

    3. 03

      Installation and protection

      Confirm mounting, clearances, conductors, busbars, fusing, disconnects and environmental limits.

    4. 04

      Traceability and warranty

      Record nameplate, weight, serial, source revisions, communication state, settings and delivered warranty pack.

    04 · Documents & warranty

    Keep the exact reference traceable.

    Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.

    Manufacturer warranty reference

    10 years

    • PowerBox Pro under the retained exact-model manufacturer warranty
    • The exact serial, communication state, installation and delivered warranty record control
    Customer Care

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.

    No additional equipment is published for this reference. Required accessories are confirmed during quotation.
