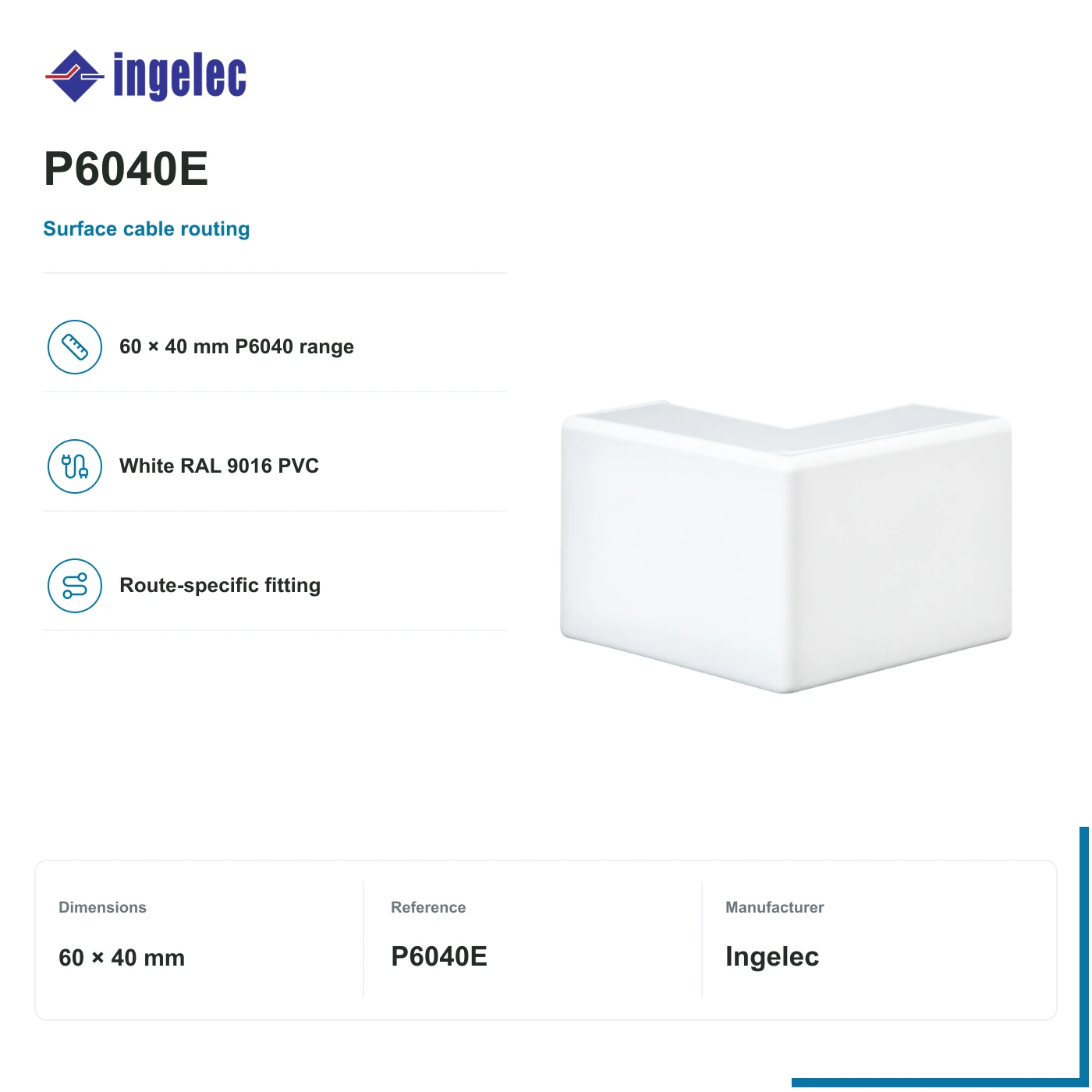

Ingelec external corner for 60 × 40 mm skirting
Exact reference · P6040E
External corner for Ingelec P6040 60 × 40 mm skirting. White RAL 9016 PVC; match the fitting to the cable route.
- Profile · width × height
- 60 × 40 mm
- Material
- White PVC · RAL 9016
- Mounting
- P6040 profile fitting
- Protection record
- IP40 in 2022 catalogue; IP43 in 2015 sheet — confirm applicable rating
This accessory does not set the electrical protection rating of a complete installation. The equipment, wiring and assembly are selected for the project.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
The P6040 range routes cables along a surface using a 60 × 40 mm white PVC profile. Select external, internal or flat corners, a T junction or an end cap according to the actual route. The optional P120 separator is a separate accessory.
Relevant applications
- Surface cable routing with the appropriate P6040 fittings.
Why ReneWave may shortlist it
- Coordinated 60 × 40 mm profile and fittings.
- White RAL 9016 finish for a continuous surface route.
Where it fits in the installation
External cornerP6040E
Solar installation example
Solar panels
PV array
Solar inverter
DC to AC conversion
AC protection & control
Equipment selected for the project
Cable route
Conductors between equipment
Selected item here · P6040E
Site equipment
Equipment supplied by the installation
Example AC-side placement; protection and wiring are selected for the project.
Arrows show the connection order of the example equipment. The highlighted accessory houses, mounts or supports it; it does not conduct the working current.
How the item is used
The skirting carries the surface cable run between the electrical assembly and site equipment. Fittings follow the route; the cables carry the current.
External corner
Cable route · context
Selected item
External corner
Read the technical explanation
External corner for Ingelec P6040 60 × 40 mm skirting. White RAL 9016 PVC; match the fitting to the cable route.
02 · Specifications
Ratings, dimensions and practical consequence.
Construction and mechanical fit
- Manufacturer reference
P6040E
- Profile · width × height
60 × 40 mm
- Material
White PVC · RAL 9016
- Mounting
P6040 profile fitting
- Protection record
IP40 in 2022 catalogue; IP43 in 2015 sheet — confirm applicable rating
03 · Confirm before quotation
Four checks before this reference is quoted.
Confirm physical dimensions, cable routing, installation conditions and the exact supplied parts before quotation.
- 01
Dimensions and mounting
Use the Ingelec P6040 60 × 40 mm profile. Similar nominal dimensions from another range do not establish fit.
- 02
Cable route
Measure the route and choose the actual corner direction, branch or termination; check cable fill and bend radius.
- 03
Installation environment
The published 2015 sheet and 2022 catalogue give different IP values. Confirm the applicable assembly rating before specifying an exposed location.
- 04
Exact reference and supply
Confirm supplied bar length for P6040, piece counts and any separator. Manufacturer pack quantities are not the requested sale quantity.
