Stores DC energy
Provides a 200 Ah nominal 12 V storage increment at the stated ten-hour test.
This battery contains no AC conversion equipment.
OUTDOBudget

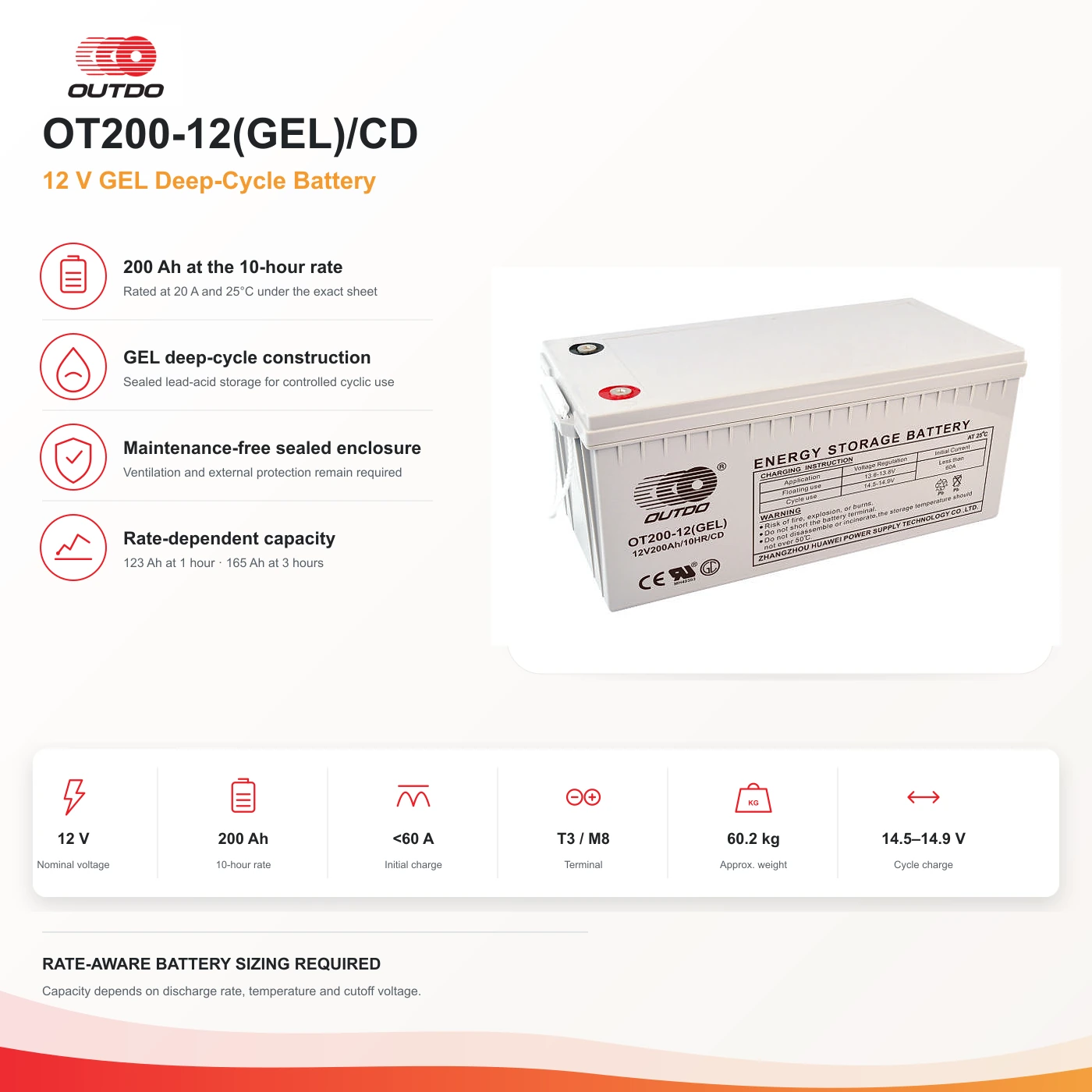

OUTDO OT200 12 V 200 Ah GEL Deep-Cycle Battery
Exact reference · OT200-12(GEL)/CD
Rate-defined 12 V GEL storage for a deliberately designed battery bank and inverter/charger.
- Rated capacity
- 200 Ah at 10 hours, 20 A and 25°C
This C10 rating cannot be compared directly with another battery’s C20 headline.
- Nominal arithmetic energy
- Approximately 2.4 kWh
Calculated from 12 V × 200 Ah; it is not a published usable-energy figure.
- Higher-rate capacity
- 123 Ah at 1 hour · 165 Ah at 3 hours
Autonomy calculations must use the relevant discharge regime rather than the ten-hour headline.
- Charging boundary
- <60 A initial · 14.5–14.9 V cycle · 13.6–13.8 V float
The compatible charger and temperature compensation must be configured for the battery bank.
- Physical boundary
- 60.2 kg · T3 / M8
Handling, support, conductor termination and protective covers require project planning.
Do not select this battery from 200 Ah or “12 V” alone. Confirm required autonomy, discharge rate, bank voltage, matched battery count, charge settings, temperature compensation, conductors, protection, ventilation and handling.
Pricing confirmed by quote
The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
The OT200-12(GEL)/CD is a sealed lead-acid GEL battery that stores DC energy. A separately selected inverter/charger converts power, controls charging and supplies AC loads. The battery has no BMS communications and cannot operate AC equipment by itself.
Relevant applications
- Off-grid solar battery banks
- Selected-load backup systems using a compatible inverter/charger
- DC energy storage where GEL charge settings and ventilation are engineered
Why ReneWave may shortlist it
- Provides 200 Ah at the stated ten-hour, 20 A, 25°C test condition.
- Publishes separate one-hour and three-hour capacities for rate-aware design.
- Uses a sealed GEL deep-cycle architecture with documented charging windows.
Built-in capabilities
Four functions, read before the headline specifications.
Sealed GEL construction
Uses a GEL deep-cycle lead-acid architecture intended for controlled cyclic service.
Sealed construction does not remove ventilation, protection or handling requirements.
Requires a defined charge profile
The external charger must respect the documented current, cycle and float settings.
Temperature compensation and complete-bank behavior remain project-specific.
Publishes rate-dependent capacity
One-hour, three-hour and ten-hour values support a more realistic autonomy review.
Headline amp-hours cannot be applied unchanged at every load.
System position
Storage behind a compatible inverter/charger.
The inverter/charger, PV conversion, protection and AC distribution are separate equipment. No direct PV-to-battery, battery-to-AC-load or grid-export path is represented.
PV supplies protected loads through the compatible inverter while the OUTDO battery bank remains idle.
Read the technical explanation
Rate-defined 12 V GEL storage for a deliberately designed battery bank and inverter/charger.
The OT200-12(GEL)/CD stores DC energy. It does not contain an inverter, solar charger, AC charger, BMS communication, transfer switch or independent AC output. Its 200 Ah headline is a ten-hour rating and must not be compared directly with a capacity published at another discharge rate.
Source revision boundary
ReneWave publishes only the values from manufacturer sheet 302020001-00034 for the requested historical grey-container /CD reference. OUTDO’s current catalog exposes neighboring 200 Ah suffixes, but their hardware, weight and product claims are not substituted for this record. The delivered nameplate, exact suffix, terminal arrangement and warranty record are reconfirmed in the written quotation.
02 · Specifications
Ratings, dimensions and practical consequence.
Battery and capacity
- Chemistry
Sealed GEL lead-acid
- Nominal voltage
12 V
- Capacity at 10 hours
200 Ah at 20 A and 25°C
- Nominal arithmetic energy
Approximately 2.4 kWh · not usable energy
- Capacity at 3 hours
165 Ah at 50 A
- Capacity at 1 hour
123 Ah at 110 A
Charging and electrical
- Initial charging current
Less than 60 A
- Cycle charge at 25°C
14.5–14.9 V
- Float charge at 25°C
13.6–13.8 V
- Internal resistance
3.4 mΩ fully charged at 25°C
- Terminal
T3 · M8 connection
Physical record
- Case dimensions
522 × 239 × 217 mm
- Total height
Approximately 222 mm
- Weight
Approximately 60.2 kg
- Container color
Grey exact-sheet presentation; delivered variant confirmed in writing
03 · Confirm before quotation
Four checks before this reference is quoted.
ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.
- 01
Charge profile and bank voltage
Confirm inverter/charger support for the complete bank voltage, GEL cycle/float settings, current limit and temperature compensation.
- 02
Capacity and discharge rate
Calculate autonomy from the applicable discharge curve, cutoff voltage, temperature, age and inverter efficiency.
- 03
Bank and protection design
Confirm matched batteries, equal current paths, conductors, fusing, isolation, terminal protection and fault-current boundaries.
- 04
Installation and traceability
Confirm ventilation, structural support, handling, delivered nameplate, source revision and written warranty record.
04 · Documentation
Keep the exact reference traceable.
Published documents for this exact reference support selection and handover.
OUTDO OT200-12(GEL)/CD Technical Datasheetdatasheet · Supplier-retained technical record · EnglishV202104 · manufacturer sheet 302020001-00034 · acquired 2025-04 · exact reference
05 · Complete the system
Accessories and adjacent equipment, in one request.
Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.
No additional equipment is published for this reference. Required accessories are confirmed during quotation.
