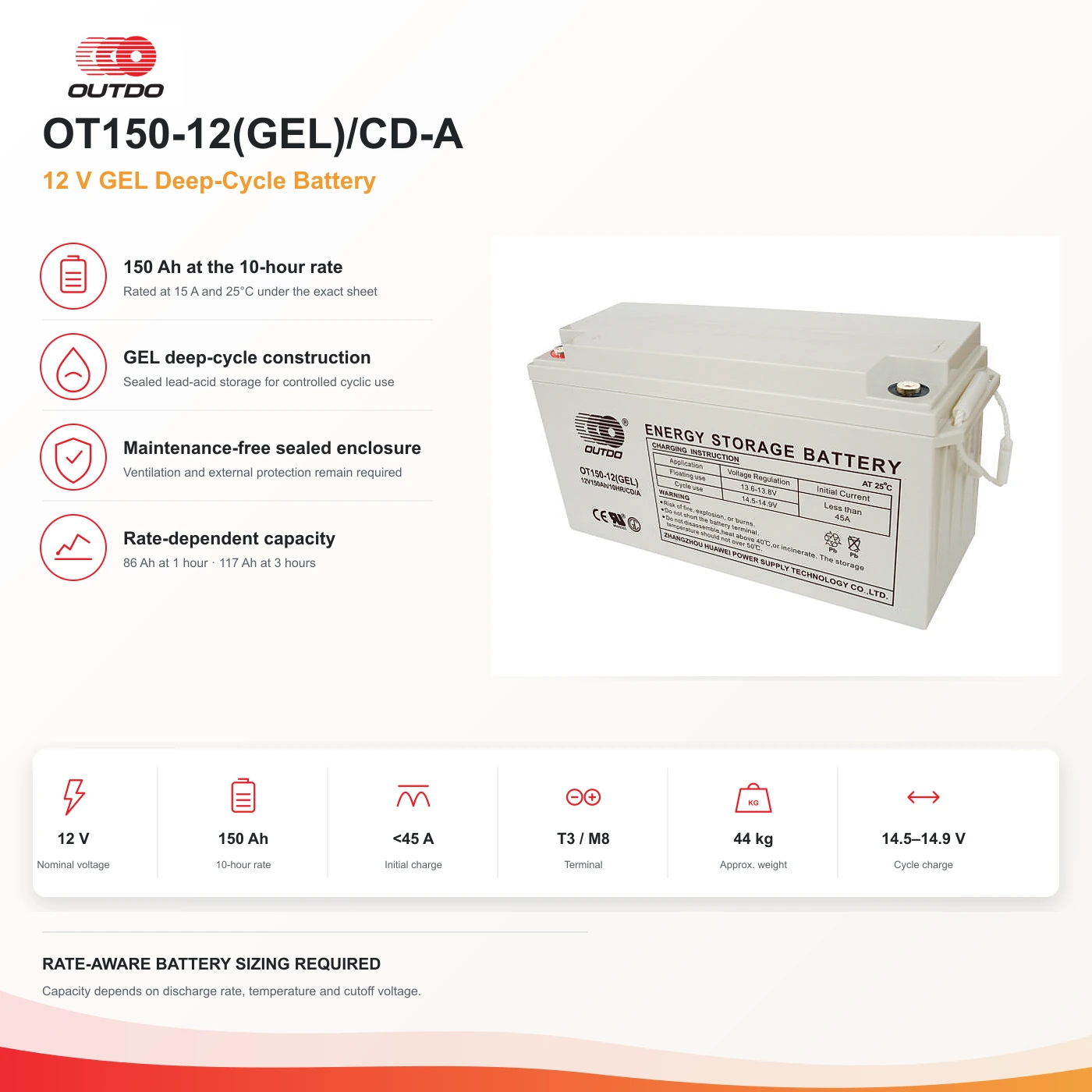

OUTDO OT150-12 GEL deep-cycle battery exact-reference angled presentation
    Angled product view · exact grey-container photograph from manufacturer sheet 302020001-00086. No unsupported second angle is published.
    OUTDOBudget

    OUTDO OT150 12 V 150 Ah GEL Deep-Cycle Battery

    Exact reference · OT150-12(GEL)/CD-A

    Rate-defined 12 V GEL storage for a deliberately designed battery bank and inverter/charger.

    Rated capacity
    150 Ah at 10 hours, 15 A and 25°C

    This is an average from the first three charge/discharge cycles, not a guaranteed minimum.

    Nominal arithmetic energy
    Approximately 1.8 kWh

    Calculated from 12 V × 150 Ah; it is not a published usable-energy figure.

    Higher-rate capacity
    86 Ah at 1 hour · 117 Ah at 3 hours

    Autonomy calculations must use the relevant discharge regime rather than the ten-hour headline.

    Charging boundary
    <45 A initial · 14.5–14.9 V cycle · 13.6–13.8 V float

    The compatible charger and temperature compensation must be configured for the battery bank.

    Physical boundary
    Approximately 44 kg · T3 / M8

    Handling, support, conductor termination and protective covers require project planning.

    Do not select this battery from 150 Ah or “12 V” alone. Confirm autonomy, discharge rate, bank voltage, matched battery count, charge settings, temperature compensation, conductors, protection, ventilation and handling.

    Pricing confirmed by quote

    The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    The OT150-12(GEL)/CD-A is a sealed lead-acid GEL battery that stores DC energy. A separately selected inverter/charger converts power, controls charging and supplies AC loads. The battery has no BMS communications and cannot operate AC equipment by itself.

    Relevant applications

    • Off-grid solar battery banks
    • Selected-load backup systems using a compatible inverter/charger
    • DC energy storage where GEL charge settings and ventilation are engineered

    Why ReneWave may shortlist it

    • Provides 150 Ah at the stated ten-hour, 15 A, 25°C test condition.
    • Publishes separate one-hour and three-hour capacity averages for rate-aware design.
    • Uses a sealed GEL deep-cycle architecture with documented charging windows.

    Built-in capabilities

    Four functions, read before the headline specifications.

    Stores DC energy

    Provides a 150 Ah nominal 12 V storage increment at the stated ten-hour test.

    This battery contains no AC conversion equipment.

    Sealed GEL construction

    Uses a GEL deep-cycle lead-acid architecture intended for controlled cyclic service.

    Sealed construction does not remove ventilation, protection or handling requirements.

    Requires a defined charge profile

    The external charger must respect the documented current, cycle and float settings.

    Temperature compensation and complete-bank behavior remain project-specific.

    Publishes rate-dependent capacity

    One-hour, three-hour and ten-hour values support a more realistic autonomy review.

    Headline amp-hours cannot be applied unchanged at every load.

    System position

    Storage behind a compatible inverter/charger.

    The inverter/charger, PV conversion, protection and AC distribution are separate equipment. No direct PV-to-battery, battery-to-AC-load or grid-export path is represented.

    PV supplies protected loads through the compatible inverter while the OUTDO battery bank remains idle.

    PV and utility sources connect through a separately selected compatible inverter and protected AC distribution. The OUTDO battery charges and discharges only through the inverter battery interface and never connects directly to PV or AC loads. PV supplies protected loads through the compatible inverter while the OUTDO battery bank remains idle.PV arrayseparate generation equipmentCompatible lead-acid inverter / chargercharge profile configuredProtected AC distributionproject-specific protectionProtected site loadsserved through the inverterOUTDO OT150-12(GEL)/CD-A12 V · 150 Ah at C10Utility supplyconditional charging sourcePV and utility sources connect through a separately selected compatible inverter and protected AC distribution. The OUTDO battery charges and discharges only through the inverter battery interface and never connects directly to PV or AC loads. PV supplies protected loads through the compatible inverter while the OUTDO battery bank remains idle.PV arrayseparate generation equipmentCompatible lead-acid inverter / chargercharge profile configuredProtected AC distributionproject-specific protectionProtected site loadsserved through the inverterOUTDO OT150-12(GEL)/CD-A12 V · 150 Ah at C10Utility supplyconditional charging sourcePV and utility sources connect through a separately selected compatible inverter and protected AC distribution. The OUTDO battery charges and discharges only through the inverter battery interface and never connects directly to PV or AC loads. PV supplies protected loads through the compatible inverter while the OUTDO battery bank remains idle.PV arrayseparate equipmentCompatible inverter / chargerseparate conversion equipmentProtected distributionseparate protectionProtected site loadsAC loadsOUTDO OT15012 V GEL batteryUtility supplyconditional source

    Electrical powerInactive / conditional

    Conceptual system position, not an installation drawing. Separate equipment and commissioning must be verified.

    Read the technical explanation

    Rate-defined 12 V GEL storage for a deliberately designed battery bank and inverter/charger.

    The OT150-12(GEL)/CD-A stores DC energy. It does not contain an inverter, solar charger, AC charger, BMS communication, transfer switch or independent AC output. The published capacity values are averages from the first three charge/discharge cycles, not guaranteed minimums, and available capacity changes with discharge rate, cutoff voltage, temperature, storage history, age and charging conditions.

    Source revision boundary

    ReneWave publishes only the values from complete manufacturer sheet 302020001-00086 for the requested historical grey-container /CD-A reference. Current OUTDO records expose neighboring CN, DS and other suffixes, but their hardware and claims are not substituted. The delivered nameplate, exact suffix, terminal arrangement and warranty record are reconfirmed in the written quotation.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Battery and capacity

    Chemistry

    Sealed GEL lead-acid

    Nominal voltage

    12 V

    Capacity at 10 hours

    150 Ah at 15 A and 25°C

    Nominal arithmetic energy

    Approximately 1.8 kWh · not usable energy

    Capacity at 3 hours

    117 Ah at 37.5 A

    Capacity at 1 hour

    86 Ah at 82.5 A

    Charging and electrical

    Initial charging current

    Less than 45 A

    Cycle charge at 25°C

    14.5–14.9 V

    Float charge at 25°C

    13.6–13.8 V

    Internal resistance

    4 mΩ fully charged at 25°C

    Terminal

    T3 · M8 connection

    Physical record

    Dimensions

    484 × 170 × 241 mm

    Weight

    Approximately 44 kg

    Container color

    Grey exact-sheet presentation; delivered variant confirmed in writing

    03 · Confirm before quotation

    Four checks before this reference is quoted.

    ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.

    1. 01

      Charge profile and bank voltage

      Confirm inverter/charger support for the complete bank voltage, GEL cycle/float settings, current limit and temperature compensation.

    2. 02

      Capacity and discharge rate

      Calculate autonomy from the applicable discharge curve, cutoff voltage, temperature, age and inverter efficiency.

    3. 03

      Bank and protection design

      Confirm matched batteries, equal current paths, conductors, fusing, isolation, terminal protection and fault-current boundaries.

    4. 04

      Installation and traceability

      Confirm ventilation, structural support, handling, delivered nameplate, source revision and written warranty record.

    04 · Documentation

    Keep the exact reference traceable.

    Published documents for this exact reference support selection and handover.

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.

    No additional equipment is published for this reference. Required accessories are confirmed during quotation.
