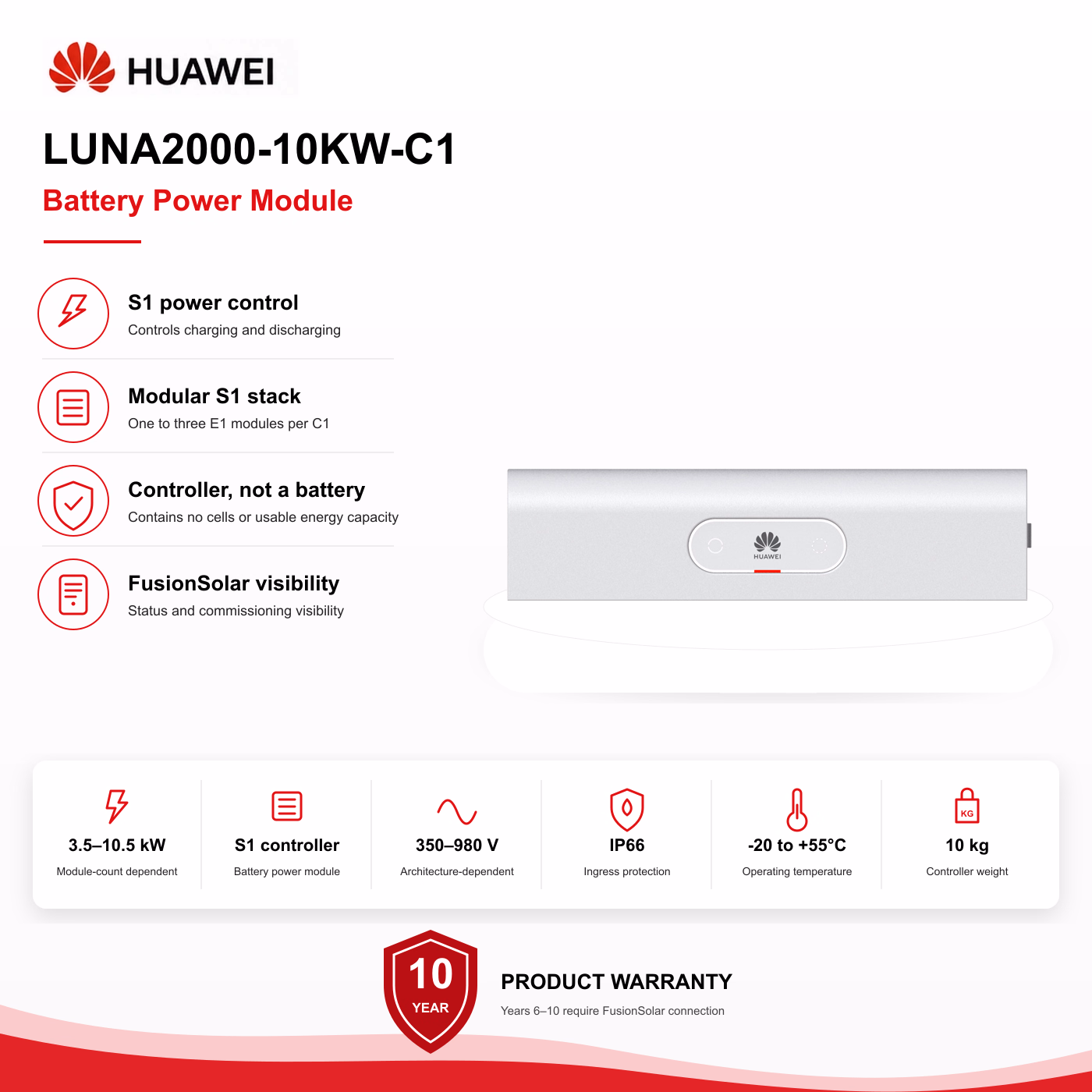

Huawei C1 S1 controller front
    S1 controller presentation using Huawei’s official enclosure. E1 battery modules are separate.
    Huawei FusionSolarPremium

    Huawei LUNA2000 S1 Battery Power Module

    For reviewed Huawei LUNA2000-S1 architectures. Exact model and firmware compatibility apply.

    Exact reference · LUNA2000-10KW-C1

    The C1 controls a Huawei S1 stack of one to three E1 battery modules. Battery modules and the compatible inverter are ordered separately.

    Product role
    S1 battery power-control module

    No battery cells or usable storage capacity inside the C1.

    Usable capacity
    No capacity inside controller

    Storage capacity comes from the separate E1 battery modules.

    Stack composition
    1 C1 + 1–3 E1 modules
    Maximum stack charge/discharge
    3.5 / 7 / 10.5 kW

    Values correspond to one, two or three modules. The inverter and operating conditions may impose lower limits.

    Voltage architecture
    350–560 V single phase · 600–980 V three phase

    These are system operating ranges, not a universal fixed battery voltage.

    Choose the complete system from the load profile, usable capacity, required power and supported inverter configuration.

    Pricing confirmed by quote

    The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    The C1 controls a Huawei S1 stack of one to three E1 battery modules. Battery modules and the compatible inverter are ordered separately.

    Relevant applications

    • Compatible Huawei residential solar and storage systems
    • S1 stacks with 5, 10 or 15 kWh using 5-E1 modules

    Why ReneWave may shortlist it

    • One to three 5-E1 modules provide 5, 10 or 15 kWh.
    • Maximum stack charge/discharge power grows from 3.5 to 7 to 10.5 kW.
    • S1 stacking connectors avoid inter-module power cables.

    Built-in capabilities

    Four functions, read before the headline specifications.

    Coordinates the S1 stack

    One C1 coordinates one to three E1 modules.

    Capacity and available output depend on the installed battery-module count.

    Module count changes output

    Maximum charge/discharge power is 3.5, 7 or 10.5 kW per stack.

    These are manufacturer maxima, subject to inverter limits and operating conditions.

    Commissioned through FusionSolar

    The supported inverter and ESS configuration provide system status and settings.

    5-E1 requires the supported ESS software and inverter firmware.

    IP66 enclosure and natural cooling

    The enclosure is rated IP66 and uses natural convection.

    Mounting clearances and temperature derating still apply; the rating does not remove installation requirements.

    System position

    Where the C1 controls the S1 stack.

    A compatible Huawei inverter connects to the C1 controller, which coordinates the E1 battery modules. PV and AC loads do not connect directly to the battery.

    Solar supplies the site through the inverter; the S1 battery is idle.

    Solar power passes through the compatible inverter. The inverter battery interface connects through the C1 controller to the E1 modules. Battery support returns through the controller and inverter. Grid charging depends on the approved settings. In the separate SmartGuard backup configuration, the grid is isolated and only the protected backup circuits receive inverter AC power. The C1 and E1 have no standalone AC output. Solar supplies the site through the inverter; the S1 battery is idle.PV arrayseparate equipmentCompatible Huawei inverterexact model + firmwareProtected AC distributionmeter + protection separateProtected site loadsserved through inverterLUNA2000 10KW-C1S1 power-control module1–3 LUNA2000 5-E1 modules5 / 10 / 15 kWh stackUtility supplydirect AC connectionSolar power passes through the compatible inverter. The inverter battery interface connects through the C1 controller to the E1 modules. Battery support returns through the controller and inverter. Grid charging depends on the approved settings. In the separate SmartGuard backup configuration, the grid is isolated and only the protected backup circuits receive inverter AC power. The C1 and E1 have no standalone AC output. Solar supplies the site through the inverter; the S1 battery is idle.PV arrayseparate equipmentCompatible Huawei inverterexact model + firmwareProtected AC distributionmeter + protection separateProtected site loadsserved through inverterLUNA2000 10KW-C1S1 power-control module1–3 LUNA2000 5-E1 modules5 / 10 / 15 kWh stackUtility supplydirect AC connectionSolar power passes through the compatible inverter. The inverter battery interface connects through the C1 controller to the E1 modules. Battery support returns through the controller and inverter. Grid charging depends on the approved settings. In the separate SmartGuard backup configuration, the grid is isolated and only the protected backup circuits receive inverter AC power. The C1 and E1 have no standalone AC output. Solar supplies the site through the inverter; the S1 battery is idle.PV arrayseparate equipmentCompatible Huawei inverterexact model + firmwareProtected AC distributionmeter + protection separateProtected site loadsserved through inverterLUNA2000 10KW-C1S1 power-control module1–3 LUNA2000 5-E1 modules5 / 10 / 15 kWh stackUtility supplydirect AC connection

    DC + / DC −Electrical powerInactive / conditional

    Conceptual system position, not an installation drawing. Separate equipment and commissioning must be verified.

    Read the technical explanation

    The C1 controls a Huawei S1 stack of one to three E1 battery modules. Battery modules and the compatible inverter are ordered separately.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Product role
    S1 battery power-control module
    Storage family
    LUNA2000-S1
    Battery modules
    1–3 E1 modules; ordered separately
    Maximum stack charge/discharge
    3.5 / 7 / 10.5 kW
    Ingress protection
    IP66
    Cooling
    Natural convection
    Operating temperature
    −20°C to +55°C; derating applies
    Dimensions · Size (W × D × H)
    590 × 255 × 150 mm
    Dimensions · Weight
    10 kg

    03 · Confirm before quotation

    Four checks before this reference is quoted.

    ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.

    1. 01

      Confirm the complete S1 configuration

      Verify inverter firmware, module count, mounting and commissioning. S0 and S1 components cannot be substituted.

    2. 02

      Match capacity and power to the load

      Check the usable capacity and inverter limits together. A single 5-E1 module is not a 10.5 kW battery stack.

    3. 03

      Confirm the installation conditions

      Check structural support, safe handling, clearances, protection and ambient temperature. Each E1 module weighs 68 kg.

    4. 04

      Confirm firmware and handover records

      Use the supported ESS and inverter versions, then confirm the serials, warranty terms and supplied package.

    04 · Documents & warranty

    Keep the exact reference traceable.

    Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.

    Manufacturer warranty reference

    10-year manufacturer product warranty under the current residential ESS policy. Years 6–10 require FusionSolar connection; the supplied contract and serialized product record govern coverage.

    Customer Care

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.

    No additional equipment is published for this reference. Required accessories are confirmed during quotation.
