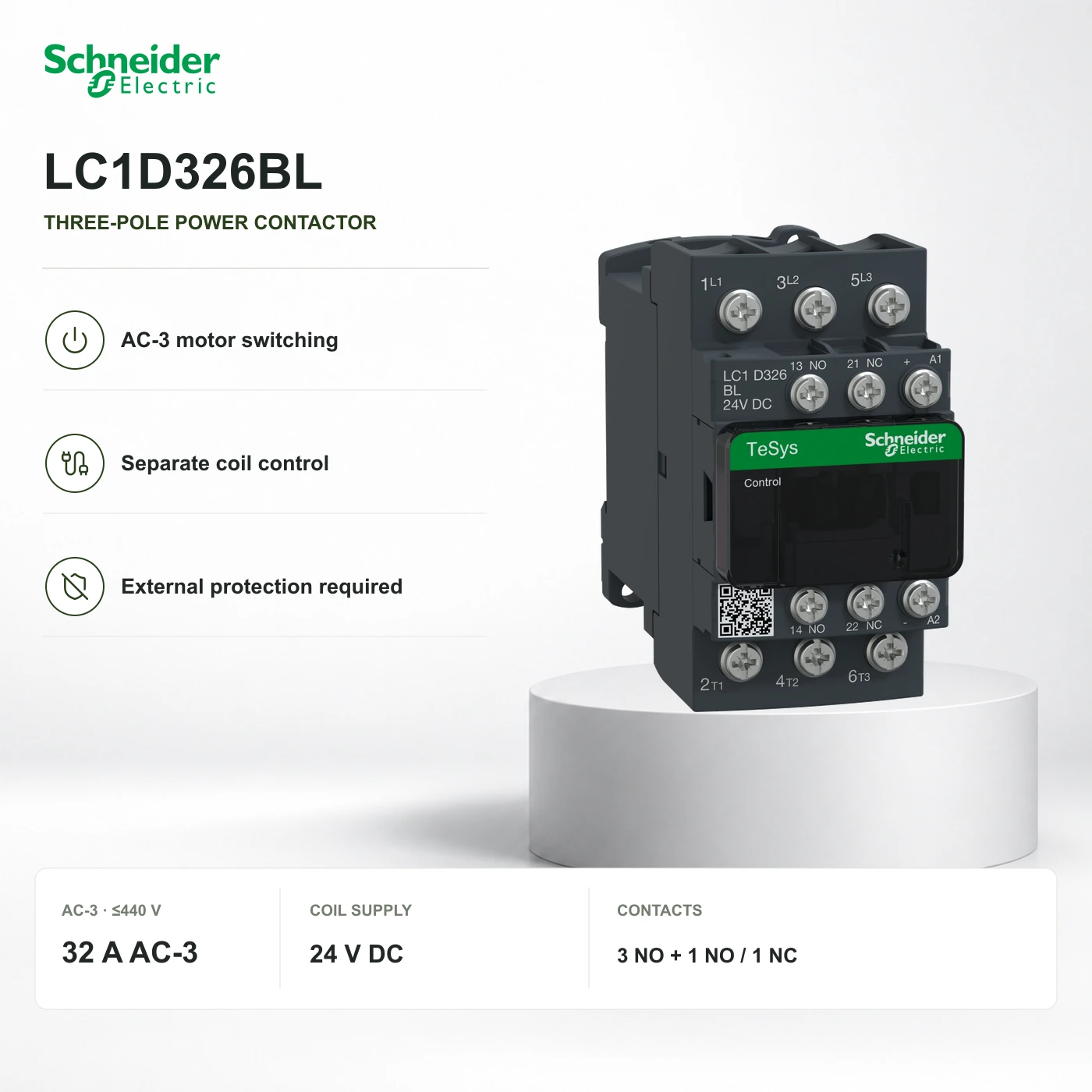

Schneider LC1D326BL · 32 A contactor
Exact reference · LC1D326BL
LC1D326BL switches three power poles: 32 A AC-3 at ≤440 V AC, with a 24 V DC coil. Preserve its exact connection and coil suffix.
- AC-3 motor rating
- 32 A · ≤440 V AC · <60 °C · IEC 60947-4-1
- AC-1 resistive rating
- 50 A · ≤440 V AC · <60 °C · IEC 60947-4-1
- Coil voltage Uc
- 24 V DC
Switches power when its coil is supplied; it is not a circuit breaker. Separate overload and short-circuit protection must be coordinated. Coil voltage is not the power-circuit voltage.
Pricing confirmed by quote
Quote confirms reference and commercial terms; installation selection remains the installer’s responsibility.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
LC1D326BL switches three power poles: 32 A AC-3 at ≤440 V AC, with a 24 V DC coil. Preserve its exact connection and coil suffix.
Relevant applications
- Motor switching or protection in a separately coordinated equipment circuit.
Why ReneWave may shortlist it
- LC1D326BL switches three power poles: 32 A AC-3 at ≤440 V AC, with a 24 V DC coil. Preserve its exact connection and coil suffix.
System position
Separate coil control and switched motor power.
Switches power when its coil is supplied; it is not a circuit breaker. Separate overload and short-circuit protection must be coordinated. Coil voltage is not the power-circuit voltage.
The unsupplied coil leaves the three normally open power contacts open. Upstream equipment can remain live.
Read the technical explanation
Switches power when its coil is supplied; it is not a circuit breaker. Separate overload and short-circuit protection must be coordinated. Coil voltage is not the power-circuit voltage.
02 · Specifications
Ratings, dimensions and practical consequence.
Device identity
- Schneider reference
LC1D326BL
- Protection function
Contactor
- Pole arrangement
3 NO + auxiliaries
Electrical ratings
- AC-3 motor rating
32 A · ≤440 V AC · <60 °C · IEC 60947-4-1
- AC-1 resistive rating
50 A · ≤440 V AC · <60 °C · IEC 60947-4-1
- Coil voltage Uc
24 V DC
- Coil type
DC low consumption
- Power contacts
3 NO
- Auxiliary contacts
1 NO + 1 NC
Mounting and connections
- Mounting and connections
Ring-lug terminals on power and control circuits; not the screw-clamp variant.
- Installation boundary
Mounting and conductor preparation follow the exact manufacturer drawing and terminal table; no accessories are assumed included.
03 · Selection points
Four practical selection points.
Select by the circuit duty and exact manufacturer reference.
- 01
Load and utilization category
AC-3: 32 A at ≤440 V AC. AC-1: 50 A at ≤440 V AC, below 60 °C. These are different utilization categories, not interchangeable current ratings.
- 02
Coil supply
Supply the coil with 24 V DC, not the load voltage. Low-consumption DC coil.
- 03
Power and auxiliary contacts
Three normally open power contacts; one NO and one NC auxiliary contact. Auxiliary contacts carry control/signalling duty, not the motor load.
- 04
Mounting and connections
Ring-lug terminals on power and control circuits; not the screw-clamp variant.
04 · Documentation
Keep the exact reference traceable.
Published documents for this exact reference support selection and handover.
05 · Complete the system
Accessories and adjacent equipment, in one request.
Separate equipment is selected for the installation; no automatic companions are added to your request.
No automatic companion selection. Separate protection and accessories are chosen for the installation.
