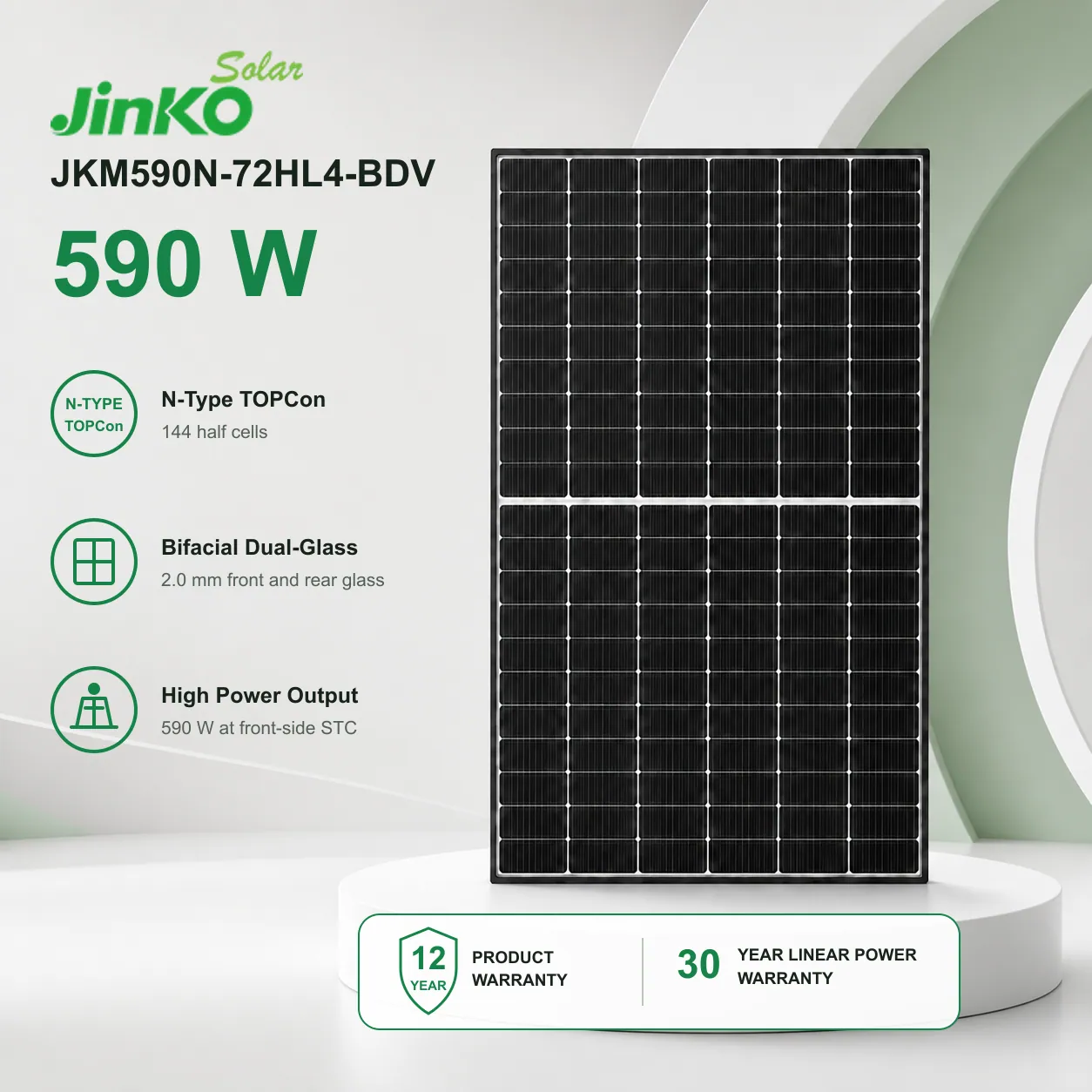

Front presentation of the JinkoSolar JKM590N-72HL4-BDV bifacial module
    JKM590N-72HL4-BDV · front view.
    JinkoSolarPremium

    JinkoSolar Tiger Neo Bifacial 590 W

    Exact reference · JKM590N-72HL4-BDV

    High output in a commercial-module format. The 590 W rating and 22.84% efficiency can use array area effectively, but the usable module count, structure, access, string current and conversion equipment decide whether it fits the project.

    Rated output
    590 W

    Front-side output at standard test conditions; annual site energy is modelled separately.

    Module efficiency
    22.84%

    Useful when the complete module format fits the usable array area.

    Operating point
    44.17 V · 13.36 A

    The inverter or MPPT and parallel-string design must accept the resulting voltage and current.

    Module format
    2278 x 1134 mm · 31.0 kg

    Structure, access, lifting and installer handling require explicit planning.

    Rear-side response
    80% +/-5% bifaciality

    Rear-side production depends on real irradiance and is not guaranteed by the nameplate.

    Do not choose 590 W from headline power alone. Compare usable roof coverage, total installed DC capacity, handling and structure, string voltage and current, connector variant, and the modelled rear-side conditions.

    Pricing confirmed by quote

    The written quote confirms the exact reference, required accessories, compatibility, delivery and commercial terms.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    The JKM590N-72HL4-BDV converts front and rear irradiance into DC electricity and operates as part of a designed module string. Its 590 W rating is measured from the front side at standard test conditions, not a promise of annual production. ReneWave places the exact module into a complete mounting, string, protection and conversion design before quotation.

    Relevant applications

    • Commercial and industrial roofs where the 2278 x 1134 mm format fits the usable layout
    • Ground-mounted photovoltaic arrays designed around the exact string voltage and current
    • Bifacial layouts where rear irradiance can be modelled from real geometry and surfaces

    Why ReneWave may shortlist it

    • 590 W front-side STC output combines with 22.84% efficiency in a narrower format than some ultra-high-power modules.
    • N-type TOPCon bifacial dual-glass construction supports front and separately modelled rear-side production.
    • The exact reference has a current official datasheet and applicable installation and warranty records.
    • Its electrical and mechanical data are specific enough to retain a traceable module, string and warranty file.

    What changes in practice

    • The 1.134 m width can produce a better usable-roof layout than a wider module even when another panel has a higher individual wattage.
    • The 31 kg module still requires planned access, lifting and handling on site.
    • The 13.36 A operating current and 14.07 A short-circuit current must be checked against every inverter or MPPT input and parallel-string arrangement.

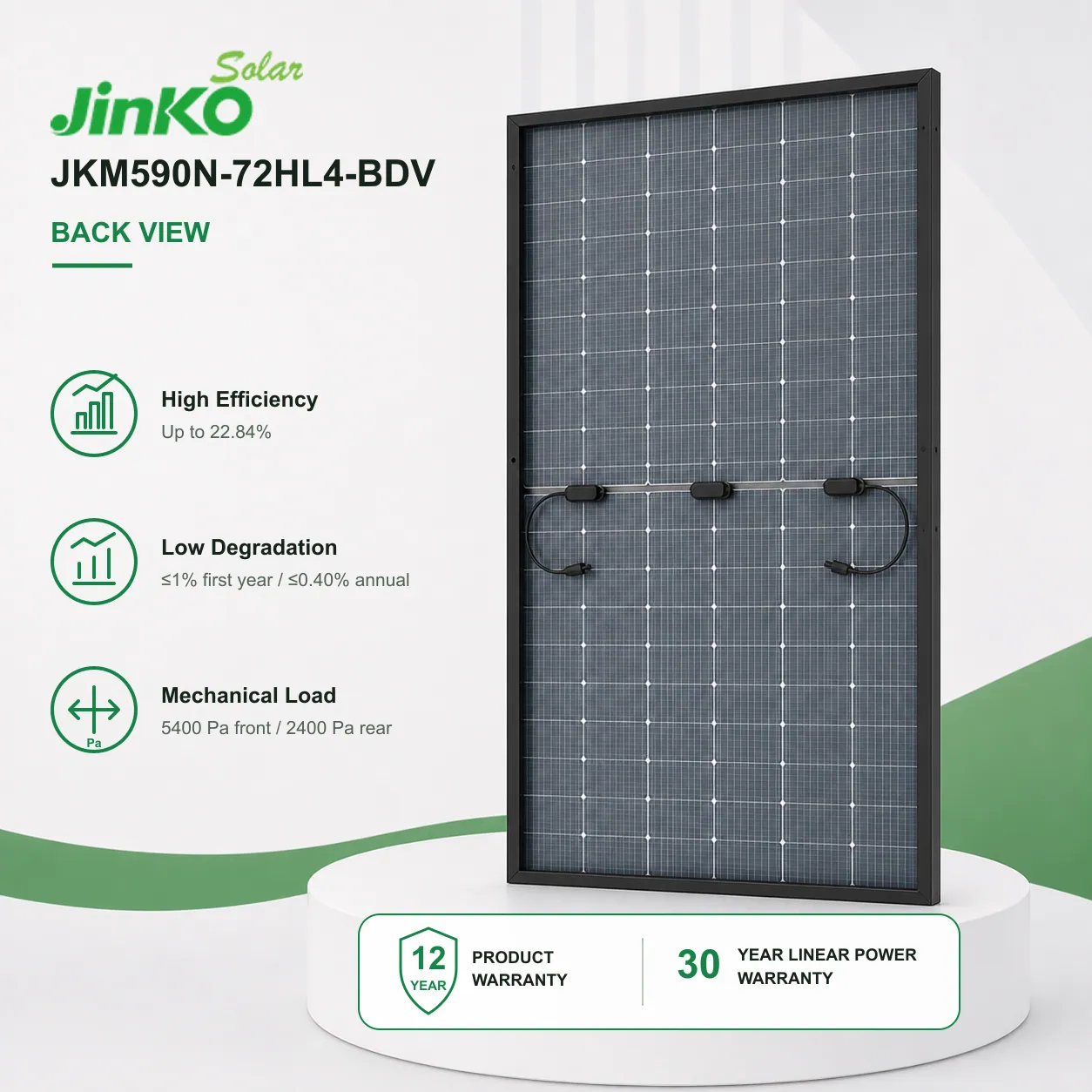

    • Rear-side energy contributes only when the actual mounting and surrounding surfaces allow irradiance to reach the rear glass.

    System position

    From sunlight to useful energy.

    String design, conversion equipment, protection and optional storage are confirmed for the complete project.

    The module supplies DC. Separate compatible conversion equipment serves the protected loads.

    Front-side sunlight and separately modelled rear irradiance reach a JinkoSolar JKM590N-72HL4-BDV module string. The string supplies a designed DC isolation and protection path before a compatible inverter or MPPT conversion stage. That conversion stage supplies protected site loads. Optional storage connects only through a separately validated architecture after conversion. The module supplies DC. Separate compatible conversion equipment serves the protected loads.Front + rear irradianceSite-modelled inputJinko Tiger Neo590 W · bifacial TOPConDC isolation and protectionSeparate DC equipmentCompatible inverter / MPPTExact limits verifiedProtected site loadsProtected site demandBattery storageOptional, validated separatelyFront-side sunlight and separately modelled rear irradiance reach a JinkoSolar JKM590N-72HL4-BDV module string. The string supplies a designed DC isolation and protection path before a compatible inverter or MPPT conversion stage. That conversion stage supplies protected site loads. Optional storage connects only through a separately validated architecture after conversion. The module supplies DC. Separate compatible conversion equipment serves the protected loads.Front + rear irradianceSite-modelled inputJinko Tiger Neo590 W · bifacial TOPConDC isolation and protectionSeparate DC equipmentCompatible inverter / MPPTExact limits verifiedProtected site loadsProtected site demandBattery storageOptional, validated separatelyFront-side sunlight and separately modelled rear irradiance reach a JinkoSolar JKM590N-72HL4-BDV module string. The string supplies a designed DC isolation and protection path before a compatible inverter or MPPT conversion stage. That conversion stage supplies protected site loads. Optional storage connects only through a separately validated architecture after conversion. The module supplies DC. Separate compatible conversion equipment serves the protected loads.Front + rear irradianceSite-modelled inputJinko Tiger Neo590 W · bifacial TOPConDC isolation and protectionSeparate DC equipmentCompatible inverter / MPPTExact limits verifiedProtected site loadsProtected site demandBattery storageOptional, validated separately

    IrradianceElectrical powerInactive / conditional

    Conceptual system position, not an installation drawing. Separate equipment and commissioning must be verified.

    Read the technical explanation

    The JKM590N-72HL4-BDV is the 590 W member of JinkoSolar's Tiger Neo bifacial dual-glass family. It produces DC electricity from front and rear irradiance and must be integrated into a designed string, mounting, protection and conversion architecture.

    Its 22.84% efficiency and 2278 x 1134 mm format can use commercial-roof area effectively, but headline watts do not decide the array. ReneWave confirms usable coverage, structure, access, cold string voltage, current limits, connector variant and rear-side assumptions before the exact reference enters a proposal.

    The retained project record includes the approved datasheet, string layout, protection basis, serial and batch evidence, and the applicable warranty pack.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Electrical ratings at front-side STC

    Nominal power

    590 W

    Module efficiency

    22.84%

    Maximum-power point

    44.17 V · 13.36 A

    Open circuit / short circuit

    52.90 V · 14.07 A

    Cold-voltage and current multipliers are applied during string and protection design.

    Power tolerance

    0 to +3%

    Maximum system voltage

    1500 V DC

    Maximum series fuse

    30 A

    Construction and handling

    Cell technology

    N-type monocrystalline TOPCon · 144 half cells

    Construction

    Framed bifacial dual-glass · 2.0 mm front and rear glass

    Dimensions

    2278 x 1134 x 30 mm

    Weight

    31.0 kg

    Junction box

    IP68

    Connector

    JK03M, MC4 or another documented supplied variant

    The delivered connector and mating path are confirmed before quotation.

    Published test loads

    5400 Pa front · 2400 Pa rear

    The approved mounting configuration and project design loads still control.

    Thermal and operating record

    Operating temperature

    -40°C to +70°C

    Nominal module operating temperature

    45 +/-2°C

    Power temperature coefficient

    -0.29% / °C

    Voltage temperature coefficient

    -0.25% / °C

    Current temperature coefficient

    +0.045% / °C

    Protection class

    Class II

    Bifacial and warranty basis

    Power bifaciality

    80% +/-5%

    Rear-side gain

    Project-modelled

    Mounting height, tilt, albedo, row spacing and structure shading determine usable gain.

    Published warranty

    12-year product · 30-year linear performance

    The exact model, market, sale date, installation conditions and delivered warranty document control.

    03 · Confirm before quotation

    Four checks before this reference is quoted.

    ReneWave confirms the electrical context, connected equipment, installation conditions and configuration path before the exact reference enters a written quote.

    1. 01

      Array and structure

      Confirm usable area, shading, orientation, access, module count, clamp zones, structure and project design loads.

    2. 02

      Inverter and strings

      Check cold Voc, operating-voltage window, 13.36 A Imp, 14.07 A Isc, parallel strings and DC/AC ratio against exact equipment.

    3. 03

      Installation path

      Confirm the supplied connector, conductors, isolation, protection, earthing and mounting instructions.

    4. 04

      Traceability

      Retain the complete suffix, serial and batch evidence, approved datasheet, string layout and applicable warranty pack.

    04 · Documents & warranty

    Keep the exact reference traceable.

    Documents shown here support selection and handover. The accepted order and exact manufacturer warranty document control.

    Manufacturer warranty reference

    12-year product · 30-year linear performance

    • Published first-year degradation does not exceed 1%.
    • Published annual degradation after year one does not exceed 0.40%.
    • Published warranted output reaches 87.4% at year 30.
    Customer Care

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Select relevant companions now. ReneWave still verifies quantities and compatibility before they appear in the written quote.

    No additional equipment is published for this reference. Required accessories are confirmed during quotation.
