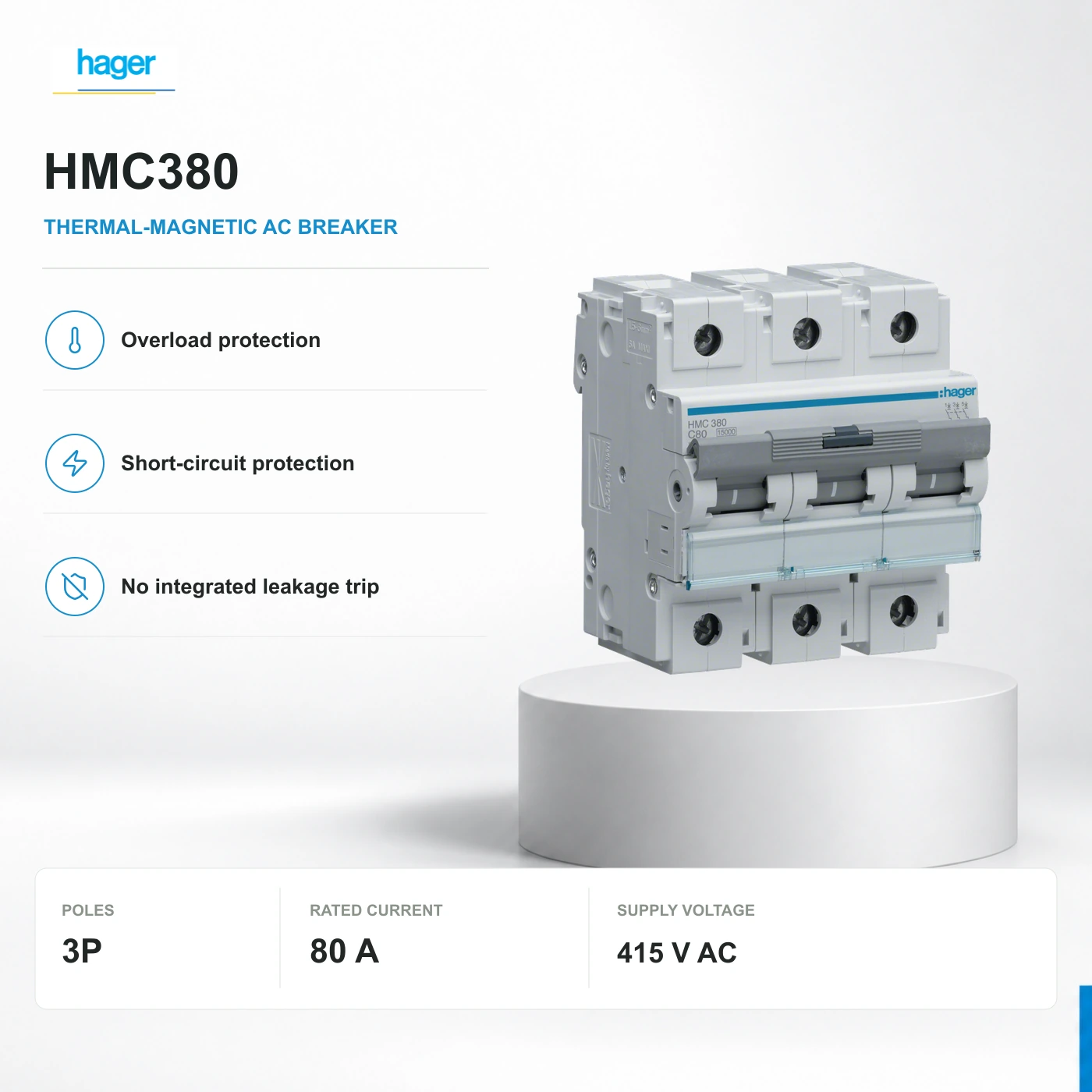

Hager HMC380 · 3P · 80 A
Exact reference · HMC380
HMC380 protects 3 poles against overloads and short circuits, with a C curve and 80 A rating. This is a modular DIN-rail breaker, not a molded-case compact breaker.
- Protection function
- Thermal-magnetic breaker
- Pole arrangement
- 3P
- Rated current
- 80 A
Overload and short-circuit protection, without integrated residual-current protection. Select separate leakage protection where required.
Pricing confirmed by quote
Quote confirms reference and commercial terms; installation selection remains the installer’s responsibility.
Availability confirmed in your written quote
1
01 · Product role
What this product does in the system.
HMC380 protects 3 poles against overloads and short circuits, with a C curve and 80 A rating. This is a modular DIN-rail breaker, not a molded-case compact breaker.
Relevant applications
- Selected commercial distribution or equipment circuits, matched to the documented supply and protection function.
Why ReneWave may shortlist it
- HMC380 protects 3 poles against overloads and short circuits, with a C curve and 80 A rating. This is a modular DIN-rail breaker, not a molded-case compact breaker.
System position
AC protection: conceptual single-line view.
Overload and short-circuit protection, without integrated residual-current protection. Select separate leakage protection where required.
The closed device supplies L1 / L2 / L3. Downstream branch protection remains separate. PE bypasses every switched pole.
Read the technical explanation
Overload and short-circuit protection, without integrated residual-current protection. Select separate leakage protection where required.
02 · Specifications
Ratings, dimensions and practical consequence.
Device identity
- Hager reference
HMC380
- Manufacturer EAN
3250613230197
- Protection function
Thermal-magnetic breaker
- Pole arrangement
3P
- Rated current
80 A
- Rated operational voltage
415 V AC
- Trip curve
C
- Neutral
L1, L2 and L3 are switched together. Neutral is not routed through this three-pole device.
Electrical ratings
- Icn · IEC 60898-1
15 kA · 400 V AC · IEC 60898-1
- Icu · IEC 60947-2
15 kA · 400 V AC · IEC 60947-2
- Ui
500 V
- Uimp
6 kV
- Frequency
50–60 Hz
- IP
IP20
Mounting and connections
- Modules / width
4.5 / 80 mm
- Dimensions H × W × D
90 × 80 × 70 mm
- Terminal torque
3.6 Nm
03 · Selection points
Four practical selection points.
Choose by circuit function, conductors and documented electrical limits.
- 01
Pole arrangement
L1, L2 and L3 are switched together. Neutral is not routed through this three-pole device.
- 02
Current and protection function
Curve C: match starting currents and conductor protection to the 80 A rating. Ambient temperature affects the available continuous current; use the Hager derating table.
- 03
Voltage and fault capacity
Only the consistent 400 V capacities are published. Hager records disagree at 230 V; that value and voltage-unspecified Ics values are withheld. Icn and Icu follow different standards.
- 04
Mounting and connections
DIN-rail mounting, 4.5 modules / 80 mm wide. Follow the manufacturer's terminals and installation instructions. The nominal top/bottom terminal torque is 3.6 Nm; the generic 3.5–5 Nm field is not a universal setting.
04 · Documentation
Keep the exact reference traceable.
Published documents for this exact reference support selection and handover.
