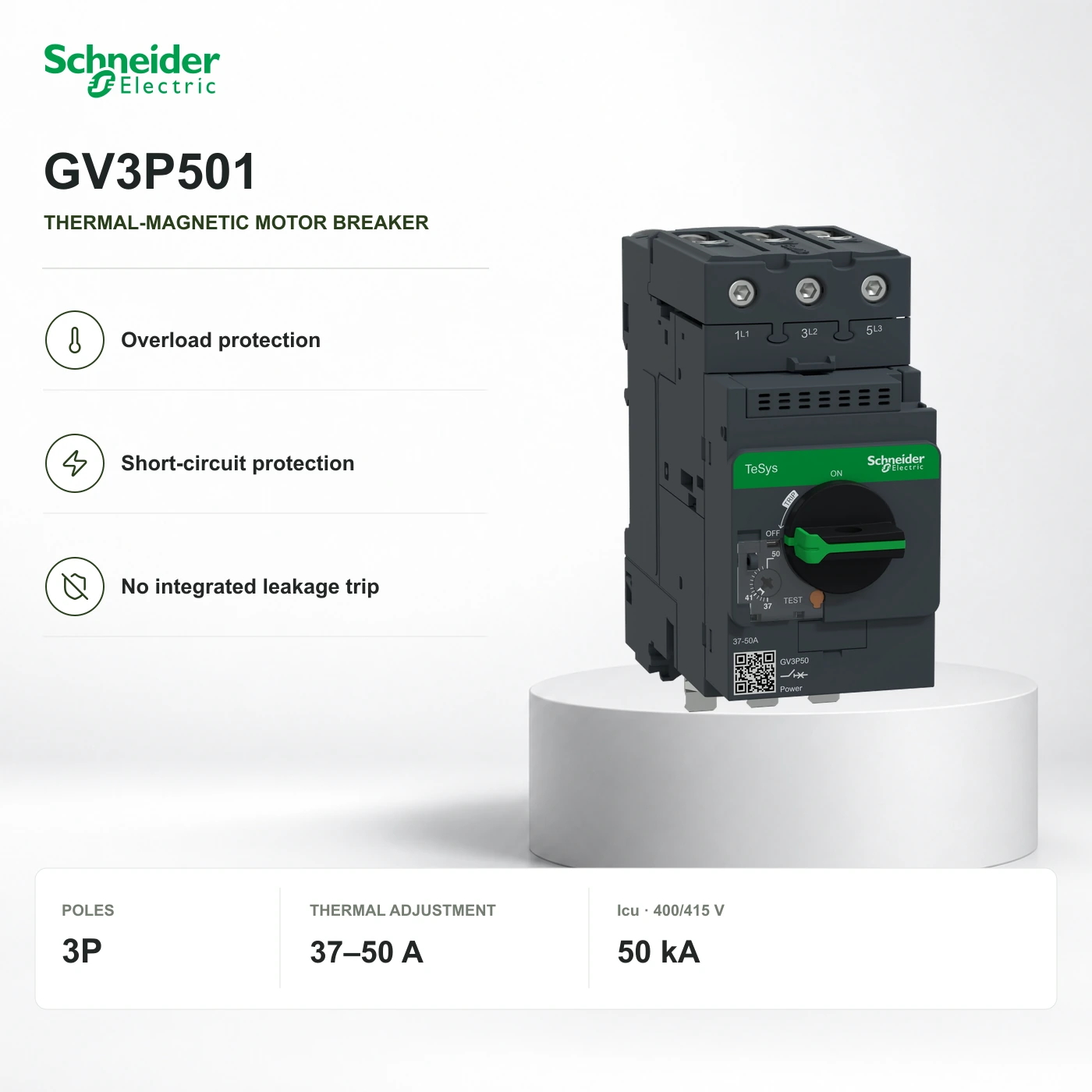

    Schneider GV3P501 · motor breaker

    Exact reference · GV3P501

    TeSys GV3P GV3P501: 3 protected poles, thermal adjustment 37–50 A. Thermal overload and magnetic short-circuit protection.

    Rated current / adjustment
    37–50 A
    Magnetic trip threshold
    700 A
    Icu · IEC/EN 60947-2
    50 kA · 400/415 V AC · 50/60 Hz

    Protects against overload and short circuit. No integrated residual-current protection. Choose conductors, fault capacity and upstream/downstream coordination for the installation.

    Pricing confirmed by quote

    Quote confirms reference and commercial terms; installation selection remains the installer’s responsibility.

    Availability confirmed in your written quote

    1

    01 · Product role

    What this product does in the system.

    TeSys GV3P GV3P501: 3 protected poles, thermal adjustment 37–50 A. Thermal overload and magnetic short-circuit protection.

    Relevant applications

    • Motor switching or protection in a separately coordinated equipment circuit.

    Why ReneWave may shortlist it

    • TeSys GV3P GV3P501: 3 protected poles, thermal adjustment 37–50 A. Thermal overload and magnetic short-circuit protection.

    System position

    AC protection: conceptual single-line view.

    Protects against overload and short circuit. No integrated residual-current protection. Choose conductors, fault capacity and upstream/downstream coordination for the installation.

    Supply reaches the selected circuit through the closed breaker. PE remains connected outside the device.

    TeSys GV3P GV3P501: 3 protected poles, thermal adjustment 37–50 A. Thermal overload and magnetic short-circuit protection. Protects against overload and short circuit. No integrated residual-current protection. Choose conductors, fault capacity and upstream/downstream coordination for the installation. Supply reaches the selected circuit through the closed breaker. PE remains connected outside the device.AC circuit supplyL1 / L2 / L3GV3P501 Motor circuit breaker37–50 A · 3PSeparate motor controlStarter / coil supply selectedThree-phase motorLoad / conductors selectedTeSys GV3P GV3P501: 3 protected poles, thermal adjustment 37–50 A. Thermal overload and magnetic short-circuit protection. Protects against overload and short circuit. No integrated residual-current protection. Choose conductors, fault capacity and upstream/downstream coordination for the installation. Supply reaches the selected circuit through the closed breaker. PE remains connected outside the device.AC circuit supplyL1 / L2 / L3GV3P501 Motor circuit breaker37–50 A · 3PSeparate motor controlStarter / coil supply selectedThree-phase motorLoad / conductors selectedTeSys GV3P GV3P501: 3 protected poles, thermal adjustment 37–50 A. Thermal overload and magnetic short-circuit protection. Protects against overload and short circuit. No integrated residual-current protection. Choose conductors, fault capacity and upstream/downstream coordination for the installation. Supply reaches the selected circuit through the closed breaker. PE remains connected outside the device.AC circuit supplyL1 / L2 / L3GV3P501 Motor circuit breaker37–50 A · 3PSeparate motor controlStarter / coil supply selectedThree-phase motorLoad / conductors selected

    Electrical powerPE · Always connected, never switchedInactive / conditional

    Conceptual system position, not an installation drawing. Separate equipment and commissioning must be verified.

    Read the technical explanation

    Protects against overload and short circuit. No integrated residual-current protection. Choose conductors, fault capacity and upstream/downstream coordination for the installation.

    02 · Specifications

    Ratings, dimensions and practical consequence.

    Device identity

    Schneider reference

    GV3P501

    Protection function

    Motor circuit breaker

    Pole arrangement

    3P

    Electrical ratings

    Rated current / adjustment

    37–50 A

    Magnetic trip threshold

    700 A

    Icu · IEC/EN 60947-2

    50 kA · 400/415 V AC · 50/60 Hz

    Ics · IEC/EN 60947-2

    100% × Icu · 400/415 V AC · 50/60 Hz

    Mounting and connections

    Mounting and connections

    EverLink BTR, one terminal block. Keep the final 1 suffix; do not substitute the two-block reference.

    Installation boundary

    Mounting and conductor preparation follow the exact manufacturer drawing and terminal table; no accessories are assumed included.

    03 · Selection points

    Four practical selection points.

    Select by the circuit duty and exact manufacturer reference.

    1. 01

      Pole arrangement

      3 switched and protected poles. PE remains outside the switching path. Assign any neutral conductor only according to the installation design.

    2. 02

      Current and protection function

      Match the thermal adjustment to the motor nameplate current and operating duty, not a C-curve distribution rating.

    3. 03

      Voltage and fault capacity

      Icn, Icu and Ics are different ratings. Values below are qualified by voltage, frequency and standard; other voltages follow the datasheet.

    4. 04

      Mounting and connections

      EverLink BTR, one terminal block. Keep the final 1 suffix; do not substitute the two-block reference.

    04 · Documentation

    Keep the exact reference traceable.

    Published documents for this exact reference support selection and handover.

    05 · Complete the system

    Accessories and adjacent equipment, in one request.

    Separate equipment is selected for the installation; no automatic companions are added to your request.

    No automatic companion selection. Separate protection and accessories are chosen for the installation.
