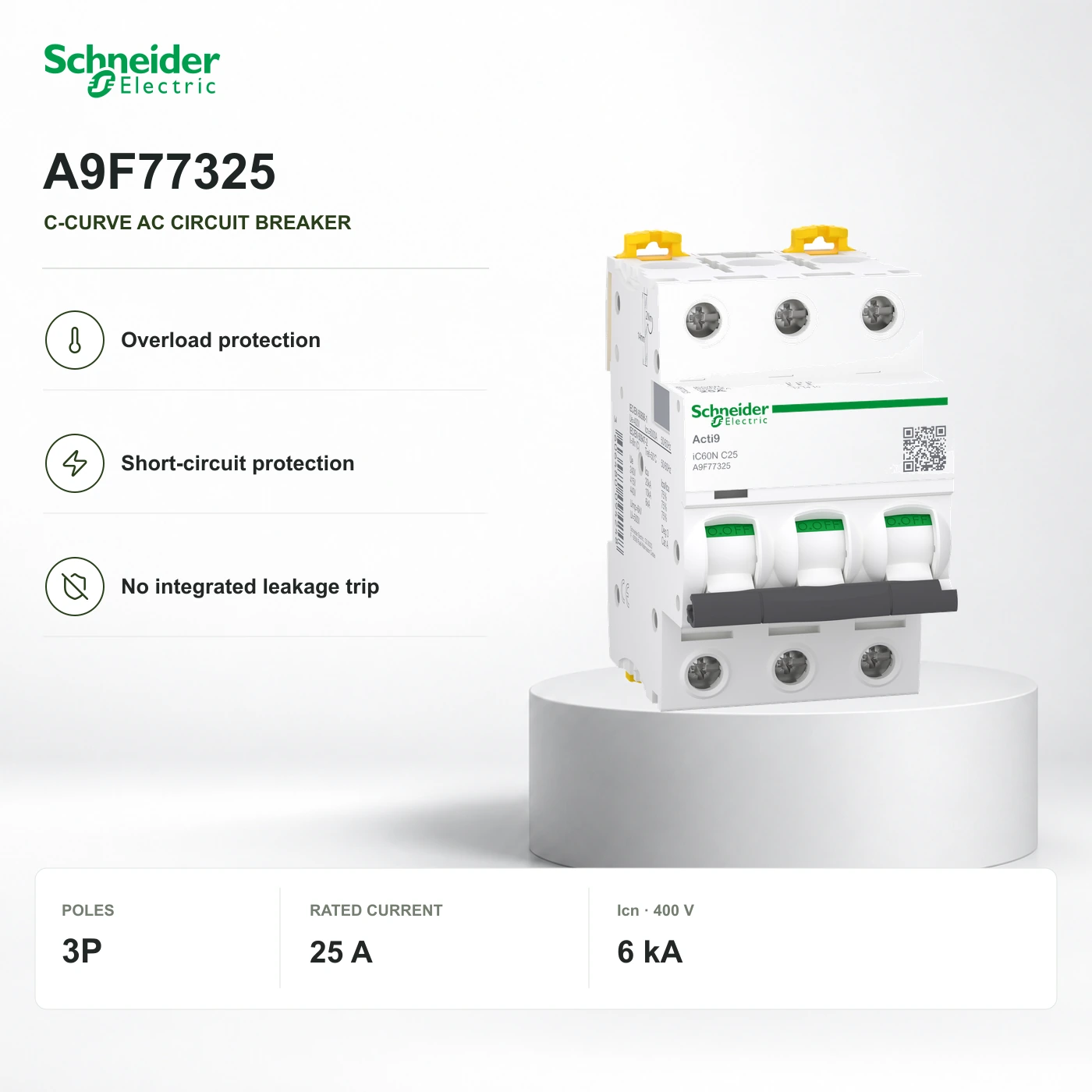

Schneider A9F77325 · 3P C-curve breaker
Exact reference · A9F77325
Acti9 iC60N A9F77325: 3 protected poles, 25 A C curve. Thermal overload and magnetic short-circuit protection.
- Rated current / adjustment
- 25 A
- Trip characteristic
- C curve
- Icn · IEC/EN 60898-1
- 6 kA · 400 V AC · 50/60 Hz
Protects against overload and short circuit. No integrated residual-current protection. Choose conductors, fault capacity and upstream/downstream coordination for the installation.
Pricing confirmed by quote
Quote confirms reference and commercial terms; installation selection remains the installer’s responsibility.
Availability confirmed in your written quote
01 · Product role
What this product does in the system.
Acti9 iC60N A9F77325: 3 protected poles, 25 A C curve. Thermal overload and magnetic short-circuit protection.
Relevant applications
- Selected commercial distribution circuits with documented conductors and fault level.
Why ReneWave may shortlist it
- Acti9 iC60N A9F77325: 3 protected poles, 25 A C curve. Thermal overload and magnetic short-circuit protection.
System position
AC protection: conceptual single-line view.
Protects against overload and short circuit. No integrated residual-current protection. Choose conductors, fault capacity and upstream/downstream coordination for the installation.
Supply reaches the selected circuit through the closed breaker. PE remains connected outside the device.
Read the technical explanation
Protects against overload and short circuit. No integrated residual-current protection. Choose conductors, fault capacity and upstream/downstream coordination for the installation.
02 · Specifications
Ratings, dimensions and practical consequence.
Device identity
- Schneider reference
A9F77325
- Protection function
Thermal-magnetic breaker
- Pole arrangement
3P
Electrical ratings
- Rated current / adjustment
25 A
- Trip characteristic
C curve
- Icn · IEC/EN 60898-1
6 kA · 400 V AC · 50/60 Hz
- Icu · IEC/EN 60947-2
10 kA · 380–415 V AC · 50/60 Hz
- Ics · IEC/EN 60947-2
7.5 kA · 380–415 V AC · 50/60 Hz
Mounting and connections
- Mounting and connections
Screw-clamp terminals; conductor size and torque follow the exact datasheet.
- Installation boundary
Mounting and conductor preparation follow the exact manufacturer drawing and terminal table; no accessories are assumed included.
03 · Selection points
Four practical selection points.
Select by the circuit duty and exact manufacturer reference.
- 01

Pole arrangement
3 switched and protected poles. PE remains outside the switching path. Assign any neutral conductor only according to the installation design.
- 02

Current and protection function
Protects against overload and short circuit. No integrated residual-current protection. Choose conductors, fault capacity and upstream/downstream coordination for the installation.
- 03

Voltage and fault capacity
Icn, Icu and Ics are different ratings. Values below are qualified by voltage, frequency and standard; other voltages follow the datasheet.
- 04

Mounting and connections
Screw-clamp terminals; conductor size and torque follow the exact datasheet.
04 · Documentation
Keep the exact reference traceable.
Published documents for this exact reference support selection and handover.
05 · Complete the system
Accessories and adjacent equipment, in one request.
Separate equipment is selected for the installation; no automatic companions are added to your request.
No automatic companion selection. Separate protection and accessories are chosen for the installation.
